AutomationDirect F2-08AD-1 Analog Input Module

F2-08AD-1
F2-08AD-1

AutomationDirect F2-08AD-1 Analog Input Module

AutomationDirect F2-08AD-1 Analog Input Module

  • Item NO.:

    F2-08AD-1

  • Payment:

    T/T

  • Price:

    $295

  • Product Origin:

    CHINA

  • Color:

    NEW

  • Product weight:

    0.02KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                                                                  • https://images.openai.com/static-rsc-4/iFZPoN3ojiPlQpD_HiiwsXPuk9EuCPdsUwEk0W7Hz3JXuv7pkbVzUgo0Gdjigr4nJMwhKFMpINjKdktF5Rg6G-GJCwGl66bgqv5TngZ-H9HqdWltZY0IsdRsRDLVrbHJB5PmvYZ1sel8yUHqfXegHjYI65ZIOqhmzUJZu76v9dyLNQQReBGTh3OLSmChh0wm?purpose=fullsize

                                                                                                  • Product Overview

                                                                                                    The AutomationDirect F2-08AD-1 is a DirectLOGIC DL205 8-channel analog current input module designed to receive industrial 4–20 mA signals from transmitters and sensors. It provides 12-bit resolution, optical isolation, and built-in precision resistors for current-loop protection.

                                                                                                    Key Technical Specifications

                                                                                                    Parameter Specification
                                                                                                    Brand AutomationDirect
                                                                                                    Series DirectLOGIC DL205
                                                                                                    Model F2-08AD-1
                                                                                                    Product Type Analog Input Module
                                                                                                    Number of Channels 8
                                                                                                    Input Type 4–20 mA Current
                                                                                                    Configuration Single-ended, 1 common
                                                                                                    Resolution 12-bit (1 in 4096)
                                                                                                    Input Impedance 250 Ω ±0.1%, 1/2 W
                                                                                                    Data Acquisition Time 3 ms/channel
                                                                                                    Low-Pass Filtering -3 dB @ 200 Hz
                                                                                                    Crosstalk -70 dB, maximum 1 count
                                                                                                    External Power 10–30 VDC
                                                                                                    PLC Power 5 VDC from PLC base
                                                                                                    Operating Temperature 0–60°C
                                                                                                    Storage Temperature -20–70°C
                                                                                                    Humidity 5–95% RH, non-condensing
                                                                                                    I/O Points Required 16 discrete input points
                                                                                                    Country of Origin Taiwan
                                                                                                    HS Code 8537.10



                                                                                                    Advantages & Features

                                                                                                    • 8-channel 4–20 mA analog input
                                                                                                    • 12-bit resolution for accurate signal measurement
                                                                                                    • Optically isolated analog inputs
                                                                                                    • Built-in 250 Ω precision resistors
                                                                                                    • Removable terminal block for easy maintenance
                                                                                                    • Built-in broken-transmitter detection
                                                                                                    • Supports reading all 8 channels in one scan with compatible DL205 CPUs
                                                                                                    • Designed for reliable industrial process monitoring

                                                                                                    Typical Applications

                                                                                                    • Process instrumentation
                                                                                                    • Pressure and flow monitoring
                                                                                                    • Temperature and level transmitters
                                                                                                    • Factory automation
                                                                                                    • PLC-based process control
                                                                                                    • Chemical and manufacturing equipment
                                                                                                    • HVAC and building automation
                                                                                                    • Industrial monitoring systems

                                                                                                    Important Notes

                                                                                                    • Requires an external 10–30 VDC power supply for field-side operation.
                                                                                                    • The module accepts 4–20 mA current signals only; it is not a voltage-input module.
                                                                                                    • Verify transmitter wiring and loop polarity before installation.
                                                                                                    • The F2-08AD-1 appears as a 16-point discrete input module to the PLC.
                                                                                                    • Compatibility and firmware requirements should be checked for the specific DL205 CPU.
                                                                                                    • AutomationDirect notes that the module was redesigned in 2009; older and newer versions have some specification differences.
                                                                                              •

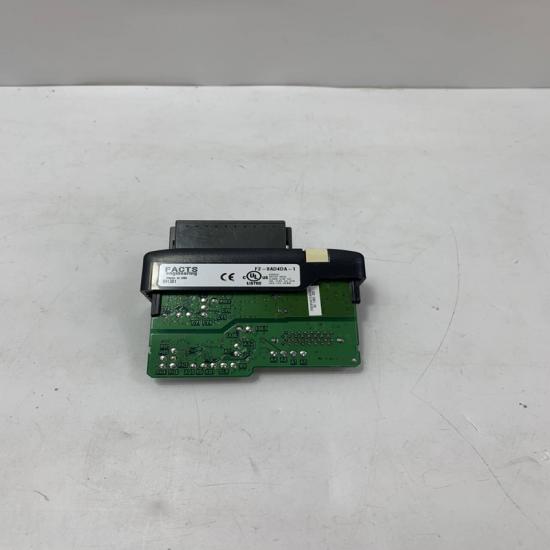

The structure and details of the product：
