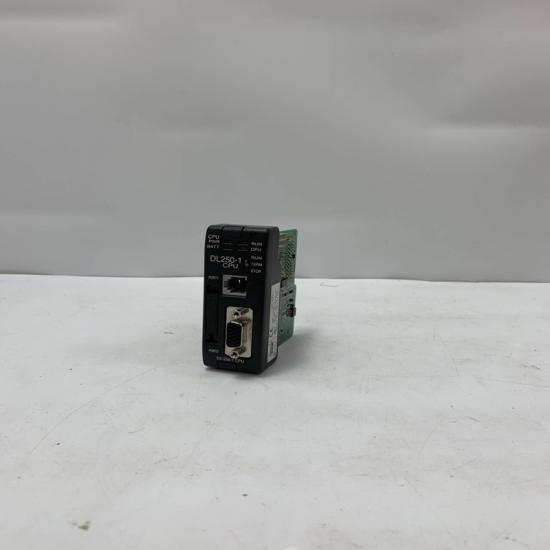

AUTOMATION DIRECT DL250-1 CPU Module

Product Description

Detailed Parameters

1. Processor Specifications
   • CPU Type: 32-bit RISC processor
   • Instruction Execution Speed: 0.06ms/k instructions (basic logic)
   • Scan Cycle: <1ms (typical)
   • Watchdog Timer: 200ms (software adjustable)
2. Memory Configuration
   • Program Memory: 256KB (flash)
   • Data Memory: 256KB (battery-backed RAM)
   • Data Logging Memory: 128KB (for historical data storage)
3. Communication Interfaces
   • Ethernet Ports: 2 independent 10/100Base-T ports
     • Support Modbus TCP, Ethernet/IP, DHCP, FTP, email functions
     • Built-in web server for remote monitoring and configuration
   • Serial Ports:
     • Port 1: RS-232 (6P6C phone jack), supports programming, Modbus RTU
     • Port 2: RS-485 (removable terminal block), supports Modbus RTU, DF1 protocol
4. I/O Expansion
   • Up to 10 I/O bases supported (daisy-chain connection)
   • Maximum I/O Points: 1,024 digital or 256 analog
5. Special Features
   • Motion Control: Up to 8 axes of servo/stepper control (requires motion module)
   • PID Control: 64 PID control loops (built-in PID instructions)
   • High-Speed Counters: 4 channels, max 100kHz
   • Real-Time Clock: Battery-backed (internal battery)
6. Power Requirements
   • Operating Voltage: 24VDC (±10%)
   • Power Consumption: <7W
7. Operating Environment
   • Temperature Range: 0°C to 55°C (operation), -20°C to 70°C (storage)
   • Humidity: 5-95%RH (non-condensing)
   • Vibration: Complies with IEC 60068-2-6 (10-57Hz, 0.75mm double amplitude)
   • Shock: Complies with IEC 60068-2-27 (15g, 11ms)
8. Physical Specifications
   • Dimensions: 120mm (W) × 100mm (H) × 80mm (D)
   • Weight: Approximately 400g

Product Advantages and Features

1. High-Performance Processing
   • 32-bit processor delivers ultra-fast instruction execution for high-speed motion control and complex logic.
   • Large memory capacity supports large programs and extended data logging.
2. Dual Ethernet Ports
   • Two independent Ethernet ports enable different network topologies (e.g., star, ring), enhancing system flexibility and reliability.
   • Simultaneous support for multiple industrial Ethernet protocols simplifies integration with third-party devices.
3. Advanced Control Capabilities
   • Built-in motion control eliminates the need for external controllers in servo/stepper applications.
   • 64 PID loops support complex process control for multi-parameter regulation (temperature, pressure, flow, etc.).
4. Flexible Communication
   • Support for Modbus TCP, Ethernet/IP, etc., facilitates the construction of distributed control systems.
   • Built-in web server allows remote monitoring and configuration via web browser, simplifying maintenance.
5. Ease of Programming and Maintenance
   • Compatible with DirectSoft 7.0 or higher, supporting IEC 61131-3 programming languages (LD, FBD, ST, etc.).
   • Intuitive status indicators and diagnostic functions simplify troubleshooting.

Applications

1. Complex Industrial Automation
   • Controls multi-axis robots, large production lines, and warehouse logistics systems.
2. Precision Motion Control
   • Achieves high-precision position control in CNC machines, printing presses, packaging equipment, etc.
3. Process Control
   • Implements multi-parameter PID control and data acquisition in chemical, pharmaceutical, and food processing industries.
4. Distributed Control Systems
   • Connects multiple subsystems via Ethernet and serial interfaces to build large-scale distributed automation networks.
5. Energy and Power Systems
   • Monitors and controls power equipment, renewable energy systems (solar, wind), etc.

Precautions

1. Power Connection
   • Use a 24VDC power supply within specified tolerances (±10% voltage fluctuation).
   • Isolated power supplies are recommended to reduce electrical interference.
2. Communication Configuration
   • Avoid IP address conflicts when configuring Ethernet ports.
   • Different communication ports can run different protocols simultaneously, but bandwidth and resources must be allocated appropriately.
3. Motion Control Applications
   • Use dedicated motion control modules and cables when configuring motion axes.
   • Ensure servo/stepper drive parameters match those of the DL250-1.
4. Environmental Requirements
   • Avoid operation in environments with high temperature, humidity, dust, or corrosive gases.
   • Use cooling measures if ambient temperature exceeds 55°C.
5. Program Backup
   • Regularly back up programs and configuration data to prevent loss due to battery failure or hardware issues.
6. Troubleshooting
   • Use LED indicators to diagnose common faults (power issues, communication errors, CPU abnormalities).
   • Utilize DirectSoft diagnostic tools for in-depth fault analysis.
