AUTOMATION DIRECT F2-02DAS-1 Analog Output Module

AUTOMATION DIRECT F2-02DAS-1 Analog Output Module

Product Description

Detailed Parameters

1. Output Channels: 2 independent analog output channels
2. Output Signal Types:
   • Current Output: 4-20mA, 0-20mA
   • Voltage Output: 0-10V, 0-5V, -10-10V, -5-5V
3. Resolution:
   • Current Output: 12 bits (4096 steps)
   • Voltage Output: 12 bits (4096 steps)
4. Accuracy: ±0.5% of full scale (25°C)
5. Load Capacity:
   • Current Output: Max 500Ω
   • Voltage Output: Min 2kΩ
6. Update Time: <1ms
7. Isolation: Optocoupler isolation between channels, isolation voltage 500Vrms
8. Input Impedance: >10MΩ in voltage mode, 250Ω in current mode
9. Operating Temperature: 0-55°C
10. Storage Temperature: -20-70°C
11. Humidity Range: 5-95%RH (non-condensing)
12. Dimensions: 100mm x 80mm x 62mm
13. Weight: Approximately 200g
14. Mounting Method: Standard DIN rail mounting
15. Power Requirements: 24VDC±10%, power consumption <3W

Product Advantages and Features

1. Multi-Signal Type Support: Supports multiple voltage and current output signals, flexibly adapting to different types of industrial equipment, improving the module's versatility and applicability.
2. High-Precision Output: 12-bit resolution and ±0.5% accuracy ensure the accuracy of the output signal, meeting the precision requirements of analog control in most industrial control scenarios.
3. Channel Isolation: Optical coupling isolation technology between channels effectively prevents interference between channels, improving the system's stability and reliability, especially suitable for complex industrial environments.
4. Fast Update Time: An update time of less than 1ms enables rapid response to control commands, achieving real-time control of industrial processes and meeting high-speed control requirements.
5. Hot-Swap Function: Supports hot-swapping operations, allowing module replacement without shutting down the system, reducing system downtime and improving production efficiency.
6. Compact Design: Small size and standard DIN rail mounting method facilitate integration into control cabinets, saving space.

Application Areas

1. Industrial Automation: In production line control, used to control analog parameters such as motor speed, valve opening, and temperature regulation, achieving automated control of the production process.
2. Process Control: In industries such as chemical, pharmaceutical, and food processing, precisely control process parameters such as pressure, flow, and liquid level to ensure the stability of the production process and product quality.
3. Energy Management: In the fields of electric power and water services, used to control generator output, pump flow regulation, etc., achieving efficient use and distribution of energy.
4. Robot Control: In robot systems, control the movement speed and force of robot joints to achieve precise position control and force feedback control.
5. Test and Measurement Equipment: As a signal source for test equipment, providing precise analog output signals for calibrating and testing other devices.

Precautions

1. Power Connection:
   • Ensure a 24VDC power supply that meets the specifications is used, and the power fluctuation should not exceed ±10%.
   • Connect the power polarity correctly to avoid damage to the module due to reverse power polarity.
   • To prevent power interference, it is recommended to use an isolated power supply or add a filter capacitor at the power input.
2. Signal Wiring:
   • Ensure the system is powered off before wiring to avoid electric shock and short-circuit risks.
   • Connect the output signals correctly according to the module label, distinguishing between voltage and current output modes.
   • For current output, ensure the load impedance does not exceed 500Ω; for voltage output, ensure the load impedance is not less than 2kΩ.
3. Environmental Requirements:
   • The installation environment should be well-ventilated to avoid the module working in a high-temperature environment for a long time.
   • Avoid using the module in humid, dusty, or corrosive gas environments. Take protective measures if necessary.
   • Although the heat generated by the module during operation is small, a certain amount of heat dissipation space should be reserved around it.
4. Grounding Requirements:
   • The module must be reliably grounded to prevent static electricity and electromagnetic interference.
   • It is recommended to use a separate grounding wire and avoid sharing the grounding circuit with other devices.
5. Configuration and Calibration:
   • When configuring the module using DirectSoft software, ensure the correct output signal type and range are selected.
   • The module is calibrated at the factory, and generally, no user calibration is required. If calibration is necessary, follow the operating manual.
6. Troubleshooting:
   • If the module malfunctions, first check the power supply and wiring.
   • Check the status of the module's LED indicators to determine the cause of the fault based on the indicator prompts.
   • If the fault cannot be resolved, contact the manufacturer's technical support. Do not disassemble the module without permission.

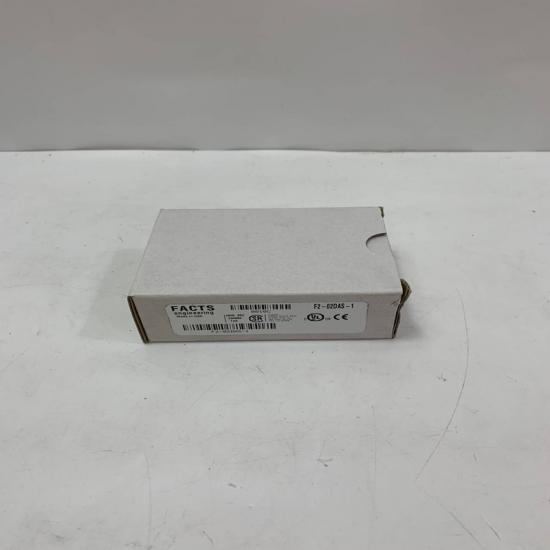

The structure and details of the product：
