AUTOMATIONDIRECT EA9-T6CL C-more EA9 Series Touch Screen HMI

The EA9 - T6CL from AUTOMATION DIRECT belongs to the C - more EA9 series touch - screen Human - Machine Interface (HMI). It is equipped with a 6 - inch color TFT LCD display and uses analog resistive touch - screen technology, enabling precise touch operations. The screen has a resolution of 320 x 240 pixels (QVGA) and an LED backlight, providing a clear and bright display. The device has a rich set of interfaces, including 3 serial interfaces, 1 Ethernet interface, 2 USB ports, 1 memory card slot, and 1 audio output interface, which greatly facilitates data transmission and device connection.

Detailed Parameters

Display：6 - inch color TFT LCD display with a 5.7 - inch viewable area, 64K colors, a resolution of 320 x 240 pixels (QVGA), a display brightness of 280 nits, and an average backlight half - life of 50,000 hours.

Touch Screen：Analog resistive (1024 x 1024), supporting unlimited touch areas.

Interfaces：3 serial interfaces (supporting RS - 232 / 422 / 485) for connecting devices such as PLCs; 1 Ethernet 10/100 base - T port for program download and PLC communication, also supporting remote Internet access; 2 USB ports, with USB port B for program download and USB port A for connecting USB devices; 1 built - in SD memory card slot; 1 audio output interface (stereo, requiring an external amplifier and speakers), 1 microphone input interface.

Power Supply：Powered by 12 - 24VDC, with an optional 110V AC power adapter.

Memory：26MB project memory, supporting data logging.

Operating Temperature：0 to 50°C (32 to 122°F).

Protection Level：Complies with NEMA 4 / 4X and IP65 standards when installed correctly, for indoor use only.

Certifications：UL, CUL, CSA, and CE agency approvals.

Warranty：2 - year warranty from the date of purchase.

Product Advantages and Features

Rich Interfaces：The variety of interface types allows this HMI to connect and communicate with various devices, meeting the needs of different industrial automation scenarios and enhancing the flexibility of system integration.

High - Resolution Display：The 320 x 240 - pixel resolution and 64K color display can clearly show various graphics and data, facilitating operators to view and monitor the system status.

Long - Life Backlight：The average backlight half - life of 50,000 hours reduces the frequency of device replacement due to backlight aging, lowering maintenance costs.

Flexible Communication Function：The Ethernet interface supports remote Internet access, allowing engineers to remotely monitor and debug devices, improving work efficiency; the serial interfaces can communicate with various brands of PLCs to achieve centralized control of the system.

Data Logging Function：Capable of recording system operation data, facilitating subsequent analysis and optimization of the production process.

High Protection Level：Complies with NEMA 4 / 4X and IP65 standards, effectively dust - proof and waterproof, suitable for harsh industrial environments.

Application Areas

Industrial Automation Production Lines：Used to monitor and control various devices on the production line, such as PLCs, sensors, and actuators, to achieve automated control and monitoring of the production process.

Mechanical Equipment Control：Can be used as the operation interface of mechanical equipment. Operators can set parameters, start, stop, etc. of the equipment through the touch screen, and at the same time, view the running status of the equipment in real - time.

Energy Management Systems：In the field of energy production and distribution, it is used to monitor and manage the operation of energy equipment such as generators, transformers, and power distribution cabinets, achieving efficient utilization and management of energy.

Building Automation：Controls and monitors various devices in buildings, such as elevators, air conditioners, and lighting systems, improving the intelligent management level of buildings.

Precautions

Installation Environment：Only suitable for indoor installation. Avoid using it in environments with high temperature, humidity, dust, or corrosive gases to prevent affecting the device performance and lifespan.

Power Connection：Ensure correct power connection. The input voltage should be within the range of 12 - 24VDC. If using an 110V AC power adapter, ensure the quality and compatibility of the adapter to prevent device damage due to power problems.

Interface Use：Pay attention to the type and specifications of the interfaces when connecting external devices. Avoid plugging into the wrong interface, which may damage the device. When plugging and unplugging the interfaces, turn off the power of the relevant devices first to prevent electrostatic or current shocks.

Software Operation：When using the supporting programming software for project development and download, follow the operation manual to avoid program errors or device failures due to incorrect operations. At the same time, update the software regularly to obtain better functions and stability.

Maintenance：Regularly clean the screen with a clean and soft cloth. Avoid using cleaning agents containing chemical substances. Regularly check the running status of the device. If any abnormalities are found, repair and handle them in a timely manner.

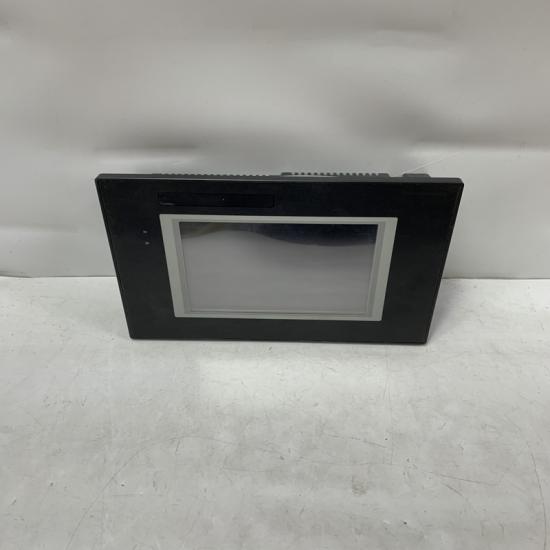

The structure and details of the product：
