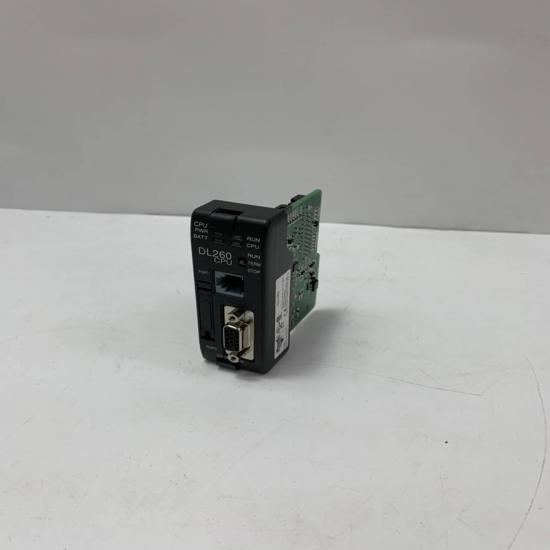

AUTOMATION DIRECT D2 - 260 CPU Module: A Comprehensive Overview

Product Description

Detailed Parameters

1. Memory Capacity
   • The module offers a total system memory of 30.4 k words. Among this, the flash programming ladder memory has a capacity of 15,872 words. This substantial memory allows for the storage of complex programs and a large amount of data. Additionally, there is an integrated v - memory system that provides extra storage for critical data, ensuring data integrity even in the event of power disruptions.
2. I/O Expansion
   • It supports local I/O expansion, with the ability to connect up to five total bases. This feature enables users to customize the I/O configuration according to the specific requirements of their applications. Whether it's adding more digital inputs to monitor various sensors or expanding analog outputs to control precise processes, the D2 - 260 can handle the expansion needs effectively.
3. PID Loop Processing
   • One of the remarkable features of the D2 - 260 is its capacity to process up to sixteen PID (Proportional - Integral - Derivative) loops directly. PID control is widely used in industrial processes to regulate variables such as temperature, pressure, and flow. The ability to handle multiple PID loops simultaneously makes the D2 - 260 suitable for complex control applications where precise regulation of multiple parameters is required.
4. Communication Ports
   • Port 1: Equipped with a 6p6c phone jack connector for RS - 232 hookup. RS - 232 is a standard serial communication protocol that is commonly used for connecting devices over short distances. This port can be used for programming the module, communicating with other RS - 232 - compatible devices such as sensors, actuators, or other PLCs in a simple point - to - point connection.
   • Port 2: Features an HD15 connector that allows for RS - 232, RS - 422, and RS - 485 connections. RS - 422 and RS - 485 are more robust serial communication protocols compared to RS - 232. They support multi - drop connections (in the case of RS - 485) and longer transmission distances. These ports enable the D2 - 260 to communicate with a wider range of devices in industrial networks, such as distributed I/O modules, HMIs (Human - Machine Interfaces), and other intelligent devices.
5. Instruction Set
   • The D2 - 260 supports over 280 complex instruction sequences. These include trigonometric functions, which are useful in applications involving motion control or complex mathematical calculations in industrial processes. Table instructions are handy for data manipulation and storage, and ASCII in/out instructions facilitate communication with devices that use ASCII - based protocols, such as certain printers or text - based displays.
6. Indicator Lights and Mode Switch
   • At the top of the module, there are four LED indicator lights. These lights represent different statuses:
     • Run: Indicates whether the CPU is currently executing the user program.
     • Pwr: Shows the power status of the module.
     • CPU: Signals any CPU - related faults or errors.
     • Batt: Alerts when the backup battery (which needs to be purchased separately as the D2 - BAT - 1) is low or malfunctioning.
   • There is also a user - selectable mode switch. This switch allows the user to set the CPU to run, have peripheral devices select the CPU's mode, or force - stop the CPU. This provides flexibility in operating the module according to different scenarios, such as during system startup, maintenance, or emergency situations.

Product Advantages and Features

1. High - Performance Processing
   • With its large memory capacity and support for a vast number of complex instructions, the D2 - 260 can handle demanding industrial applications. It can execute programs quickly, ensuring real - time control and response in industrial processes. This high - performance processing is crucial for applications where split - second decisions and actions are required, such as in high - speed manufacturing lines.
2. Flexible Communication Options
   • The variety of communication ports and protocols supported by the D2 - 260 makes it highly adaptable to different industrial network topologies. Whether it's a simple serial connection for basic device communication or a more complex multi - drop network using RS - 485, the module can be easily integrated. This flexibility simplifies system integration and allows for seamless communication between different components in an industrial automation setup.
3. PID Loop Capability
   • The ability to handle up to sixteen PID loops directly is a significant advantage. In industrial processes where maintaining precise control of multiple variables is essential, the D2 - 260 can perform this task without the need for additional external PID controllers. This not only reduces hardware costs but also simplifies the overall control system architecture.
4. Data Storage and Integrity
   • The combination of a large system memory and the integrated v - memory for critical data ensures that important information is stored securely. The backup battery support (when using the D2 - BAT - 1) helps maintain data integrity during power outages, preventing data loss and ensuring that the system can resume operation smoothly once power is restored.

Application Areas

1. Manufacturing Automation
   • In manufacturing plants, the D2 - 260 can be used to control production lines. It can monitor inputs from sensors placed on various machines to detect product quality, machine status, and production rates. Based on these inputs, it can control outputs such as motors, valves, and actuators to adjust the production process. For example, in a bottling plant, it can control the filling level of bottles, the speed of the conveyor belt, and the capping operation, all while ensuring that the production line runs smoothly and efficiently.
2. Process Control
   • In industries such as chemical, oil and gas, and food and beverage, where precise control of processes is crucial, the D2 - 260's PID loop capabilities come into play. It can regulate variables like temperature, pressure, and flow rate in chemical reactors, pipelines, and processing vessels. For instance, in a food processing plant, it can control the cooking temperature and time in a large oven to ensure consistent product quality.
3. Building Automation
   • In commercial buildings, the D2 - 260 can be used to manage and control various systems. It can interface with sensors for temperature, humidity, and occupancy to control HVAC (Heating, Ventilation, and Air - Conditioning) systems. It can also control lighting systems, turning lights on or off based on occupancy and daylight levels, thus optimizing energy consumption in the building.

Precautions

1. Power Supply
   • Ensure that the power supply provided to the D2 - 260 module is within the specified range. Incorrect voltage levels can damage the module. It's recommended to use a stable and properly filtered power source to prevent electrical noise from interfering with the module's operation.
2. Installation
   • Follow the installation guidelines provided in the DirectLogic 205 series manual carefully. When installing the module in a base, make sure it is properly seated and locked in place. Incorrect installation can lead to poor electrical connections, which may cause intermittent failures or complete malfunction of the module.
3. Programming
   • Use the recommended DirectSoft version 4.0 or higher for programming the D2 - 260. If using a peripheral handheld programmer, ensure that version 2.10 of the firmware is installed. Using incorrect programming software or firmware versions may result in programming errors, and the module may not function as expected.
4. Backup Battery
   • If relying on the backup battery (D2 - BAT - 1) for data retention during power outages, regularly check the battery status using the Batt LED indicator on the module. Replace the battery when it shows signs of low voltage or as per the manufacturer's recommended replacement interval. A faulty or depleted backup battery can lead to data loss.
5. Environmental Conditions
   • Operate the D2 - 260 module within the specified temperature and humidity ranges. Extreme environmental conditions can affect the performance and lifespan of the module. Avoid installing it in areas with high levels of dust, moisture, or electromagnetic interference.
