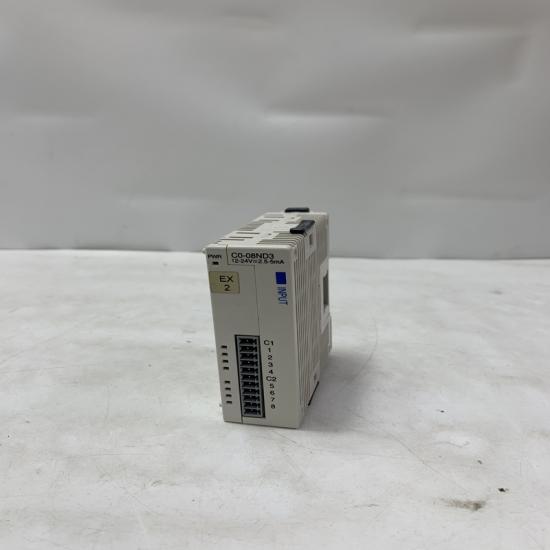

AUTOMATION DIRECT C0-08ND3 CLICK Discrete Input Module

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

AUTOMATION DIRECT F2-02DAS-1 Analog Output Module

Product Description

Detailed Parameters

1. Output Channels: 2 independent analog output channels
2. Output Signal Types:
   • Current Output: 4-20mA, 0-20mA
   • Voltage Output: 0-10V, 0-5V, -10-10V, -5-5V
3. Resolution:
   • Current Output: 12 bits (4096 steps)
   • Voltage Output: 12 bits (4096 steps)
4. Accuracy: ±0.5% of full scale (25°C)
5. Load Capacity:
   • Current Output: Max 500Ω
   • Voltage Output: Min 2kΩ
6. Update Time: <1ms
7. Isolation: Optocoupler isolation between channels, isolation voltage 500Vrms
8. Input Impedance: >10MΩ in voltage mode, 250Ω in current mode
9. Operating Temperature: 0-55°C
10. Storage Temperature: -20-70°C
11. Humidity Range: 5-95%RH (non-condensing)
12. Dimensions: 100mm x 80mm x 62mm
13. Weight: Approximately 200g
14. Mounting Method: Standard DIN rail mounting
15. Power Requirements: 24VDC±10%, power consumption <3W

Product Advantages and Features

1. Multi-Signal Type Support: Supports multiple voltage and current output signals, flexibly adapting to different types of industrial equipment, improving the module's versatility and applicability.
2. High-Precision Output: 12-bit resolution and ±0.5% accuracy ensure the accuracy of the output signal, meeting the precision requirements of analog control in most industrial control scenarios.
3. Channel Isolation: Optical coupling isolation technology between channels effectively prevents interference between channels, improving the system's stability and reliability, especially suitable for complex industrial environments.
4. Fast Update Time: An update time of less than 1ms enables rapid response to control commands, achieving real-time control of industrial processes and meeting high-speed control requirements.
5. Hot-Swap Function: Supports hot-swapping operations, allowing module replacement without shutting down the system, reducing system downtime and improving production efficiency.
6. Compact Design: Small size and standard DIN rail mounting method facilitate integration into control cabinets, saving space.

Application Areas

1. Industrial Automation: In production line control, used to control analog parameters such as motor speed, valve opening, and temperature regulation, achieving automated control of the production process.
2. Process Control: In industries such as chemical, pharmaceutical, and food processing, precisely control process parameters such as pressure, flow, and liquid level to ensure the stability of the production process and product quality.
3. Energy Management: In the fields of electric power and water services, used to control generator output, pump flow regulation, etc., achieving efficient use and distribution of energy.
4. Robot Control: In robot systems, control the movement speed and force of robot joints to achieve precise position control and force feedback control.
5. Test and Measurement Equipment: As a signal source for test equipment, providing precise analog output signals for calibrating and testing other devices
