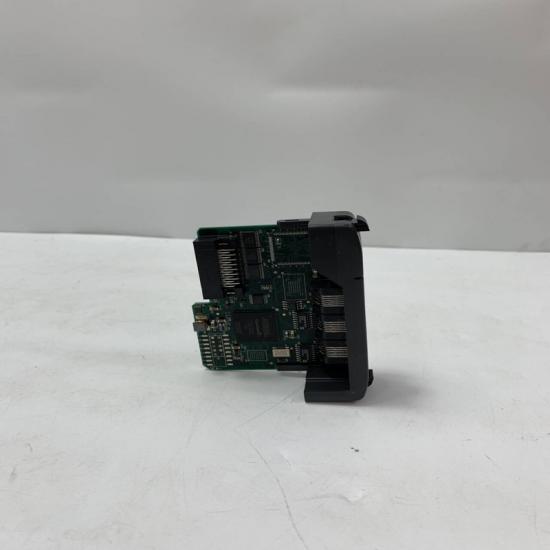

AUTOMATIONDIRECT F0-08DAH-2 Analog Output Module

Product Overview

Model: F0-08DAH-2
Series: DirectLOGIC DL05 / DL06 PLC
Manufacturer: AutomationDirect

The AUTOMATIONDIRECT F0-08DAH-2 is an 8-channel analog voltage output module designed for DirectLOGIC DL05 and DL06 PLC systems. It converts PLC digital data into accurate 0–10VDC analog output signals for controlling variable-speed drives, valves, actuators, and other industrial devices.

Technical Specifications

• Product Type: Analog Output Module
• Model: F0-08DAH-2
• Series: DirectLOGIC DL05 / DL06
• Output Channels: 8 channels
• Output Signal: 0–10 VDC
• Resolution: 16-bit (152 μV/bit)
• Output Type: Voltage sourcing / sinking
• Maximum Output Current: 5 mA per channel
• Output Impedance: Approx. 0.5 Ω
• Load Impedance: >2000 Ω
• Accuracy: ±0.27% of full scale (including temperature effects)
• Update Rate: 100 μs (all channels)
• Settling Time: Maximum 0.5 ms
• External Power Supply: 24 VDC ±10%, 75 mA
• PLC Base Power: 5 VDC / 25 mA
• Isolation: 1800 VAC field-to-logic isolation
• Connection Type: Removable terminal block
• Compatible PLC: DirectLOGIC DL05 / DL06
• Mounting Position: Any slot in DL05/DL06 system

Advantages & Features

• High-Resolution Analog Control
  Provides 16-bit resolution for precise voltage output control.
• 8-Channel Output Capability
  Allows multiple analog devices to be controlled from a single PLC module.
• Fast Response Performance
  Supports rapid analog signal updates for dynamic industrial processes.
• Reliable Signal Accuracy
  Stable output performance helps improve system control precision.
• Compact PLC Expansion
  Expands DL05/DL06 PLC analog control capability without additional controllers.
• Easy Maintenance
  Removable terminal block design simplifies wiring and replacement.

Applications

• Variable Frequency Drive (VFD) Speed Control
• Proportional Valve Control
• Temperature Control Systems
• Pressure and Flow Regulation
• Industrial Automation Equipment
• Process Control Systems
• Machine Control Applications
• Factory Automation Lines

Precautions

• Verify compatibility with DirectLOGIC DL05/DL06 PLC systems before installation.
• Confirm the connected device supports 0–10VDC input signals.
• Use shielded cables for analog signal wiring in noisy environments.
• Ensure correct 24VDC external power connection.
• Avoid exceeding the maximum output current rating.
• Disconnect PLC power before installing or removing the module.
• Configure PLC analog data scaling correctly before operation.
