AutomationDirect D4-16ND2F Digital Input Module

D4-16ND2F
D4-16ND2F

AutomationDirect D4-16ND2F Digital Input Module

AutomationDirect D4-16ND2F Digital Input Module

  • Item NO.:

    D4-16ND2F

  • Payment:

    T/T

  • Price:

    $295

  • Product Origin:

    CHINA

  • Color:

    NEW

  • Product weight:

    0.02KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                                                              • https://images.openai.com/static-rsc-4/LF40JuISjDLqVaCeyW7yi-vIcYEelPIW0sJlTKRwFU_ij-SPm-s-z1Vm5KtZ2PB9Rh637TRdmrMvvjtDoNQhMzooYGGW89ypjqhwvSAWY1w1Vx5eKXm67ERz5hnTyl8sQuQOJFdA74g4uL-W2M0rSsnuU-B6oTXhGpC9nOhmCJwGlGO7Hm7lAijPupGnvdd-?purpose=fullsize

                                                                                              • Product Overview

                                                                                                The AutomationDirect D4-16ND2F is a DirectLOGIC DL405 16-point DC digital input module designed for PLC-based industrial automation. It accepts 12–24 VDC sourcing inputs and features two isolated commons with 8 input points per common.

                                                                                                Key Technical Specifications

                                                                                                Parameter Specification
                                                                                                Brand AutomationDirect
                                                                                                Series DirectLOGIC DL405
                                                                                                Model D4-16ND2F
                                                                                                Product Type Digital Input Module
                                                                                                Number of Inputs 16 points
                                                                                                Input Type DC, Current Sourcing
                                                                                                Input Voltage 10.2–26.4 VDC
                                                                                                Nominal Voltage 12–24 VDC
                                                                                                Peak Voltage 26.4 VDC
                                                                                                Isolated Commons 2
                                                                                                Points per Common 8
                                                                                                ON Voltage >9.5 VDC
                                                                                                OFF Voltage <4.0 VDC
                                                                                                Input Current 3.8 mA @ 12 VDC / 8.3 mA @ 24 VDC
                                                                                                Minimum ON Current 3.5 mA
                                                                                                Maximum OFF Current 1.5 mA
                                                                                                Input Impedance 3.2 kΩ @ 12 VDC / 2.9 kΩ @ 24 VDC
                                                                                                Response Time 1 ms ON / 1 ms OFF
                                                                                                Base Power 150 mA max @ 5 VDC
                                                                                                Terminal Removable terminal block
                                                                                                Status Indicators Logic-side LEDs
                                                                                                Weight Approx. 250 g (8.8 oz)
                                                                                                Programming Software DirectSOFT v4.0 or later



                                                                                                Advantages & Features

                                                                                                • 16-channel DC digital input capability
                                                                                                • Supports 12–24 VDC industrial signals
                                                                                                • Two isolated input commons improve wiring flexibility
                                                                                                • Fast 1 ms response time
                                                                                                • Removable terminal block for easier maintenance
                                                                                                • Individual LED status indication
                                                                                                • Designed for reliable DL405 PLC operation

                                                                                                Typical Applications

                                                                                                • Factory automation
                                                                                                • Machine control
                                                                                                • Conveyor systems
                                                                                                • Packaging machinery
                                                                                                • Production lines
                                                                                                • Material handling
                                                                                                • Sensor and switch monitoring
                                                                                                • Industrial control panels

                                                                                                Important Notes

                                                                                                • This module is a current-sourcing input module; verify the field-device wiring configuration before installation.
                                                                                                • Input voltage must remain within 10.2–26.4 VDC.
                                                                                                • Do not exceed the specified peak input voltage.
                                                                                                • Confirm compatibility with the DirectLOGIC DL405 PLC base.
                                                                                                • Follow proper polarity, grounding, and electrical isolation practices.
                                                                                                • AutomationDirect currently identifies the DL405 family as a legacy PLC series supported for existing installations, so verify system compatibility when replacing a module.
                                                                                              •

The structure and details of the product：




Please make an inquiry for more models

AUTOMATION DIRECT Appleton GRC50-A

AutomationDirect EA3-S3ML-R

Automation Direct F2-16TD2P

Automation Direct  F2-08AD-1

AutomationDirect EA7-S6M

AUTOMATION DIRECT C0-08TR

Automation Direct MTR2-P33-3BD18

Automation Direct DVD-2AC4A-120A

Automation Direct    MS25-160

Automation Direct DN-QG12-2-2

Automation Direct 11TDT1W4S

AUTOMATION DIRECT   C0-08TR

AUTOMATION DIRECT  DL260

Automation Direct F0-04RTD

Automation Direct STP-MTRH-34127

Automation Direct  F0-04RTD

Automation Direct   P3-06DAS-1

 Automation Direct    P3-08B

 Automation Direct    P3-11B

 Automation Direct    P3-16TD1

 Automation Direct    P3-FILL

 Automation Direct   ZL-CBL40-2

 Automation Direct    ZL-P3-CBL20-2

 Automation Direct    ZL-RTB40-1

 Automation Direct    EA9-T15CL

Automation Direct   D2-260

AUTOMATION DIRECT   EA9-T15CL-R

AUTOMATION DIRECT EA9-7CL

AUTOMATION DIRECT   P3-550E

AUTOMATION DIRECT   D2-BAT-1

AUTOMATION DIRECT   P3-EX

AUTOMATION DIRECT   P3-SCM

AUTOMATION DIRECT   P3-16AD-1

 AUTOMATION DIRECT   P3-RTB

AUTOMATION DIRECT    P3-16DA-1

AUTOMATION DIRECT   P3-64ND3

Automation Direct ZL-RTB40-1

Automation Direct ZL-CBL40-2

Automation Direct P3-16TD1

Automation Direct P3-11B

Automation Direct P3-08B

Automation Direct P3-16AD-1

Automation Direct P3-RTB

Automation Direct P3-16DA-1

Automation Direct P3-64ND3

AUTOMATION DIRECT    F4-16AD-1

AUTOMATION DIRECT    D4-64TD1

AUTOMATION DIRECT    D4-64ND2

Automation Direct    EZ-220 EZA

AutomationDirect     D0-06DR-D

Automation Direct   P3-16AD1GE

Automation Direct D2-04B-1

Automation Direct F2-16TD2P

Automation Direct P3-SCM

Automation Direct EA9-T15CL



Automation Direct P3-550



Other best-selling products：

  1.
Hot Tags :

AUTOMATION DIRECT

D4-16ND2F

PLC Module
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related products

EA9-T6CL
AUTOMATIONDIRECT EA9-T6CL C-more EA9 Series Touch Screen HMI

AUTOMATIONDIRECT EA9-T6CL C-more EA9 Series Touch Screen HMI

Details
D2-260
AUTOMATION DIRECT D2-260 CPU module

AUTOMATION DIRECT D2-260 CPU module

Details
F2-02DAS-1
AUTOMATION DIRECT F2-02DAS-1 Analog Output Module

AUTOMATION DIRECT F2-02DAS-1 Analog Output Module

Details
C0-08ND3
AUTOMATION DIRECT C0-08ND3 CLICK Discrete Input Module

AUTOMATION DIRECT C0-08ND3 CLICK Discrete Input Module

Details

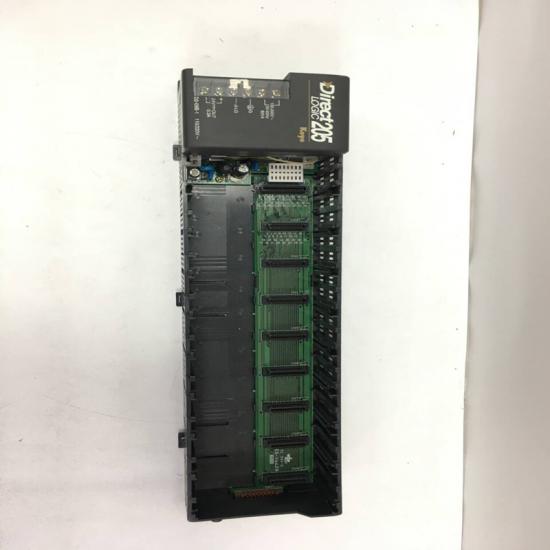

D2-09BDC1-1
