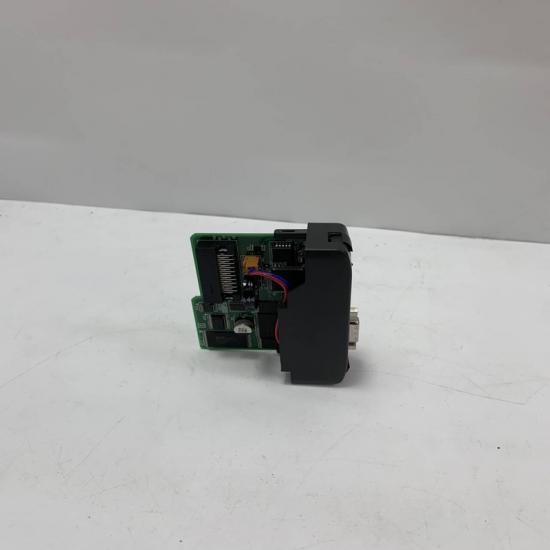

AUTOMATIONDIRECT D2-260 PLC CPU Module

Product Overview

Model: D2-260
Series: DirectLOGIC DL205 PLC
Manufacturer: AutomationDirect

The AUTOMATIONDIRECT D2-260 is a high-performance CPU module for the DirectLOGIC DL205 PLC system. It provides advanced program execution, expanded memory capacity, PID control, communication functions, and large-scale I/O management capabilities, making it suitable for complex industrial automation applications.

Technical Specifications

• Product Type: PLC CPU Module
• Model: D2-260
• Series: DirectLOGIC DL205
• CPU Type: 32-bit RISC-based processor
• Program Memory: 15.8K words ladder logic memory
• Total Memory: 30.4K words
  • Ladder memory: 15.8K words
  • V-memory/data registers: 14.6K words
• Instruction Set: Approx. 297 instructions
• PID Control: Supports up to 16 PID loops with auto-tuning
• Communication Ports:
  • 1 × RS-232 (RJ12) programming port
  • 1 × RS-232/RS-422/RS-485 communication port
• Communication Protocols:
  • DirectNET
  • MODBUS RTU Master/Slave
  • ASCII communication
• Local Expansion: Supports multiple DL205 expansion bases
• Maximum I/O Capacity: Up to 16,384 I/O points (system configuration dependent)
• Programming Software: DirectSOFT
• Battery Backup: Requires D2-BAT-1 backup battery
• Mounting: DL205 PLC base installation

Advantages & Features

• High Processing Capability
  Provides faster program execution and improved control performance for complex automation systems.
• Large Memory Capacity
  Supports larger ladder programs and extensive data storage requirements.
• Advanced PID Control
  Built-in PID functions allow precise process control applications.
• Flexible Communication
  Supports multiple serial communication protocols for integration with HMIs, drives, and other devices.
• Expandable System Architecture
  Works with DL205 I/O modules and expansion bases for flexible system design.
• Reliable Industrial Performance
  Designed for continuous operation in factory automation and process control environments.

Applications

• Industrial Automation Systems
• Machine Control Equipment
• Production Line Control
• Process Control Systems
• Packaging Machinery
• Conveyor Systems
• HVAC and Building Automation
• Data Acquisition Systems

Precautions

• Verify compatibility with DirectLOGIC DL205 base before installation.
• Confirm communication settings before connecting external devices.
• Install the correct backup battery when required.
• Ensure PLC power supply and grounding are properly configured.
• Backup the PLC program before replacement.
• Avoid removing the CPU module while the system is powered.
