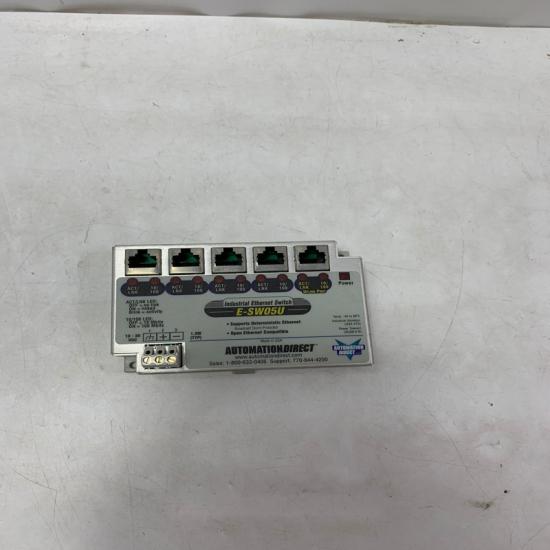

AUTOMATION DIRECT E-SW05U Ethernet Switch

AUTOMATION DIRECT E-SW05U Ethernet Switch

Product Description

Detailed Parameters

1. Interface Specifications
   • Ports: 5 x 10/100Mbps auto-negotiating RJ45 ports (supports MDIX for crossover/straight-through cables, no need for special cables)
   • Protocol Support: Compliant with IEEE 802.3, 802.3u, and 802.3x standards
   • MAC Address Table: 1K entries (supports automatic address learning and aging)
   • Backplane Bandwidth: 10Gbps
   • Forwarding Rate: 14,880 pps (for frames ≤64 bytes)
2. Electrical Characteristics
   • Power Supply: 12-48VDC (terminal block input)
   • Power Consumption: ≤4.5W (typical)
   • Power Protection: Equipped with reverse polarity protection to prevent damage from incorrect wiring
3. Environmental Parameters
   • Operating Temperature: -10°C to 60°C (14°F to 140°F)
   • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
   • Humidity: 5%-95% RH (non-condensing)
   • Vibration Resistance: Complies with IEC 60068-2-6 (5-50Hz, 1.5g acceleration)
   • Shock Resistance: Complies with IEC 60068-2-27 (15g acceleration, 11ms duration)
   • EMC Compliance: Meets EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (radiated emissions) standards
4. Physical Features
   • Dimensions: 115mm (length) × 75mm (width) × 30mm (height)
   • Weight: Approximately 200g
   • Mounting Options: DIN rail or panel mount (includes mounting accessories)
   • LED Indicators: Power (green), Link/Activity (per port, amber), Speed (per port, green for 100Mbps, off for 10Mbps)

Product Advantages and Features

1. Plug-and-Play Convenience
   No complex configuration required—simply connect devices to expand the network instantly, reducing setup time for small-scale systems.
2. Industrial-Grade Durability
   Built to withstand harsh industrial conditions, including extreme temperatures, vibration, and electrical noise, ensuring uninterrupted operation.
3. Wide Voltage Compatibility
   Supports 12-48VDC input, compatible with various industrial power supplies (e.g., 24VDC standard industrial power), enhancing flexibility in power configuration.
4. Space-Saving Design
   Compact size fits easily into control cabinets or machinery with limited space, optimizing installation in crowded environments.
5. Cost-Effective Networking
   Provides affordable, high-performance connectivity for small to medium-sized industrial networks, balancing functionality and budget.

Application Areas

1. Factory Automation
   Connects PLCs, robots, and sensors in manufacturing lines to enable real-time data exchange and coordinated operation.
2. Process Control Systems
   Facilitates communication between distributed control system (DCS) components, such as controllers, I/O modules, and process monitors.
3. Building Automation
   Integrates HVAC systems, access control devices, and surveillance cameras into a unified network for centralized management.
4. Transportation Infrastructure
   Used in railway signaling, traffic control systems, and toll booth networks to ensure reliable data transmission.
5. Energy Management
   Connects smart meters, inverters, and monitoring devices in solar or wind power plants for energy production tracking and optimization.

Precautions

1. Power Connection
   • Ensure the power supply voltage is within the 12-48VDC range to avoid damaging the switch.
   • Use shielded cables and proper grounding to minimize electromagnetic interference (EMI).
2. Network Cabling
   • Use CAT5e or higher-grade Ethernet cables for stable data transmission; avoid low-quality cables that may cause signal loss.
   • Keep cable lengths within 100 meters to maintain signal integrity.
3. Installation Environment
   • Mount the switch in a well-ventilated area to prevent overheating, especially in high-temperature environments.
   • Avoid installing near strong EMI sources (e.g., large motors, transformers) to prevent communication disruptions.
4. Maintenance
   • Regularly check LED indicators to monitor port status (link, activity, speed) and troubleshoot connectivity issues.
   • Periodically clean the switch enclosure to prevent dust accumulation, which can impede heat dissipation.
5. Network Planning
   • For larger networks, ensure the switch is used in appropriate topologies (e.g., star) to avoid excessive latency.
   • This unmanaged switch does not support advanced features like VLAN or redundancy protocols; use managed switches for complex, redundant networks.

Comparison with Managed Switches

• Configuration: The E-SW05U requires no setup, while managed switches offer advanced features like VLAN, QoS, and port mirroring.
• Redundancy: Managed switches support network redundancy protocols (e.g., RSTP, ERPS), which the E-SW05U does not.
• Cost: Unmanaged switches like the E-SW05U are more affordable, making them suitable for basic connectivity needs.
