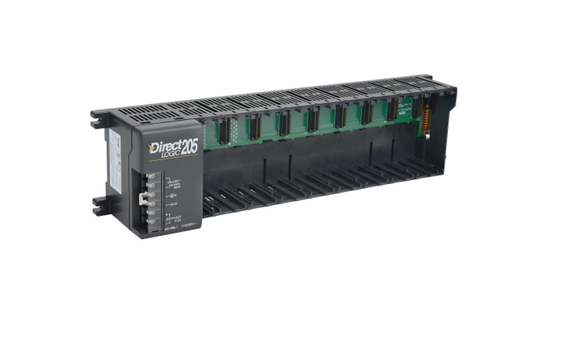

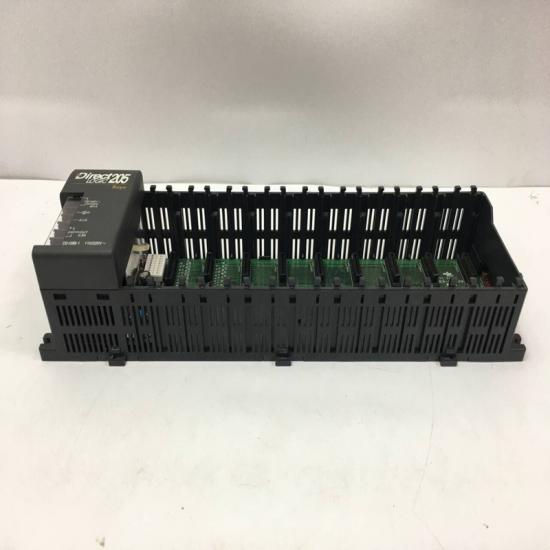

AUTOMATION DIRECT D2-09B-1 DirectLOGIC DL205 I/O Base

AUTOMATION DIRECT D2-09B-1 DirectLOGIC DL205 I/O Base

Product Description

Detailed Parameters

1. Physical Specifications
   • Dimensions: 220mm (length) × 76mm (width) × 60mm (height)
   • Weight: Approximately 350g
   • Mounting: Standard DIN rail mounting (35mm)
   • Module Slots: 9 slots for installing DL205 series I/O modules, CPU modules, or communication modules
2. Electrical Characteristics
   • Power Input: 100-240VAC (via external power supply, e.g., D2-PWR-240)
   • Power Distribution: Provides 5VDC (1.5A max) to modules via backplane
   • Backplane Communication: Proprietary parallel bus for high-speed data transfer between modules
   • Isolation: 250VAC isolation between power input and backplane
3. Environmental Parameters
   • Operating Temperature: 0°C to 55°C (32°F to 131°F)
   • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
   • Humidity: 5%-95% RH (non-condensing)
   • Vibration Resistance: Complies with IEC 60068-2-6 (10-57Hz, 0.75mm double amplitude)
   • Shock Resistance: Complies with IEC 60068-2-27 (15g, 11ms)
4. Compatibility
   • Compatible with all DL205 series modules, including:
     • CPU modules (e.g., D2-250-1, D2-16ND1)
     • I/O modules (e.g., D2-08TA, D2-16NA)
     • Communication modules (e.g., H2-ECOM)
   • Requires a compatible power supply (sold separately)

Product Advantages and Features

1. High Expansion Capacity
   Supports up to 9 modules, allowing flexible configuration of I/O points, communication interfaces, and special function modules to meet diverse application needs.
2. Integrated Power Distribution
   Distributes 5VDC power to installed modules via the backplane, eliminating the need for separate power wiring and simplifying system design.
3. Fast Backplane Communication
   Proprietary parallel bus ensures high-speed data exchange between modules, reducing signal delay and improving system response time.
4. Compact and Durable
   Industrial-grade construction with a compact footprint saves space in control cabinets, while rugged design ensures reliability in harsh environments.
5. Easy Installation
   DIN rail mounting simplifies installation and maintenance; modules can be quickly inserted or removed without tools, reducing downtime during upgrades.

应用领域

1. Industrial Automation Lines
   Serves as the core I/O platform for controlling conveyors, packaging machines, and assembly lines, integrating sensors, actuators, and controllers.
2. Machine Control Systems
   Used in CNC machines, injection molding machines, and printing presses to connect I/O devices and implement precise control logic.
3. Process Monitoring
   Integrates analog and digital I/O modules to monitor temperature, pressure, and flow in chemical, food, and pharmaceutical production.
4. Building Automation
   Connects HVAC, lighting, and security system components, enabling centralized control and monitoring of building facilities.
5. Energy Management
   Interfaces with power meters, relays, and controllers to monitor and manage energy distribution in factories and commercial buildings.

注意事项

1. Power Supply
   • Use only compatible power supplies (e.g., D2-PWR-240) to ensure stable 5VDC output to modules.
   • Check total power consumption of installed modules to avoid exceeding the base’s 1.5A current limit.
2. Module Installation
   • Ensure modules are fully inserted into the base to prevent poor backplane contact and communication failures.
   • Do not mix DL205 modules with incompatible series (e.g., DL405) to avoid damage.
3. Environmental Protection
   • Install the base in a dust-free, dry control cabinet; avoid exposure to corrosive gases or extreme temperatures (>55°C).
   • Provide adequate ventilation to prevent overheating when multiple high-power modules are installed.
4. Wiring and Grounding
   • Securely ground the base to reduce electromagnetic interference; use shielded cables for I/O connections.
   • Tighten terminal screws to prevent loose connections and signal instability.
5. Maintenance
   • Power off the system before removing or inserting modules to avoid damaging backplane pins.
   • Regularly inspect module connections and clean dust from vents to maintain heat dissipation.
