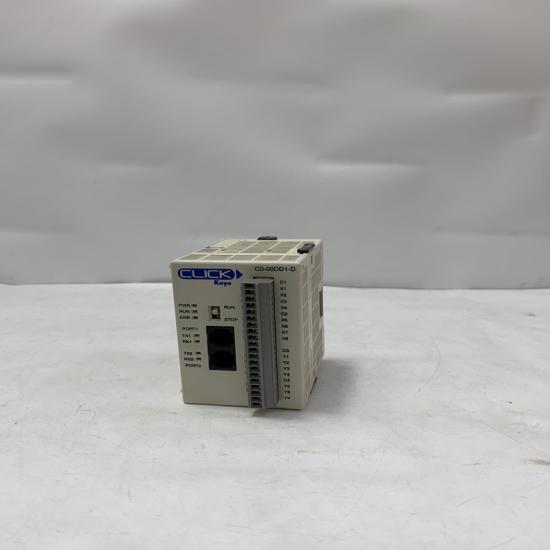

AUTOMATION DIRECT C0-00DD1-D

AUTOMATION DIRECT C0-00DD1-D Product Data

Product Description

Detailed Parameters

1. I/O Configuration
   • Input Channels: 1 digital input, type sinking/sourcing (configurable).
   • Output Channels: 1 digital output, relay type, contact capacity 2A/250VAC or 2A/30VDC.
   • Input Signal Type: Compatible with NPN/PNP sensors, input voltage range 10-30VDC.
   • Output Response Time: Relay pull-in time ≤10ms, release time ≤5ms.
2. Electrical Characteristics
   • Input Impedance: Approximately 4.7kΩ (at DC24V input).
   • Output Isolation: Optoelectronic isolation, isolation voltage ≥500VAC.
   • Power Consumption: ≤1.5W (typical).
3. Physical Characteristics
   • Dimensions: 45mm (W) × 90mm (H) × 70mm (D).
   • Weight: Approximately 100g.
   • Mounting Method: Standard DIN rail mounting, supports horizontal or vertical installation.
   • Terminal Type: Removable pluggable terminals for easy wiring.
4. Environmental Parameters
   • Operating Temperature: -20°C to 60°C.
   • Storage Temperature: -40°C to 85°C.
   • Humidity: 5%-95%RH (non-condensing).
   • Vibration Resistance: Complies with IEC 60068-2-6 standard (10-57Hz, 0.75mm double amplitude).
   • Shock Resistance: Complies with IEC 60068-2-27 standard (15g, 11ms).

Product Advantages and Features

1. Compact Design
   • Ultra-small size, suitable for installation in control cabinets or equipment with limited space.
2. Flexible Configuration
   • Input supports sinking/sourcing modes, output uses relay contacts, can drive various loads.
3. Plug-and-Play
   • Seamlessly integrates with DirectLogic PLCs, no complex configuration required.
4. High Reliability
   • Optoelectronic isolation design effectively resists interference, long relay output life (≥1 million operations).
5. Cost-Effective
   • Single-channel design avoids resource waste, suitable for small-scale control needs, reduces system cost.

Application Areas

1. Small Automation Equipment
   • Such as simple control of packaging machines, labeling machines, small conveyor systems.
2. Sensor Signal Acquisition
   • Connects limit switches, photoelectric sensors, proximity switches, etc., for position detection.
3. Indicator and Alarm Control
   • Controls equipment status indicators, buzzers, or small relays.
4. Laboratory Automation
   • As a control interface for experimental equipment to achieve simple logic control.
5. OEM Equipment Matching
   • Integrated into small control systems of original equipment manufacturers.

Precautions

1. Power Connection
   • Ensure the input power voltage is within 10-30VDC range with correct polarity.
   • Avoid sharing power with high-current loads to prevent voltage fluctuations affecting module performance.
2. Wiring Specifications
   • Use ≥0.5mm² wires to connect terminals, ensure firm and no looseness.
   • Input/output lines should be routed separately from power lines to reduce electromagnetic interference.
3. Load Matching
   • Relay output contact capacity is limited, avoid directly driving high-power loads (such as solenoid valves, contactor coils).
   • For inductive loads (such as solenoid valves), it is recommended to connect a surge suppressor (such as an RC absorption circuit) in parallel.
4. Environmental Requirements
   • Avoid installation in high-temperature, humid, dusty, or corrosive gas environments.
   • If the ambient temperature exceeds 60°C, derate use or add heat dissipation measures.
5. Maintenance and Replacement
   • The module does not support hot swapping, disconnect power before replacement.
   • Regularly check if terminals are loose and if relay contacts are worn
