                                            • Beckhoff EL2008 Digital Output Terminal

                                              Product Type: EtherCAT Digital Output Terminal
                                              Model: EL2008
                                              Function: 8-Channel Digital Output, 24 V DC / 0.5 A
                                              Manufacturer: Beckhoff Automation

                                              The Beckhoff EL2008 is an 8-channel EtherCAT digital output terminal for transmitting binary 24 V DC control signals to actuators at the process level. Each channel has an LED status indicator, with electrical isolation, short-circuit protection and reverse-polarity protection.

                                              Technical Specifications

                                              Parameter	Specification
                                              Model	EL2008
                                              Product Type	EtherCAT Digital Output Terminal
                                              Number of Outputs	8
                                              Connection	1-wire
                                              Nominal Voltage	24 V DC (-15% / +20%)
                                              Max. Output Current	0.5 A/channel
                                              Load Types	Resistive, inductive, lamp
                                              Short-Circuit Protection	Yes
                                              Reverse Polarity Protection	Yes
                                              Switching Time	ON: typ. 60 µs / OFF: typ. 300 µs
                                              Short-Circuit Current	Typ. <2 A
                                              Electrical Isolation	500 V
                                              E-bus Current	Typ. 110 mA
                                              Process Image	8 output bits
                                              Distributed Clocks	No
                                              Power Contact Current	Max. 10 A
                                              Operating Temperature	-25°C to +60°C
                                              Protection Rating	IP20
                                              Mounting	35 mm DIN rail
                                              Dimensions	12 × 100 × 68 mm
                                              Weight	Approx. 55 g

                                              These specifications are from Beckhoff's current product documentation.

                                              Advantages & Features

                                              • 8-Channel Output: Controls eight independent 24 V DC loads.
                                              • 0.5 A per Channel: Suitable for relays, contactors, valves, indicators and other actuators.
                                              • Electrical Isolation: 500 V isolation between E-bus and field potential.
                                              • Short-Circuit Protection: Helps protect the output channels against overload.
                                              • Reverse Polarity Protection: Improves system reliability.
                                              • Fast Switching: Typical ON time of 60 µs and OFF time of 300 µs.
                                              • LED Status Indication: Individual LEDs provide quick visual monitoring.
                                              • Compact Design: Only 12 mm wide, saving valuable cabinet space.
                                              • EtherCAT Integration: Easy integration into Beckhoff EtherCAT/TwinCAT systems.

                                              Typical Applications

                                              • Industrial automation
                                              • PLC control systems
                                              • Factory automation
                                              • Machine control
                                              • Conveyor systems
                                              • Solenoid valve control
                                              • Relay and contactor control
                                              • Robotics
                                              • Packaging machinery
                                              • Production lines
                                              • Distributed EtherCAT I/O systems

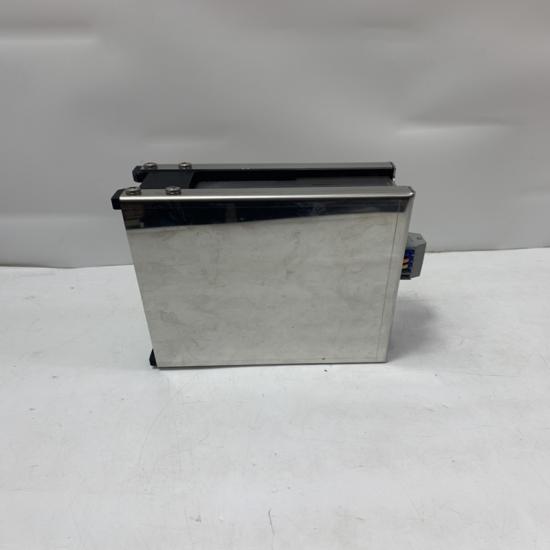

The structure and details of the product：
