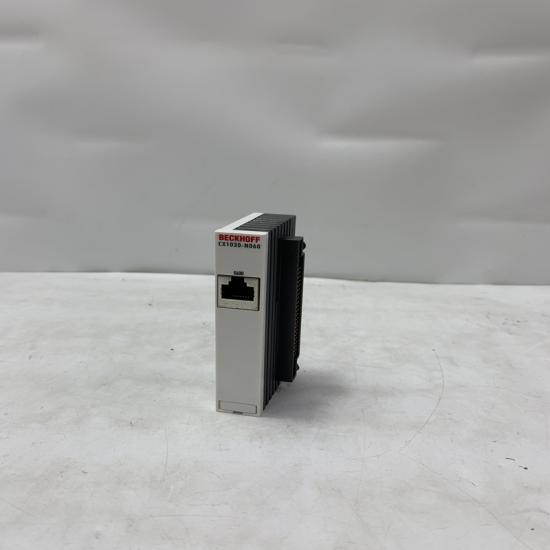

BECKHOFF CX1030-N060 system interface module

1. Product Overview

The BECKHOFF CX1030-N060 is a system interface expansion module designed for the CX1030 embedded PC series, enhancing connectivity options for industrial automation systems. It provides additional I/O interfaces to complement the base CX1030 CPU module, enabling seamless integration with various industrial peripherals and networks .

Key Features:

• Extended I/O Capabilities: Adds DVI-I (DVI-D + VGA), USB 2.0, RS232/RS485, and audio interfaces to the CX1030 system .

• Isolated RS232 Ports: Four galvanically isolated RS232 ports (configurable as RS422/RS485) for robust serial communication .

• Plug-and-Play Integration: Connects via PC/104 bus to the CX1030 CPU module, requiring no additional configuration .

• Industrial Durability: Operates in 0°C to +50°C environments with IP20 protection

2. Technical Specifications

3. Typical Applications

• Human-Machine Interfaces (HMI): DVI-I supports external monitors for visualization .

• Serial Device Control: RS232/485 interfaces for PLCs, sensors, or legacy equipment .

• Data Logging: USB ports enable external storage for diagnostics .

4. Installation & Compatibility

1. Required Components:

   • Must be paired with a CX1030 CPU module and CX1100-001x power supply .

2. Configuration:

   • Interfaces are auto-detected; RS232/485 modes are set via TwinCAT software .

3. Cooling:

   • Passive cooling via the CX1030’s fan module .

The structure and details of the product：
