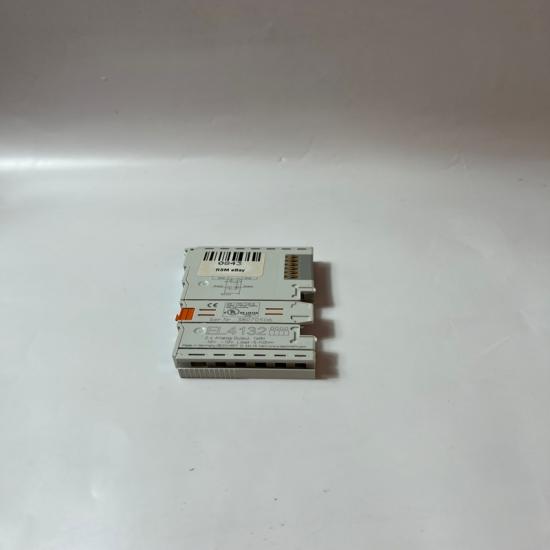

BECKHOFF EL4132 Analog Output Terminal

1. Product Overview

The BECKHOFF EL4132 is a 2-channel analog output terminal from the EtherCAT Terminal (EL) series, designed for high-precision voltage or current output in industrial automation systems. It integrates seamlessly with Beckhoff’s TwinCAT automation software and is widely used in motion control, process automation, and test/measurement applications.

2. Key Features

• 2-channel isolated output (configurable as ±10V or 0–20mA/4–20mA)

• 16-bit resolution for high-precision signal generation

• Short-circuit & overload protection for robust operation

• Galvanic isolation (500V between channels and fieldbus)

• Direct connection to actuators, valves, and drives

• EtherCAT communication for real-time control

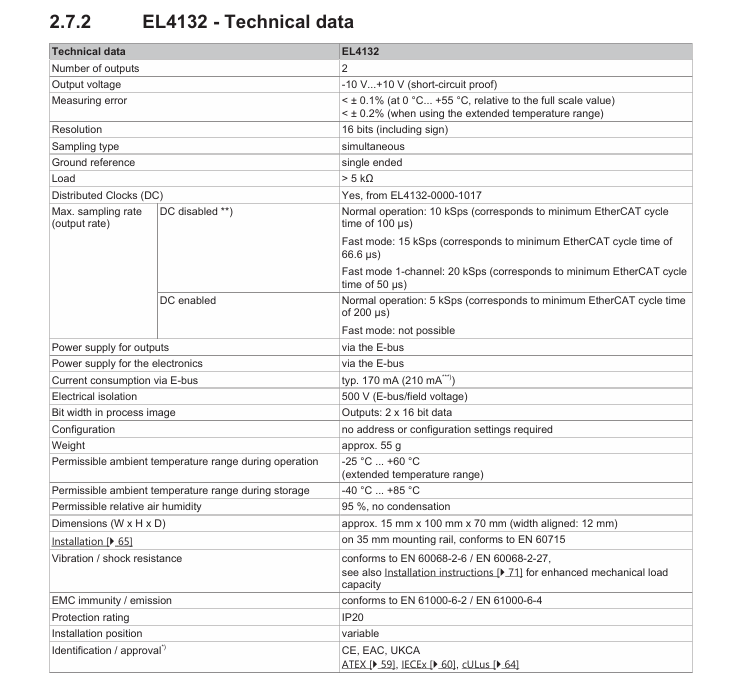

3. Technical Specifications

4. Typical Applications

• Motion control (servo drive speed/torque commands)

• Process automation (valve control, pressure regulation)

• Test & measurement (signal generation for sensors)

• Robotics (analog control signals for actuators)

5. Installation & Configuration

1. Wiring:

   • Use shielded twisted-pair cables for noise immunity.

   • Ensure proper grounding of the shield.

2. Configuration in TwinCAT:

   • Set output mode (voltage/current) via TwinCAT System Manager.

   • Adjust scaling and offset for application-specific ranges.

3. Diagnostics:

   • Monitor output status via TwinCAT Scope or PLC logic.

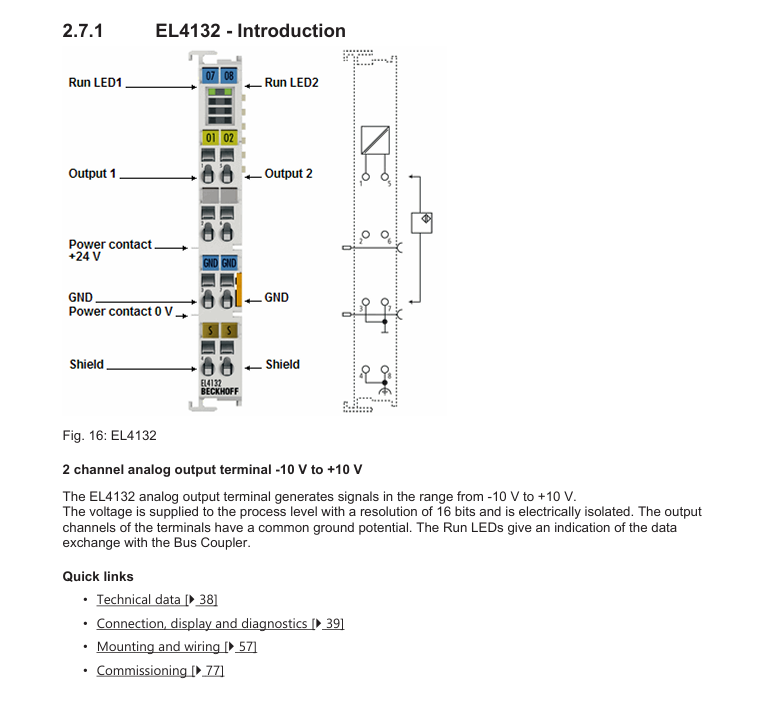

The structure and details of the product：
