BECKHOFF ZK4500-0003-0008 motor connection cable

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

BECKHOFF ZK4500-0003-0008 motor connection cable

1. Product Overview

The BECKHOFF ZK4500-0003-0008 is a motor connection cable designed for fixed installation in industrial automation systems. It is part of Beckhoff’s ZK4500 series, featuring M23 connectors and optimized for servo motor connections in high-performance applications such as CNC machines, robotics, and packaging systems.

Key Features:

• High-flexibility design for fixed installations in control cabinets.

• UL and CSA listed, ensuring compliance with international safety standards.

• Robust shielding to minimize electromagnetic interference (EMI).

• Pre-assembled M23 connectors (plug and socket) for secure connections.

• Orange PVC jacket for easy identification and durability.

2. Technical Specifications

3. Compatibility

The ZK4500-0003-0008 is compatible with:

• Beckhoff servo drives (AX5000, AX8000 series).

• Motor models requiring M23 connections (e.g., AM8000, AL2000 linear motors).

• Beckhoff motion control systems with FASTBUS or EtherCAT communication.

4. Installation & Usage Notes

1. Cable Length Consideration:

   • For cables longer than 25m, a motor choke is required to prevent signal distortion.

2. Bending Radius:

   • Maintain a minimum bending radius of 203 mm to avoid cable damage.

3. Shielding & Grounding:

   • Ensure proper shield termination at both ends to reduce EMI.

4. Connector Handling:

   • Secure M23 connectors tightly to prevent loosening due to vibration.

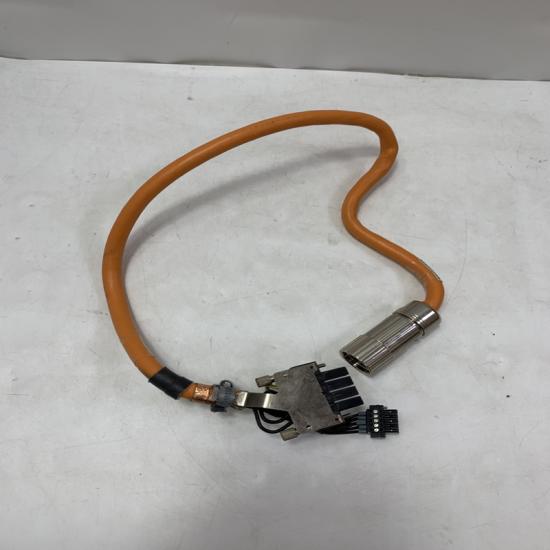

The structure and details of the product：
