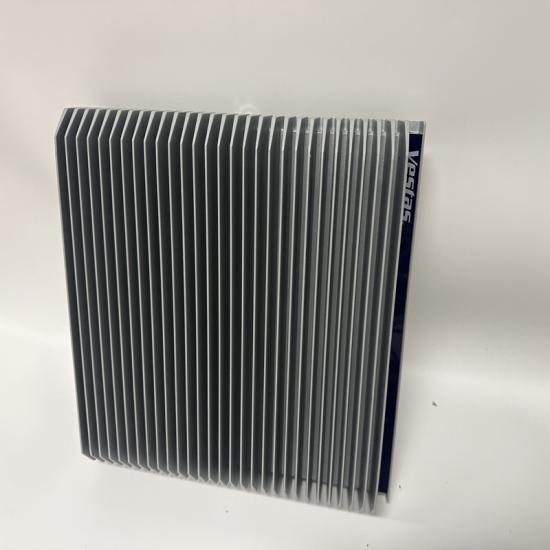

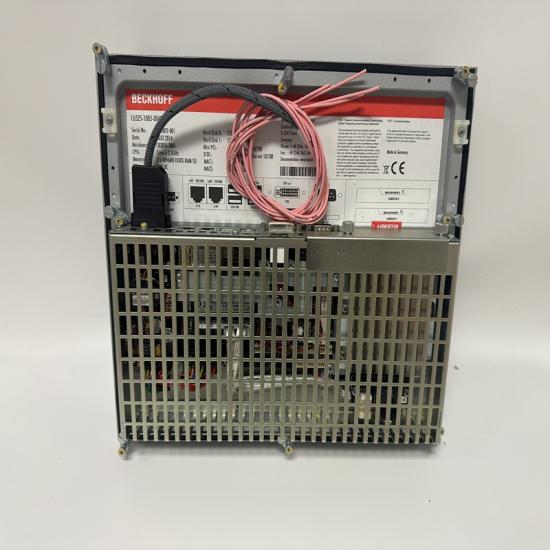

Beckhoff C6525-1005-0040 Industrial PC

Beckhoff C6525‑1005‑0040 | Industrial PC

Specifications

• Processor: Intel® Celeron® (dual‑core) / Core™ i3/i5/i7 (11th Gen)
• Motherboard: 3.5‑inch industrial motherboardBeckhoff
• Cooling: Fanless, passive cooling (no rotating parts)Beckhoff
• Protection: Front IP65 (dust/water jet resistant)Beckhoff
• Power Supply: 24 VDC (18–30 VDC), optional integrated UPSBeckhoff
• Operating Temp: 0 °C to +45 °C (ambient)
• Storage: 2.5” SATA SSD/HDD (optional RAID 1)
• Interfaces:
  • 2 × Ethernet (RJ45)
  • 4 × USB 2.0/3.0
  • 1 × DVI‑I (video output)
  • 1 × RS‑232/422/485 (serial)
• Expansion: 2 × PCIe slots (for fieldbus/communication cards)
• Mounting: Embedded in control cabinet/back panelBeckhoff
• Dimensions (W×H×D): 330 × 275 × 82 mm
• Weight: ~5.9 kg
• OS: Windows 10/11 IoT Enterprise, TwinCAT 3/4 compatible

Key Features

1. Fanless & maintenance‑free – high reliability in harsh industrial environmentsBeckhoff
2. IP65 front panel – suitable for wash‑down and dusty areasBeckhoff
3. Compact embedded design – saves cabinet space, easy installationBeckhoff
4. Dual Ethernet – redundant network for high availability
5. Wide voltage input + UPS option – stable power for critical applicationsBeckhoff
6. Long‑term availability – ≥6 years supply guarantee

Applications

• Factory automation & process control
• Machine‑level control (CNC, robotics)
• Data acquisition & edge computing
• Panel PC solutions (with Beckhoff Control Panels)Beckhoff
