                                • Beckhoff EL2004 Digital Output Terminal

                                  Product Type: EtherCAT Digital Output Terminal
                                  Model: EL2004
                                  Function: 4-Channel Digital Output, 24 V DC / 0.5 A
                                  Manufacturer: Beckhoff Automation

                                  The Beckhoff EL2004 is a 4-channel EtherCAT digital output terminal for switching 24 V DC control signals to field-level actuators. The outputs are electrically isolated from the E-bus and support resistive, inductive and lamp loads. Each channel has an LED status indicator.

                                  Technical Specifications

                                  Parameter	Specification
                                  Model	EL2004
                                  Product Type	EtherCAT Digital Output Terminal
                                  Number of Outputs	4
                                  Output Voltage	24 V DC (-15% / +20%)
                                  Output Current	Max. 0.5 A/channel
                                  Connection	2-wire
                                  Load Type	Resistive, inductive, lamp
                                  Switching Time	ON: typ. 60 µs / OFF: typ. 300 µs
                                  Short-Circuit Protection	Yes
                                  Reverse Polarity Protection	Yes
                                  Electrical Isolation	500 V
                                  E-bus Current	Approx. 100 mA
                                  Power Contact Current	Approx. 15 mA + load
                                  Process Image	4 output bits
                                  Distributed Clocks	No
                                  Weight	Approx. 55 g
                                  Mounting	35 mm DIN rail
                                  Protection Rating	IP20
                                  Operating Temperature	-25°C to +60°C
                                  Storage Temperature	-40°C to +85°C
                                  Dimensions	Approx. 12 × 100 × 68 mm

                                  The official Beckhoff specifications list 0.5 A maximum per channel, short-circuit protection, reverse-polarity protection and 500 V electrical isolation.

                                  Advantages & Features

                                  • 4 Digital Outputs: Controls four independent 24 V DC loads.
                                  • 0.5 A per Channel: Suitable for a wide range of industrial actuators.
                                  • Electrical Isolation: 500 V isolation between E-bus and field potential.
                                  • Wide Load Compatibility: Supports resistive, inductive and lamp loads.
                                  • Short-Circuit Protection: Helps protect the output channels during abnormal conditions.
                                  • Reverse Polarity Protection: Improves system reliability.
                                  • LED Status Indicators: Allows quick visual monitoring of each output.
                                  • Fast Switching: Typical ON time of 60 µs and OFF time of 300 µs.
                                  • Compact Design: Approximately 12 mm wide, saving valuable cabinet space.
                                  • Easy EtherCAT Integration: Designed for direct connection to Beckhoff EtherCAT systems.

                                  Typical Applications

                                  • Industrial automation
                                  • PLC control systems
                                  • Factory automation
                                  • Machine automation
                                  • Conveyor systems
                                  • Solenoid valve control
                                  • Relay and contactor control
                                  • Indicator and signal lamp control
                                  • Motor control circuits
                                  • Distributed EtherCAT I/O systems

The structure and details of the product：

Please make an inquiry for more models

Beckhoff    AX8620-0000-0000

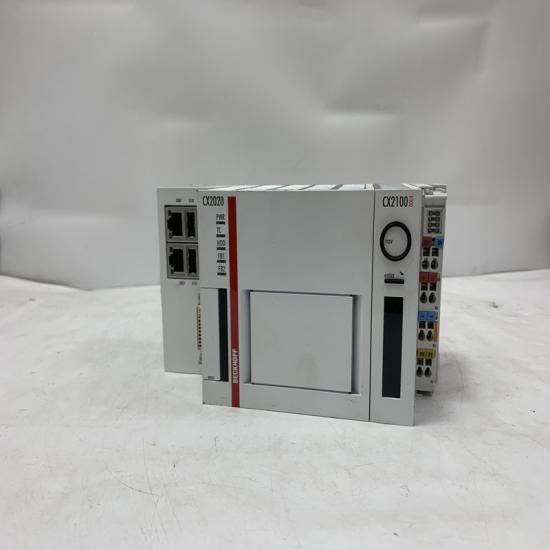

 BECKHOFF        CX2100-0004
