                              • Beckhoff EL3152 Analog Input Terminal

                                Product Type: EtherCAT Analog Input Terminal
                                Model: EL3152
                                Function: 2-Channel 4–20 mA Analog Input
                                Resolution: 16-bit
                                Manufacturer: Beckhoff Automation

                                The Beckhoff EL3152 is a 2-channel EtherCAT analog input terminal for measuring 4–20 mA current signals. It provides 16-bit resolution, electrical isolation, fast signal conversion, wire-break and overload diagnostics, and direct integration with EtherCAT control systems.

                                Technical Specifications

                                Parameter	Specification
                                Model	EL3152
                                Product Type	EtherCAT Analog Input Terminal
                                Number of Inputs	2
                                Input Type	Single-ended
                                Signal Range	4–20 mA
                                Resolution	16 bit
                                Sampling	Simultaneous
                                Internal Resistance	Approx. 85 Ω + diode voltage
                                Input Filter	Up to 5 kHz
                                Conversion Time	Approx. 50 µs; Fast Mode approx. 35 µs
                                Measurement Error	< ±0.3% at 0 to +55°C
                                Electrical Isolation	500 V
                                E-bus Current	Approx. 170 mA
                                Distributed Clocks	Yes, depending on revision
                                Diagnostics	Overload and wire-break detection
                                Process Image	2 × 16-bit inputs + status data
                                Mounting	35 mm DIN rail
                                Protection Rating	IP20
                                Operating Temperature	-25°C to +60°C
                                Dimensions	12 × 100 × 68 mm
                                Weight	Approx. 60 g

                                Specifications are based on Beckhoff's official product documentation.

                                Advantages & Features

                                • 2-Channel Input: Supports two independent 4–20 mA signals.
                                • 16-Bit Resolution: Provides accurate analog signal acquisition.
                                • Fast Conversion: Approximately 50 µs, with Fast Mode down to about 35 µs.
                                • Simultaneous Sampling: Both channels can be sampled simultaneously.
                                • Built-In Diagnostics: Detects overload and broken-wire conditions.
                                • Electrical Isolation: 500 V isolation between E-bus and field signal.
                                • Flexible Filtering: Supports configurable FIR/IIR filters.
                                • Limit Monitoring: Integrated limit-value monitoring simplifies process supervision.
                                • Compact Design: Only 12 mm wide, saving valuable control cabinet space.
                                • EtherCAT Integration: Designed for direct connection to Beckhoff EtherCAT systems.

                                Typical Applications

                                • Industrial automation
                                • Process control
                                • PLC and EtherCAT systems
                                • Pressure and flow measurement
                                • Temperature transmitters
                                • Level monitoring
                                • Industrial instrumentation
                                • Machine monitoring
                                • Factory automation
                                • Chemical and pharmaceutical processing

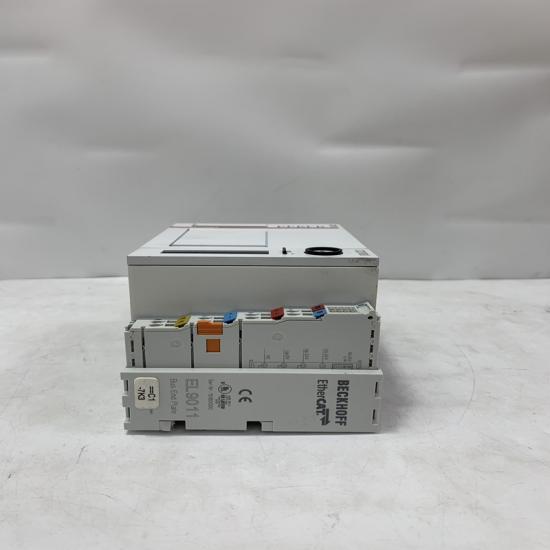

The structure and details of the product：
