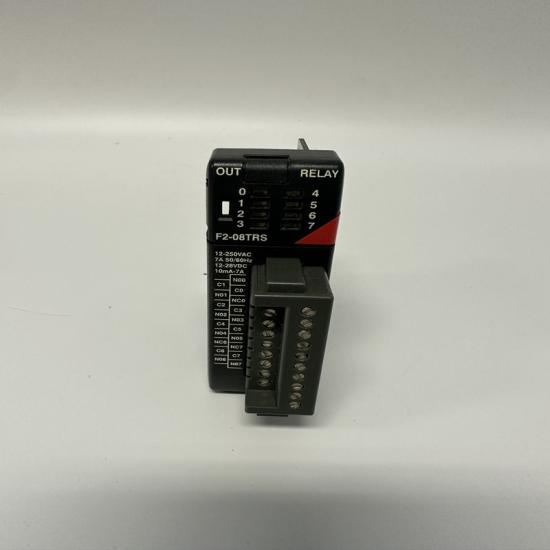

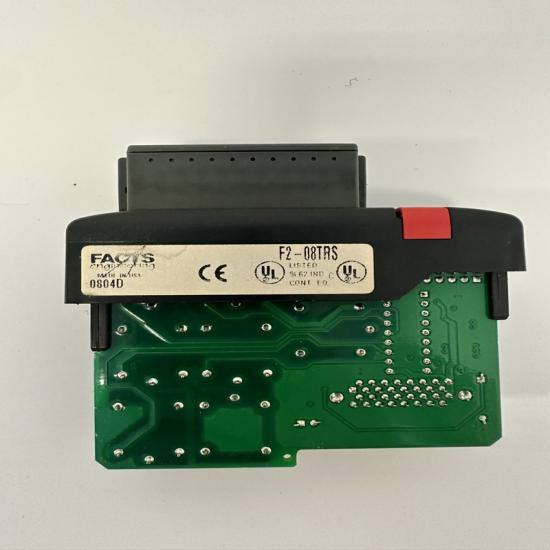

AutomationDirect F2-08TRS | Relay Output Module

Manufacturer: AutomationDirect (Koyo)

Model: F2-08TRS

Series: DirectLogic 205 (DL205)

Type: 8‑Point Isolated Relay Output Module

Status: Active

Alias: F208TRS, DL205 8‑pt relay out


Specifications

  • Output Points: 8 isolated relay outputs
  • Relay Types: 5 × Form A (SPST, NO); 3 × Form C (SPDT, NO/NC)
  • Voltage Range: 12–28 VDC / 12–250 VAC
  • Max Load Current: 7 A per point (resistive)
  • Isolation: 8 fully isolated commons (1 point per common)
  • Min Load Current: 10 mA @ 12 VDC
  • Max Inrush Current: 12 A (10 ms)
  • Response Time: 10 ms (ON→OFF), 12 ms (OFF→ON)
  • Backplane Power: 5 VDC @ 250 mA (max)
  • Terminals: Removable 19‑pin screw terminal block (included)
  • Indicators: Individual LED status per channel (logic side)
  • Operating Temp: 0 °C to +55 °C
  • Dimensions (W×H×D): 3.3 × 8.9 × 6.4 cm approx.
  • Weight: 0.16 kg (0.33 lb)
  • Certifications: UL, CE, RoHS

Key Features

  1. Mixed Relay Config: 5 NO + 3 NO/NC contacts for flexible load control
  2. Full Isolation: 8 independent commons eliminate cross‑talk between channels
  3. Wide Voltage Support: Works with both DC and AC loads (up to 250 VAC)
  4. High Current Rating: 7 A per point for direct control of motors, solenoids, heaters
  5. Removable Terminals: Simplifies wiring and module replacement

Applications

  • Factory automation, material handling, conveyor systems
  • Control of solenoids, contactors, small motors, heaters, lamps
  • Systems requiring isolated, mixed NO/NC relay outputs
