                                                                                                    AutomationDirect EA7-S6M C-more HMI Operator Panel

                                                                                                    The AutomationDirect EA7-S6M is a 6-inch C-more EA7 Series touchscreen HMI/operator interface with a 5.7-inch viewable grayscale STN display, 320 × 240 QVGA resolution, built-in Ethernet and USB, and CompactFlash support. It operates from 24 VDC and has 10 MB user memory. AutomationDirect lists this model as discontinued, with the EA9-T6CL identified as a direct replacement.

                                                                                                    Key Technical Specifications

                                                                                                    Specification Details
                                                                                                    Brand AutomationDirect
                                                                                                    Model EA7-S6M
                                                                                                    Product Type C-more HMI Operator Panel
                                                                                                    Series EA7
                                                                                                    Display Size 6 in
                                                                                                    Viewable Area 5.7 in
                                                                                                    Display Type STN LCD
                                                                                                    Display Color Grayscale, 15 shades
                                                                                                    Resolution 320 × 240 pixels
                                                                                                    CPU 333 MHz
                                                                                                    User Memory 10 MB
                                                                                                    Touchscreen Analog resistive touchscreen
                                                                                                    Operating Voltage 24 VDC
                                                                                                    Operating Range 20.4–28.8 VDC
                                                                                                    Power Consumption Approx. 10 W
                                                                                                    Ethernet 1 × Ethernet
                                                                                                    USB 2 × USB
                                                                                                    Serial Port 1 × Serial
                                                                                                    Memory Card CompactFlash supported
                                                                                                    Protection NEMA 4/4X, IP65 when properly mounted
                                                                                                    Backlight Non-replaceable, 50,000-hour half-life
                                                                                                    Operating Environment Indoor use
                                                                                                    Mounting Panel mount
                                                                                                    Status Discontinued



                                                                                                    Advantages & Features

                                                                                                    • 5.7-inch viewable grayscale touchscreen.
                                                                                                    • 320 × 240 QVGA resolution.
                                                                                                    • Built-in Ethernet and dual USB ports.
                                                                                                    • Supports CompactFlash memory.
                                                                                                    • 10 MB project/user memory.
                                                                                                    • 24 VDC industrial power supply.
                                                                                                    • NEMA 4/4X and IP65 protection when correctly panel-mounted.
                                                                                                    • Designed for graphical PLC/HMI monitoring and operator control.

                                                                                                    Typical Applications



                                                                                                    • PLC operator interfaces
                                                                                                    • Machine control and monitoring
                                                                                                    • Factory automation
                                                                                                    • Production and assembly equipment
                                                                                                    • Conveyor systems
                                                                                                    • Process monitoring
                                                                                                    • Industrial equipment diagnostics

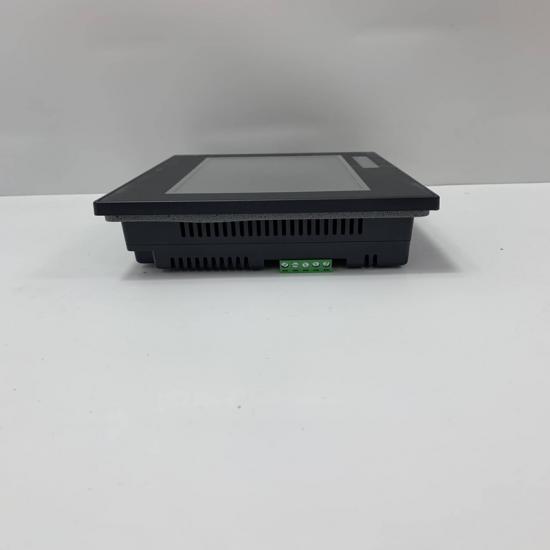

The structure and details of the product：
