AutomationDirect D4-32TD2 Digital Output Module

D4-32TD2
D4-32TD2

AutomationDirect D4-32TD2 Digital Output Module

AutomationDirect D4-32TD2 Digital Output Module

  • Item NO.:

    D4-32TD2

  • Payment:

    T/T

  • Price:

    $295

  • Product Origin:

    CHINA

  • Color:

    NEW

  • Product weight:

    0.02KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                              • AutomationDirect D4-32TD2 Digital Output Module

                                                                Product Description

                                                                The AutomationDirect D4-32TD2 is a 32-point DC Digital Output Module from the DirectLOGIC DL405 PLC Series. It provides 32 transistor-based sourcing (PNP) DC outputs for controlling industrial field devices such as solenoid valves, relays, contactors, indicator lamps, and actuators.

                                                                This module supports 12–24 VDC output operation, features four isolated output commons, and is designed for use with DL405 PLC systems in industrial automation applications.

                                                                Detailed Specifications

                                                                Parameter Specification
                                                                Manufacturer AutomationDirect
                                                                Model D4-32TD2
                                                                Product Type Digital Output Module
                                                                Series DirectLOGIC DL405
                                                                Output Points 32 Points
                                                                Output Type DC Transistor Output
                                                                Output Mode Sourcing (PNP)
                                                                Rated Voltage 12–24 VDC
                                                                Operating Voltage Range 10.8–26.4 VDC
                                                                Output Current 0.2 A / point
                                                                Maximum Current 1 A / common, 4 A / module
                                                                Output Commons 4 Isolated Commons
                                                                Peak Voltage 30 VDC
                                                                Response Time 0.2 ms ON/OFF
                                                                Leakage Current 0.01 mA @ 26.4 VDC
                                                                Mounting DL405 PLC Base
                                                                Programming Software DirectSOFT
                                                                Terminal Type Connector type (ZIPLink compatible)
                                                                Weight Approx. 190 g



                                                                Advantages & Features

                                                                • 32-channel high-density digital output design
                                                                • Supports 12–24 VDC industrial control devices
                                                                • PNP sourcing transistor outputs for fast switching
                                                                • Four isolated commons improve wiring flexibility
                                                                • Fast response time for high-speed automation control
                                                                • Suitable for relay, solenoid, valve, and actuator control
                                                                • Compact PLC expansion module design
                                                                • Compatible with DirectLOGIC DL405 PLC systems



                                                                Applications

                                                                • Factory Automation Systems
                                                                • PLC Control Cabinets
                                                                • Packaging Machinery
                                                                • Conveyor Systems
                                                                • Motor Starter Control
                                                                • Solenoid Valve Control
                                                                • Process Automation Equipment
                                                                • Machine Building Applications

                                                                Precautions

                                                                • Confirm compatibility with AutomationDirect DL405 PLC systems before installation.
                                                                • Check that connected loads do not exceed 0.2 A per output point.
                                                                • Use proper external protection for inductive loads such as solenoids and relays.
                                                                • Verify 12–24 VDC wiring polarity before powering the module.
                                                                • Disconnect PLC power before installation or replacement.

The structure and details of the product：




Please make an inquiry for more models

AUTOMATION DIRECT Appleton GRC50-A

AutomationDirect EA3-S3ML-R

Automation Direct F2-16TD2P

Automation Direct  F2-08AD-1

AutomationDirect EA7-S6M

AUTOMATION DIRECT C0-08TR

Automation Direct MTR2-P33-3BD18

Automation Direct DVD-2AC4A-120A

Automation Direct    MS25-160

Automation Direct DN-QG12-2-2

Automation Direct 11TDT1W4S

AUTOMATION DIRECT   C0-08TR

AUTOMATION DIRECT  DL260

Automation Direct F0-04RTD

Automation Direct STP-MTRH-34127

Automation Direct  F0-04RTD

Automation Direct   P3-06DAS-1

 Automation Direct    P3-08B

 Automation Direct    P3-11B

 Automation Direct    P3-16TD1

 Automation Direct    P3-FILL

 Automation Direct   ZL-CBL40-2

 Automation Direct    ZL-P3-CBL20-2

 Automation Direct    ZL-RTB40-1

 Automation Direct    EA9-T15CL

Automation Direct   D2-260

AUTOMATION DIRECT   EA9-T15CL-R

AUTOMATION DIRECT EA9-7CL

AUTOMATION DIRECT   P3-550E

AUTOMATION DIRECT   D2-BAT-1

AUTOMATION DIRECT   P3-EX

AUTOMATION DIRECT   P3-SCM

AUTOMATION DIRECT   P3-16AD-1

 AUTOMATION DIRECT   P3-RTB

AUTOMATION DIRECT    P3-16DA-1

AUTOMATION DIRECT   P3-64ND3

Automation Direct ZL-RTB40-1

Automation Direct ZL-CBL40-2

Automation Direct P3-16TD1

Automation Direct P3-11B

Automation Direct P3-08B

Automation Direct P3-16AD-1

Automation Direct P3-RTB

Automation Direct P3-16DA-1

Automation Direct P3-64ND3

AUTOMATION DIRECT    F4-16AD-1

AUTOMATION DIRECT    D4-64TD1

AUTOMATION DIRECT    D4-64ND2

Automation Direct    EZ-220 EZA

AutomationDirect     D0-06DR-D

Automation Direct   P3-16AD1GE

Automation Direct D2-04B-1

Automation Direct F2-16TD2P

Automation Direct P3-SCM

Automation Direct EA9-T15CL



Automation Direct P3-550



Other best-selling products：

  1.
Hot Tags :

AUTOMATION DIRECT

D4-32TD2

PLC Module
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related products

EA9-T6CL
AUTOMATIONDIRECT EA9-T6CL C-more EA9 Series Touch Screen HMI

AUTOMATIONDIRECT EA9-T6CL C-more EA9 Series Touch Screen HMI

Details
D2-260
AUTOMATION DIRECT D2-260 CPU module

AUTOMATION DIRECT D2-260 CPU module

Details
F2-02DAS-1
AUTOMATION DIRECT F2-02DAS-1 Analog Output Module

AUTOMATION DIRECT F2-02DAS-1 Analog Output Module

Details
C0-08ND3
AUTOMATION DIRECT C0-08ND3 CLICK Discrete Input Module

AUTOMATION DIRECT C0-08ND3 CLICK Discrete Input Module

Details

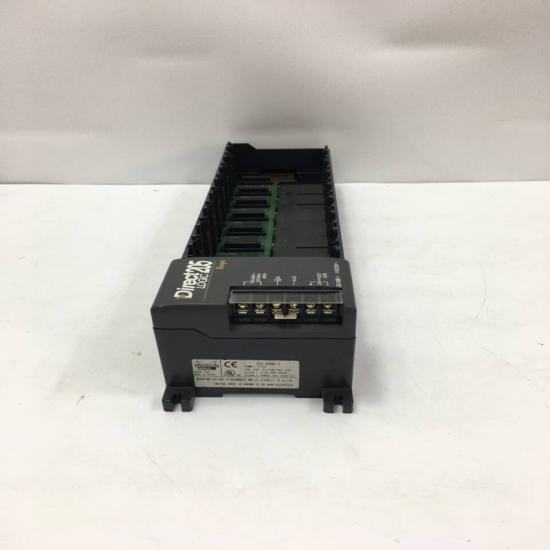

D2-09BDC1-1
