AutomationDirect D4-16TR Digital Output Module

D4-16TR
D4-16TR

AutomationDirect D4-16TR Digital Output Module

AutomationDirect D4-16TR Digital Output Module

  • Item NO.:

    D4-16TR

  • Payment:

    T/T

  • Price:

    $295

  • Product Origin:

    CHINA

  • Color:

    NEW

  • Product weight:

    0.02KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                                                                  •

                                                                                                    AutomationDirect D4-16TR Digital Output Module

                                                                                                    Product Overview

                                                                                                    The AutomationDirect D4-16TR is a DirectLOGIC DL405 16-point relay output module. It provides 16 Form A (SPST-NO) relay outputs with two isolated commons, supporting both AC and DC loads.

                                                                                                    Key Technical Specifications

                                                                                                    Parameter Specification
                                                                                                    Brand AutomationDirect
                                                                                                    Series DirectLOGIC DL405
                                                                                                    Model D4-16TR
                                                                                                    Product Type Relay Digital Output Module
                                                                                                    Number of Outputs 16
                                                                                                    Output Type Form A (SPST-NO) Relay
                                                                                                    Output Voltage 6–24 VDC / 6–240 VAC
                                                                                                    Operating Range 5–30 VDC / 5–250 VAC
                                                                                                    Isolated Commons 2
                                                                                                    Points per Common 8
                                                                                                    Output Current 1 A/point, 5 A/common
                                                                                                    AC Frequency 47–63 Hz
                                                                                                    Terminal Block Removable
                                                                                                    Programming Software DirectSOFT v4.0 or later
                                                                                                    PLC Series DL405
                                                                                                    Shipping Weight Approx. 0.87 lb (0.39 kg)
                                                                                                    Country of Origin China
                                                                                                    HS Code 8537.10



                                                                                                    Advantages & Features

                                                                                                    • 16 independent relay outputs
                                                                                                    • Supports both AC and DC loads
                                                                                                    • Two isolated commons provide flexible wiring
                                                                                                    • Form A normally-open relay configuration
                                                                                                    • Removable terminal block for convenient maintenance
                                                                                                    • Suitable for a wide range of industrial loads
                                                                                                    • Designed specifically for DirectLOGIC DL405 PLC systems

                                                                                                    Typical Applications

                                                                                                    • Factory automation
                                                                                                    • Machine control
                                                                                                    • Packaging equipment
                                                                                                    • Conveyor systems
                                                                                                    • Motor and actuator control
                                                                                                    • Solenoid and valve control
                                                                                                    • Industrial production lines
                                                                                                    • General PLC output switching

                                                                                                    Important Notes

                                                                                                    • Verify the load voltage and current before connection.
                                                                                                    • Maximum rated load is 1 A per point and 5 A per common.
                                                                                                    • Relay outputs are mechanical contacts and have a finite operating life; inductive loads can reduce relay life.
                                                                                                    • When using the ZIPLink wiring system, the outputs are derated to 2 A/point and 4 A/common maximum according to AutomationDirect.
                                                                                                    • Confirm compatibility with the DL405 CPU/base configuration before installation.
                                                                                                    • Follow appropriate electrical isolation, grounding, and protection practices.

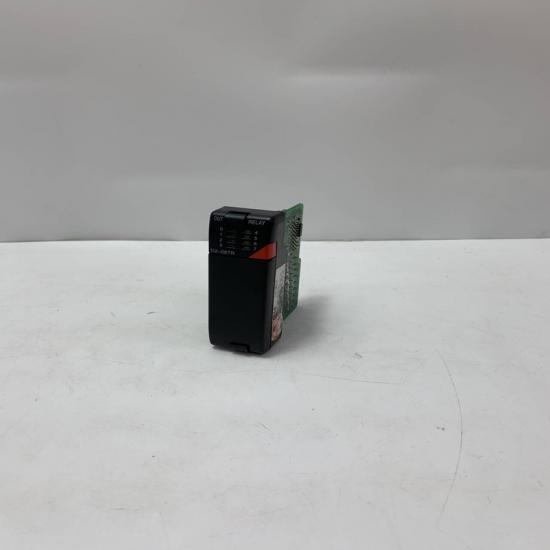

The structure and details of the product：
