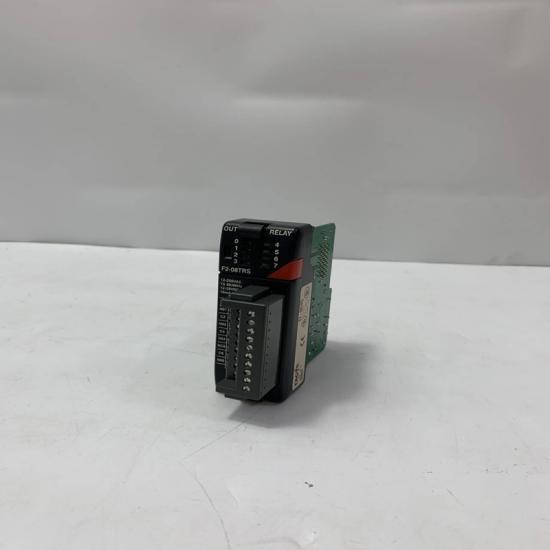

AUTOMATION DIRECT F2-08TRS Relay Output Module

F2-08TRS
F2-08TRS

AUTOMATION DIRECT F2-08TRS Relay Output Module

AUTOMATION DIRECT F2-08TRS Relay Output Module

  • Item NO.:

    F2-08TRS

  • Payment:

    T/T

  • Price:

    $100

  • Product Origin:

    CHINA

  • Color:

    NEW

  • Product weight:

    0.16KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.



AUTOMATION DIRECT F2-08TRS Relay Output Module

Product Overview

The AUTOMATION DIRECT F2-08TRS is an 8-channel relay output module designed for industrial automation systems, particularly compatible with DirectLOGIC DL205 series PLCs. It provides isolated relay outputs for switching AC/DC loads, making it suitable for controlling motors, solenoids, and other industrial devices.

Key Features & Technical Specifications

1. Output Configuration

  • 8 relay outputs (Form A, SPST – Normally Open) .

  • Voltage range:

    • 12–24V DC (7A max per point)

    • 12–240V AC (10A max per point) .

  • Isolation: 2 isolated commons (4 points per common) for flexible wiring .

2. Electrical & Protection Features

  • Max inrush current: 12A (resistive load) .

  • Response time:

    • OFF → ON: ~15 ms (typical)

    • ON → OFF: ~5 ms (typical) .

  • Terminal type: Removable screw terminals (D2-8IOCON included) .

3. Environmental & Mechanical Specs

  • Operating temperature: -25°C to +60°C .

  • Protection rating: IP20 (dust-resistant) .

  • Weight: 156g (5.5 oz) .

4. Certifications & Compliance

  • CE, UL, ATEX (Zone 2) compliant for industrial use .

Applications

  1. Industrial Automation: Switching motors, valves, and solenoids in PLC-controlled systems .

  2. Process Control: AC/DC load control in chemical and water treatment plants .

  3. Energy Systems: Power distribution and relay-based control in electrical panels .

Installation & Usage Notes

  1. Wiring: Use shielded cables for noise-sensitive applications.

  2. Load Compatibility: Ensure load current does not exceed 10A per common .

  3. Maintenance: Check relay contacts periodically for wear in high-frequency switching applications.



The structure and details of the product：
