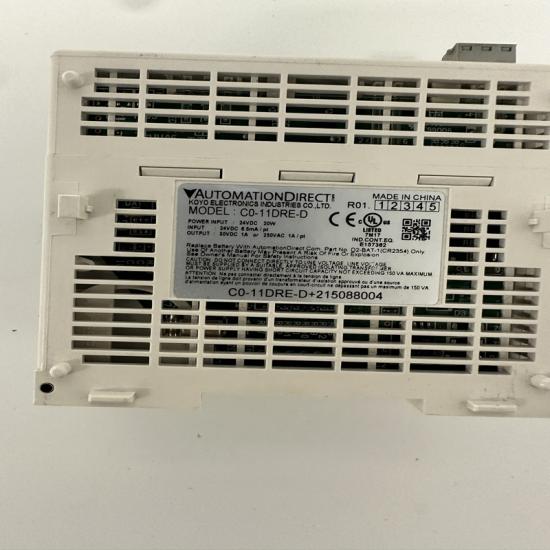

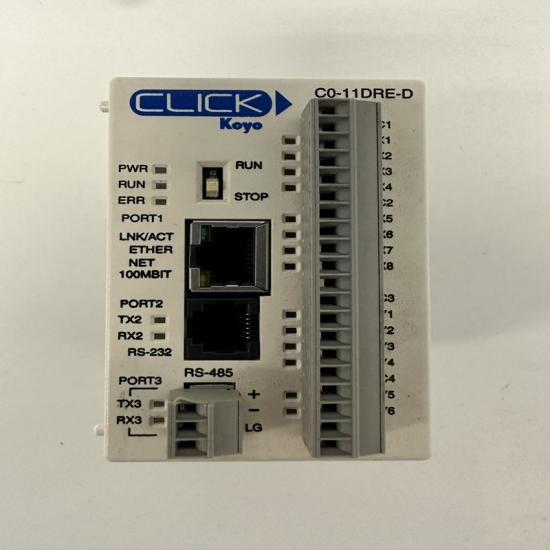

Automation Direct C0-11DRE-D PLC Relay Output Module

AutomationDirect C0-11DRE-D PLC Relay Output Module (CLICK Series PLC)





The AutomationDirect C0-11DRE-D is a compact PLC CPU (CLICK series) with built-in I/O, including relay output channels. It is commonly used in small to medium industrial automation systems for simple machine control, logic processing, and relay switching.

It is important to note: this is not just an output module, but a complete micro PLC with integrated relay outputs.

Key Specifications

• Model: C0-11DRE-D
• Brand: AutomationDirect (CLICK PLC series)
• Product Type: Micro PLC CPU with built-in I/O
• Inputs:
  • 8 × 24V DC digital inputs
• Outputs:
  • 6 × relay outputs (Form A / SPST)
• Output Rating:
  • Up to 240 VAC / 27 VDC switching capability
  • ~1A per point (typical industrial load control)
• Communication:
  • Ethernet (Modbus TCP)
  • RS-232
  • RS-485
• Power Supply:
  • 24V DC
• Programming:
  • Ladder logic (CLICK programming software)

What it does (simple explanation)

This device works as a small industrial brain + relay switch system:

Sensors → C0-11DRE-D PLC → Relay outputs → Motors / lamps / solenoids / alarms

So it can:

• Read sensor signals (8 inputs)
• Execute logic program (ladder)
• Turn devices ON/OFF via relay outputs (6 channels)

Relay Output Function (important for your listing)

The relay outputs inside this PLC act like:

• A mechanical switch inside the PLC
• Can directly switch AC or DC loads
• Electrically isolated from control logic

Typical uses:

• Solenoid valves
• Small motors (via contactor)
• Alarm lights / buzzers
• Heater control (low power)
• Interlocking circuits

Key Features & Advantages

• Compact all-in-one PLC (CPU + I/O integrated)
• Real relay outputs (good for mixed AC/DC loads)
• Easy programming via CLICK software
• Built-in Ethernet communication (Modbus TCP)
• Expandable with additional I/O modules
• Low-cost solution for machine automation
• Reliable for simple industrial control tasks

Applications

• Small machinery control systems
• Conveyor systems
• Packaging machines
• Pump control systems
• Lighting / alarm automation
• HVAC and building automation
• General industrial switching control
