ADLink PCI-6308A DAQ Card

PCI-6308A
PCI-6308A

ADLink PCI-6308A DAQ Card

ADLink PCI-6308A DAQ Card

  • Item NO.:

    PCI-6308A

  • Payment:

    T/T

  • Price:

    $295

  • Product Origin:

    CHINA

  • Color:

    NEW

  • Product weight:

    0.02KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                        •

                              • ADLink PCI-6308A

                                Manufacturer: ADLINK Technology

                                Model: PCI-6308A

                                Type: 8‑Channel Isolated Analog Output DAQ Card (Voltage + Current)

                                Series: PCI‑6308

                                Part No.: PCI‑6308A


                                Specifications

                                • Bus Interface: 32‑bit 5 V PCIADLINK
                                • D/A Resolution: 12‑bit (no missing codes)ADLINK
                                • Analog Output:
                                  • Voltage: 8‑channel isolated, ±10 V (bipolar), 0–10 V (unipolar)
                                  • Current: 8‑channel isolated, 0–20 mA / 4–20 mA / 5–25 mA (software‑selectable)
                                  • Settling Time: 16 µs (voltage), 17 µs (current)
                                  • Load Range: 0–500 Ω (current output)
                                • Digital I/O:
                                  • Input: 4‑channel isolated, 5–24 VDC (logic 1), 0–1.5 VDC (logic 0)
                                  • Output: 4‑channel isolated, 5–35 VDC, 50 mA sink per channel
                                • Isolation: 2500 Vrms (analog & digital channels to PC)ADLINK
                                • Connector: 37‑pin D‑sub female
                                • Operating Temperature: 0 °C to +60 °C
                                • Dimensions (L×W): 175 × 107 mm
                                • Weight: Approx. 0.51 kg

                                Key Features

                                • Dual‑mode Output: Combines 8‑channel voltage and current outputs, ideal for driving industrial transmitters and actuators
                                • High Isolation: 2500 Vrms optical isolation protects PC from high‑voltage surges and ground loopsADLINK
                                • Software‑configurable Ranges: Current ranges (0–20 mA / 4–20 mA) and voltage ranges (±10 V / 0–10 V) for flexible sensor/actuator integration
                                • Integrated DIO: 4 isolated DI + 4 isolated DO for direct control of relays and status monitoring
                                • Compact Half‑size Design: Fits standard PC slots for easy integration into industrial systems

                                Applications

                                • Industrial process control (4–20 mA transmitters, valves)
                                • Analog signal simulation & ATE (Automated Test Equipment)
                                • Servo/stepper motor control
                                • PLC replacement & motion control systems
                                • Environmental monitoring & data logging

The structure and details of the product：




Please make an inquiry for more models

AUTOMATION DIRECT Appleton GRC50-A

AutomationDirect EA3-S3ML-R

Automation Direct F2-16TD2P

Automation Direct  F2-08AD-1

AutomationDirect EA7-S6M

AUTOMATION DIRECT C0-08TR

Automation Direct MTR2-P33-3BD18

Automation Direct DVD-2AC4A-120A

Automation Direct    MS25-160

Automation Direct DN-QG12-2-2

Automation Direct 11TDT1W4S

AUTOMATION DIRECT   C0-08TR

AUTOMATION DIRECT  DL260

Automation Direct F0-04RTD

Automation Direct STP-MTRH-34127

Automation Direct  F0-04RTD

Automation Direct   P3-06DAS-1

 Automation Direct    P3-08B

 Automation Direct    P3-11B

 Automation Direct    P3-16TD1

 Automation Direct    P3-FILL

 Automation Direct   ZL-CBL40-2

 Automation Direct    ZL-P3-CBL20-2

 Automation Direct    ZL-RTB40-1

 Automation Direct    EA9-T15CL

Automation Direct   D2-260

AUTOMATION DIRECT   EA9-T15CL-R

AUTOMATION DIRECT EA9-7CL

AUTOMATION DIRECT   P3-550E

AUTOMATION DIRECT   D2-BAT-1

AUTOMATION DIRECT   P3-EX

AUTOMATION DIRECT   P3-SCM

AUTOMATION DIRECT   P3-16AD-1

 AUTOMATION DIRECT   P3-RTB

AUTOMATION DIRECT    P3-16DA-1

AUTOMATION DIRECT   P3-64ND3

Automation Direct ZL-RTB40-1

Automation Direct ZL-CBL40-2

Automation Direct P3-16TD1

Automation Direct P3-11B

Automation Direct P3-08B

Automation Direct P3-16AD-1

Automation Direct P3-RTB

Automation Direct P3-16DA-1

Automation Direct P3-64ND3

AUTOMATION DIRECT    F4-16AD-1

AUTOMATION DIRECT    D4-64TD1

AUTOMATION DIRECT    D4-64ND2

Automation Direct    EZ-220 EZA

AutomationDirect     D0-06DR-D

Automation Direct   P3-16AD1GE

Automation Direct D2-04B-1

Automation Direct F2-16TD2P

Automation Direct P3-SCM

Automation Direct EA9-T15CL



Automation Direct P3-550



Other best-selling products：

  1.
Hot Tags :

AUTOMATION DIRECT

PCI-6308A

PLC Module
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related products

EA9-T6CL
AUTOMATIONDIRECT EA9-T6CL C-more EA9 Series Touch Screen HMI

AUTOMATIONDIRECT EA9-T6CL C-more EA9 Series Touch Screen HMI

Details
D2-260
AUTOMATION DIRECT D2-260 CPU module

AUTOMATION DIRECT D2-260 CPU module

Details
F2-02DAS-1
AUTOMATION DIRECT F2-02DAS-1 Analog Output Module

AUTOMATION DIRECT F2-02DAS-1 Analog Output Module

Details
C0-08ND3
AUTOMATION DIRECT C0-08ND3 CLICK Discrete Input Module

AUTOMATION DIRECT C0-08ND3 CLICK Discrete Input Module

Details
D2-09BDC1-1

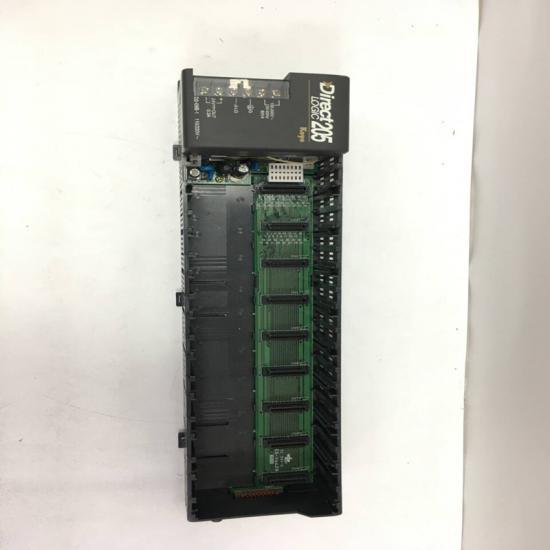

AUTOMATION DIRECT D2-09BDC1-1 DirectLOGIC DL205 I/O Base
