PHOENIX CONTACT 2866323 Terminal Block Module

Product Description

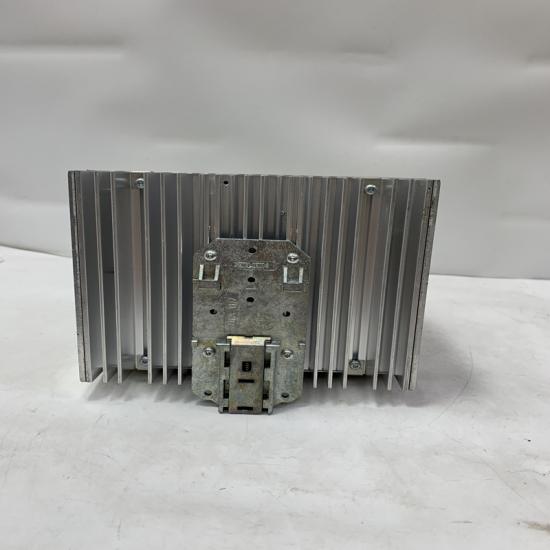

PHOENIX CONTACT 2866323 is not a Terminal Block Module. It is a TRIO-PS/1AC/24DC/10 DIN Rail Power Supply Unit manufactured by Phoenix Contact. It is used to convert AC input power into regulated 24V DC output power for industrial automation systems.

This module belongs to the TRIO POWER series and is commonly used for supplying PLCs, I/O modules, sensors, relays, and other industrial control equipment.

Specifications

• Brand: PHOENIX CONTACT
• Model: 2866323
• Product Type: DIN Rail Switching Power Supply
• Series: TRIO POWER
• Input Voltage: 85–264 VAC
• Input Phase: 1 Phase
• Output Voltage: 24 VDC
• Output Current: 10 A
• Output Power: 240 W
• Output Adjustment Range: Approx. 22.5–29.5 VDC
• Mounting: DIN Rail Mount
• Protection Rating: IP20
• Connection Type: Screw Terminal
• Dimensions: Approx. 60 × 130 × 152.5 mm
• Operating Temperature: -25°C to +70°C

Functions

• Converts AC mains voltage into stable 24V DC power
• Provides power supply for PLC and automation equipment
• Maintains regulated DC voltage for control circuits
• Supports industrial control cabinet power distribution
• Provides protection against overload and short circuit conditions

Advantages & Features

• Reliable 24VDC power source for industrial automation
• DIN rail installation saves cabinet space
• Wide input voltage range for global applications
• Adjustable output voltage compensation
• High reliability with industrial-grade design
• Suitable for continuous operation in control systems

Applications

• PLC control cabinets
• Industrial automation systems
• Machine control equipment
• Sensors and actuators power supply
• Factory electrical panels
• Process control systems

Notes

• 2866323 is a power supply module, not a terminal block
• Confirm AC input voltage before installation
• Ensure 24VDC output capacity meets load requirements
• Use proper grounding and wiring methods
• Install in a ventilated control cabinet environment
