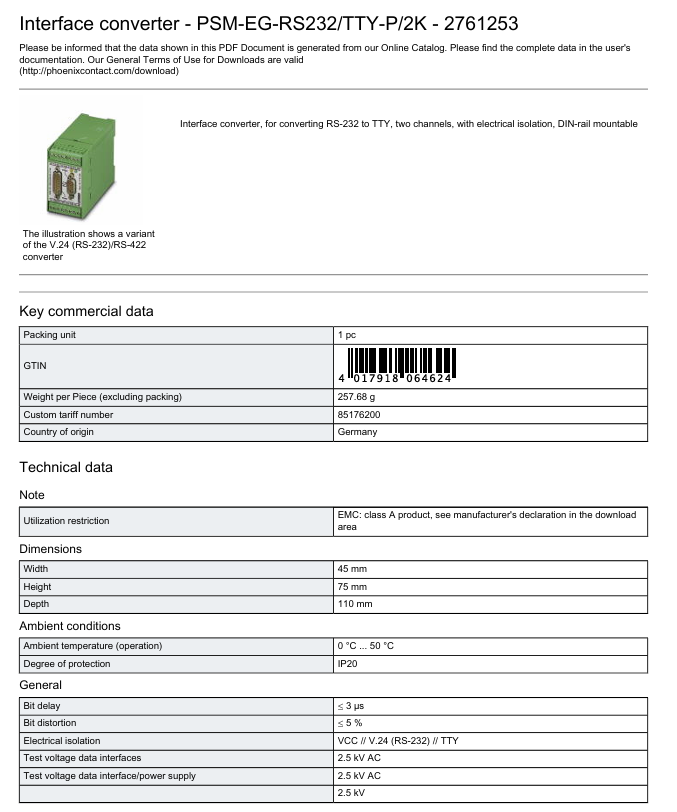

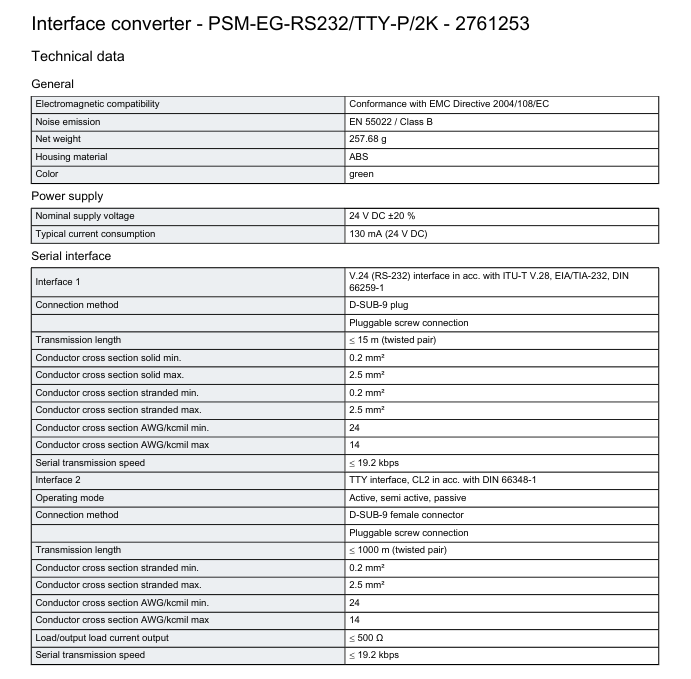

PHOENIX PSM-EG-RS232/TTY-P/2K Interface Converter

• Bidirectional Data Conversion: It supports bidirectional data conversion between RS232 and TTY interfaces, quickly and accurately converting RS232 protocol data into TTY protocol data and vice versa. This ensures seamless data transmission between devices with different interfaces, avoiding communication interruptions and data loss.​

• Electrical Isolation Protection: Using advanced electrical isolation technology with an isolation voltage of up to 2000V, it effectively isolates electrical interference, surges, and ground loops between the input and output terminals. This enhances the system's anti-interference ability, prevents device damage caused by electrical fluctuations, and ensures the stability and security of data transmission.​

• Flexible Parameter Configuration: It supports flexible setting of communication parameters such as baud rate, data bits, stop bits, and parity check through DIP switches or configuration software. It can be adapted to multiple communication protocols and devices, meeting the personalized communication requirements in different industrial application scenarios.​

• Real-time Status Monitoring: Equipped with intuitive LED status indicator lights, it can display the device's power status, data transmission status, and error information in real time. This enables users to quickly determine the device's operating conditions, troubleshoot communication faults in a timely manner, and improve maintenance efficiency.​

• Interface Specifications: It has 1 RS232 interface and 1 TTY interface. The interfaces comply with relevant international standards and support standard DB9 connectors, ensuring stable and reliable connections.​

• Communication Rate: It supports a variety of baud rate settings from 300bps to 115200bps, which can be flexibly adjusted according to actual application requirements to meet different data transmission rate requirements.​

• Electrical Characteristics: The operating power supply is DC 24V with low power consumption. The input and output signals comply with RS232 and TTY electrical standards, with minimal signal transmission delay, ensuring fast and accurate data transmission.​

• Working Environment: The operating temperature range is -40°C - 70°C, and the storage temperature is -40°C - 85°C; the relative humidity is 5% - 95% (non-condensing); the protection level is IP20, adapting to harsh industrial environments and conventional commercial environments.​

• High Reliability and Stability: Using industrial-grade high-quality components, and through strict aging tests and quality inspections, it has excellent vibration resistance and electromagnetic interference resistance. The Mean Time Between Failures (MTBF) exceeds 150,000 hours, ensuring long-term stable operation of the device.​

• Convenient Installation: With a compact design, it supports standard 35mm DIN rail installation or wall-mounted installation, providing flexible installation methods. The wiring is simple, and it requires no complex debugging, allowing for quick deployment and saving installation time and costs.​

• Strong Compatibility: It is highly compatible with mainstream PLCs, HMIs, sensors, controllers, and other devices in the market. It can be seamlessly integrated into existing communication systems, effectively solving the interface adaptation problems between different devices and enhancing the flexibility of system integration.​

• Safety Assurance: The comprehensive electrical isolation and protection mechanisms can effectively resist electrical abnormalities and interference, providing reliable protection for the safety of devices and personnel and reducing the risk of system failures.​

• Industrial Automation Systems: In industrial production lines, smart factories, and other scenarios, it realizes the communication conversion of different interfaces between PLCs, sensors, actuators, and other devices, ensuring the accurate transmission of production data and improving the efficiency of automated control.​

• Communication Equipment Integration: Used in communication machine rooms, data centers, and other places, it solves the problem of incompatible interfaces between different communication devices, ensuring stable communication of network devices, servers, etc.​

• Transportation Monitoring: In transportation monitoring systems such as railways and highways, it realizes the data communication conversion between monitoring devices and control centers, ensuring the real-time and accurate transmission of traffic information.​

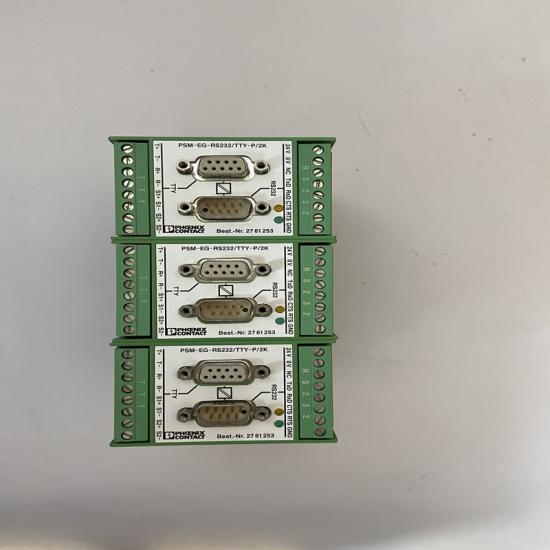

The structure and details of the product：
