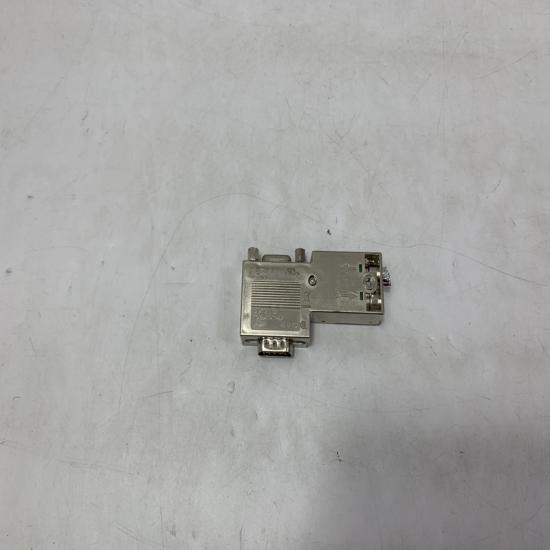

PHOENIX 2313685 D-Sub Standard Connector

• Reliable Electrical Connection: Using high-quality metal contacts, it has a low contact resistance and minimal signal transmission loss. It can stably transmit analog signals, digital signals, and power, ensuring the accuracy and integrity of data transmission. It can maintain good performance even in high-frequency signal transmission scenarios.​

• Robust and Durable Design: The housing is made of high-strength engineering plastic, which has good impact resistance, vibration resistance, and corrosion resistance. The internal pins are processed by special technology, and the number of insertions and removals can reach more than 500 times. It is durable and suitable for frequent connection requirements in harsh industrial environments.​

• Precise Interface Adaptation: Strictly designed according to the D-Sub standard interface specifications, the plug and socket are precisely matched and tightly connected, effectively preventing problems such as loosening and poor contact. It supports various pin number configurations (such as 9-pin, 15-pin, 25-pin, etc.) to adapt to the interface requirements of different devices.​

• Convenient Installation and Operation: Equipped with a convenient locking device, it can quickly achieve the insertion, removal, and fixation of the connector, and the installation process is simple and efficient. It also supports two installation methods, panel installation and direct cable connection, meeting the needs of diversified installation scenarios.​

• Interface Specifications: Comply with international D-Sub standards, and the pins are gold-plated to enhance conductivity and oxidation resistance.​

• Rated Voltage: Up to 250V AC/DC, meeting the voltage requirements of a variety of electrical devices.​

• Rated Current: The rated current per pin reaches 3A, which can carry a certain amount of power transmission.​

• Insulation Resistance: The insulation resistance is ≥1000MΩ, effectively isolating electrical interference between pins and ensuring connection safety.​

• Working Environment: The operating temperature range is -40°C - 85°C, and the storage temperature is -55°C - 125°C; the relative humidity is 10% - 95% (non-condensing); the protection level is IP20 (standard model), and some models offer higher protection level options.​

• High Stability: From material selection to the production process, strict control is carried out. After multiple reliability tests, it can still maintain stable connection performance in environments such as high temperature, low temperature, humidity, and vibration, ensuring the long-term stable operation of equipment.​

• Strong Compatibility: It is highly compatible with mainstream industrial equipment, computers, communication equipment, etc. in the market. Whether it is the transformation of old equipment or the construction of new systems, it can be easily adapted, reducing the difficulty of system integration.​

• Cost-effective: While ensuring high-quality performance, it has a good cost-performance ratio. Its long service life reduces the replacement frequency and effectively reduces equipment maintenance costs.​

• Fast Delivery: The standardized production mode ensures sufficient inventory, which can quickly respond to customer order requirements and shorten the project delivery cycle.​

• Industrial Automation Equipment: Used to connect devices such as PLCs, sensors, and drivers, realizing signal interaction and power supply between devices and ensuring the stable operation of automated production lines.​

• Communication Equipment: In communication equipment such as switches, routers, and modems, it completes the connection of data transmission lines to ensure stable transmission of communication signals.​

• Computers and Peripheral Equipment: Suitable for connecting computer hosts with external devices such as monitors, printers, and scanners, transmitting video, data, and control signals.​
•
•

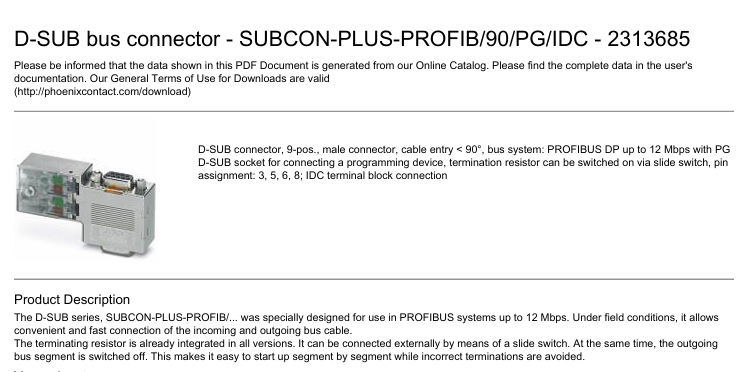

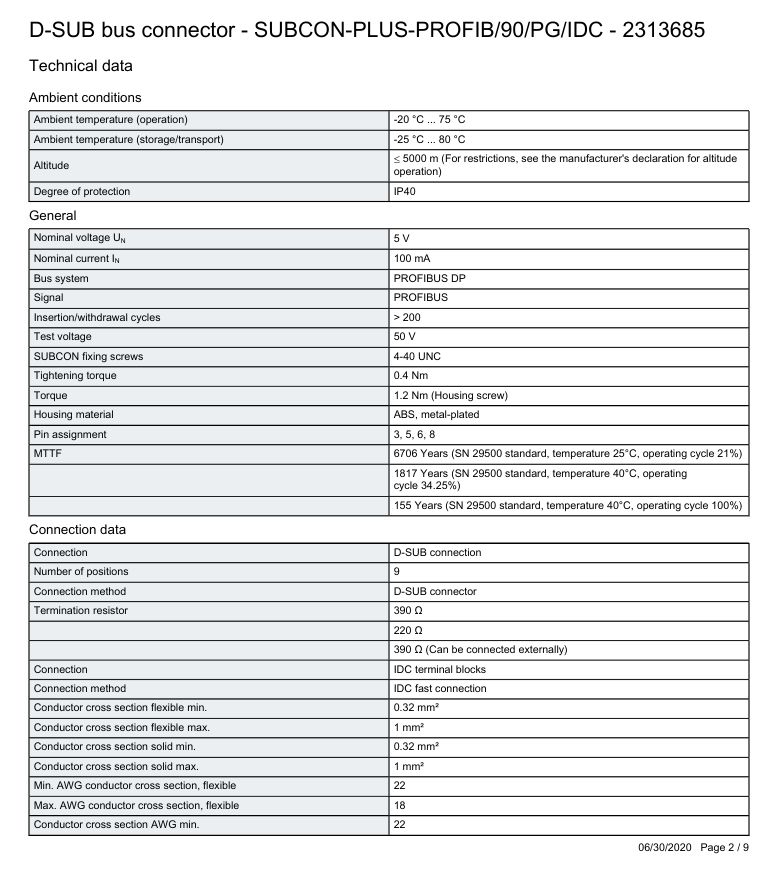

The structure and details of the product：

Please make an inquiry for more models
