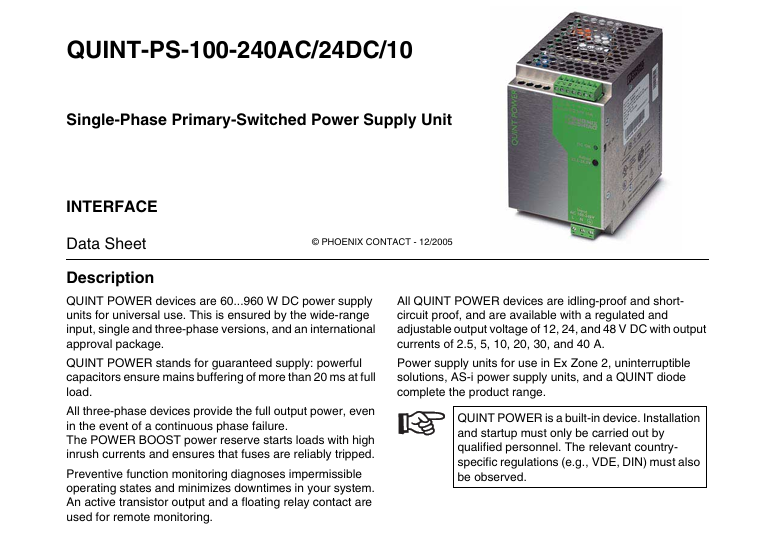

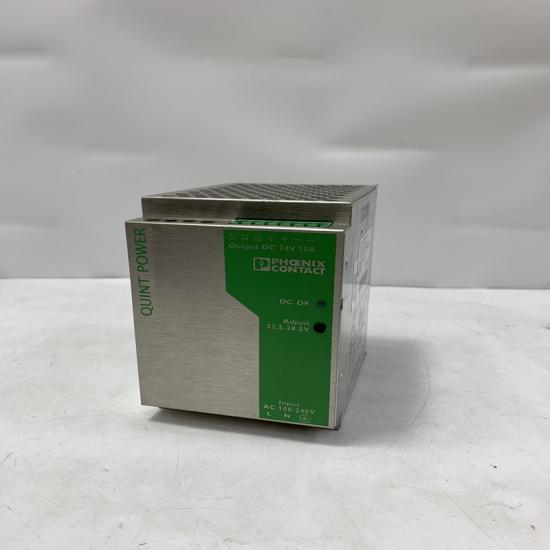

HOENIX QUINT-PS-100-240AC/24DC/10 DIN Rail Power Supply

The PHOENIX QUINT-PS-100-240AC/24DC/10 DIN Rail Power Supply is a high-performance power device specifically designed for industrial automation scenarios. With its excellent power supply stability, powerful protection functions, and flexible configuration capabilities, it provides reliable power support for various industrial devices, ensuring the stable operation of automated systems.

Core Functions

Efficient and Stable Power Supply: Using advanced switching power supply technology, it can stably convert the input voltage of 100 - 240V AC into 24V DC output. With an output power of 10A (240W) and low output ripple, it can provide clean and stable power for devices such as PLCs, sensors, and actuators, ensuring the precise operation of the equipment.

Multiple Protection Mechanisms: It has overvoltage, undervoltage, overcurrent, short-circuit, and reverse protection functions. When an abnormal situation occurs, it can respond quickly and activate protection measures to prevent device damage. In addition, it features the unique SFB (Selective Fuse Breaking) technology, which can quickly cut off the faulty circuit in case of a short circuit without affecting the normal operation of other circuits.

Intelligent Diagnosis and Monitoring: Integrated with real-time monitoring functions, through LED indicator lights and communication interfaces such as PROFINET and Modbus RTU, it can display the power supply's operating status, output voltage, current, and fault information in real time. It supports remote monitoring and diagnosis, enabling maintenance personnel to promptly understand the power supply's working conditions and troubleshoot faults.

Wide Range of Voltage Adaptation: With a wide input voltage range, it can adapt to unstable grid voltages in different regions and working conditions. It can still maintain stable output during voltage fluctuations, reducing the risk of equipment failures caused by power problems.

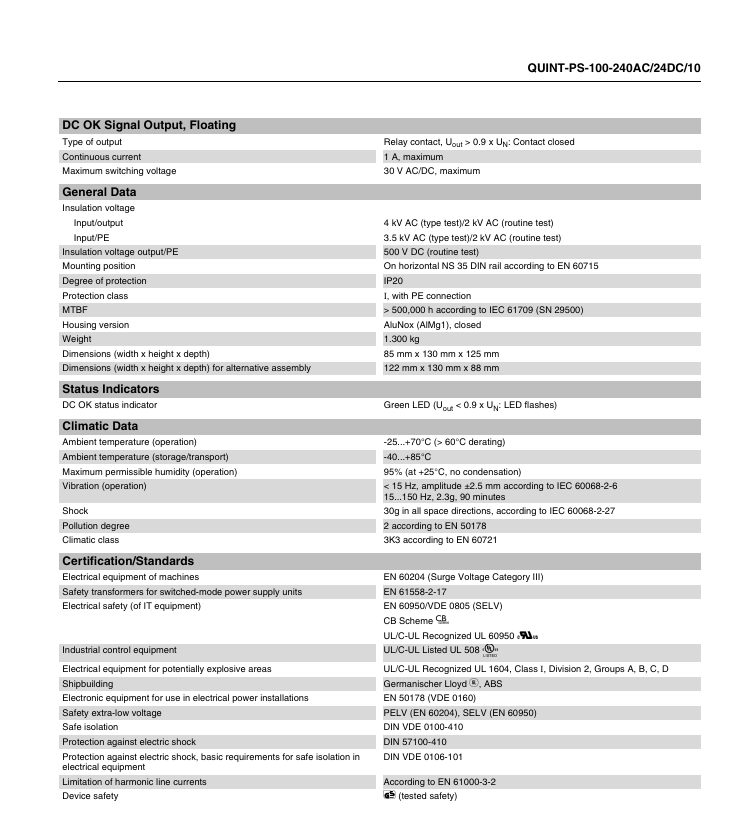

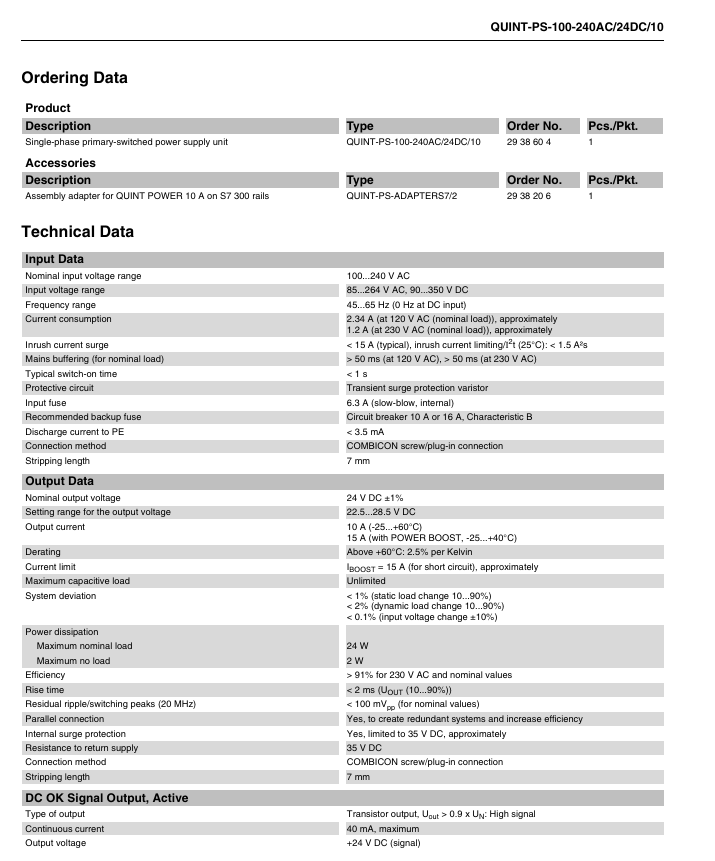

Technical Parameters

Input Voltage: AC 100 - 240V, frequency 47 - 63Hz, adapting to various global grid standards.

Output Voltage: DC 24V, rated output current 10A, output voltage accuracy ±0.5%, meeting the power requirements of most industrial devices.

Efficiency: The conversion efficiency is over 90%, reducing energy consumption, saving energy, being environmentally friendly, and cutting operating costs.

Electrical Isolation: The isolation voltage between the input and output reaches 3000V AC, effectively isolating electrical interference and enhancing system safety.

Working Environment: The operating temperature range is -25°C - 70°C (derated operation), and the storage temperature is -40°C - 85°C; the relative humidity is 5% - 95% (non-condensing); the protection level is IP20. It is installed via a standard 35mm DIN rail, suitable for installation in various industrial control cabinets.

Product Advantages

High Reliability: Using industrial-grade high-quality components, and through strict aging tests and quality inspections, the Mean Time Between Failures (MTBF) exceeds 500,000 hours, enabling long-term stable operation in harsh industrial environments.

Flexible Expandability: It supports parallel operation of multiple power supplies, allowing for flexible expansion of output power according to actual load requirements, meeting the power supply needs of large-scale industrial projects. Meanwhile, it can work in conjunction with other PHOENIX QUINT series products to build more powerful power solutions.

Convenient Maintenance: The modular design facilitates installation and replacement. With intuitive status indicator lights, fault diagnosis is straightforward. It supports hot-swappable operation, enabling the replacement of faulty power supplies without shutting down the system, reducing downtime and improving production efficiency.

Comprehensive Certifications: It has passed multiple international certifications such as CE, UL, and CSA, complying with various global safety standards and electromagnetic compatibility specifications, fully guaranteeing product quality and safety.

Application Scenarios

Industrial Automation Production Lines: It provides stable power for various devices on automated production lines, ensuring the continuous and efficient operation of the production lines, and improving production efficiency and product quality.

Machinery Manufacturing Equipment: Suitable for machinery manufacturing equipment such as CNC machine tools and machining centers, it ensures the stable operation of the equipment control systems and components like motors, enhancing machining accuracy and equipment reliability.

Intelligent Building Control Systems: In the security, lighting, ventilation, and other systems of intelligent buildings, it provides stable power, enabling intelligent and automated management and reducing energy consumption.
