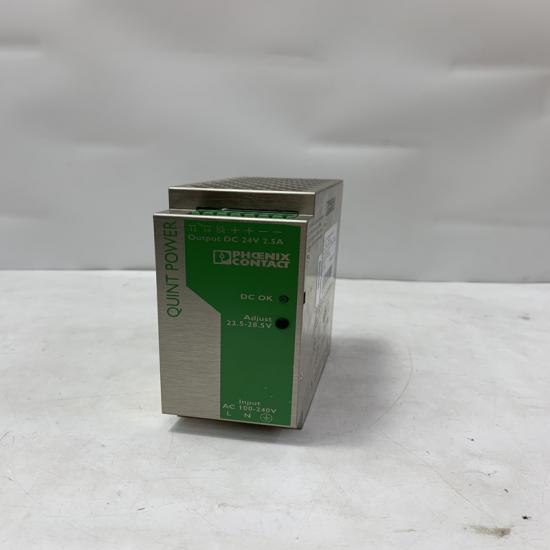

PHOENIX QUINT-PS-100-240AC/24DC/2,5 2938578 DIN rail power supply
The PHOENIX QUINT-PS-100-240AC/24DC/2,5 2938578 DIN rail power supply is a high-performance power supply device designed for industrial automation, intelligent equipment, and other fields. With its excellent voltage regulation ability, comprehensive protection system, and intelligent monitoring features, it provides stable and reliable power support for various industrial loads, effectively ensuring the safe and efficient operation of the system.
- Stable and Efficient Power Supply: Using advanced switching power supply technology, it can stably convert the wide-range input voltage of 100 - 240V AC into 24V DC output. The rated output current is 2.5A, and the output power is 60W. With low output ripple characteristics, it can provide clean and stable power for precision devices such as PLCs, sensors, and small drivers, ensuring the precise operation of the equipment.
- Comprehensive Protection Functions: Integrated with overvoltage, undervoltage, overcurrent, short-circuit, and reverse protection functions, it can instantly respond and activate the protection mechanism when an abnormal situation occurs, preventing device damage. The innovative SFB (Selective Fuse Breaking) technology can accurately cut off the faulty circuit in case of a short circuit without affecting the normal operation of other circuits, greatly enhancing system reliability.
- Intelligent Monitoring and Diagnosis: Equipped with intuitive LED status indicator lights, it can display the power supply operation status and fault information in real time. It supports communication protocols such as PROFINET and Modbus RTU. Through the communication interface, remote monitoring can be achieved, and parameters such as output voltage and current can be obtained in real time, facilitating maintenance personnel to quickly diagnose and handle faults.
- Wide-temperature Operation Adaptation: With a wide operating temperature range, it can operate stably in the environment of -25℃ - 70℃ (derating is supported in high-temperature environments). It adapts to harsh industrial environments such as severe cold and high temperature, meeting the application requirements of different regions and working conditions.
- Input Voltage: AC 100 - 240V, frequency 47 - 63Hz, supporting various global grid standards and having excellent adaptability to grid fluctuations.
- Output Voltage: DC 24V, output voltage accuracy ±0.5%, output current 2.5A, meeting the power needs of a variety of industrial devices.
- Conversion Efficiency: The conversion efficiency is over 90%, effectively reducing energy consumption, saving energy, being environmentally friendly, and reducing enterprise operating costs.
- Electrical Isolation: The isolation voltage between the input and output reaches 3000V AC, effectively isolating electrical interference and enhancing system safety and stability.
- Mechanical Characteristics: It is installed via a standard 35mm DIN rail, which is convenient for installation; the protection level is IP20, and the shell is made of high-strength flame-retardant materials to ensure safety in use.
- High Reliability: Using industrial-grade components, and through strict aging tests and quality inspections, the Mean Time Between Failures (MTBF) exceeds 500,000 hours. It can operate stably for a long time in complex industrial environments, reducing the frequency and cost of equipment maintenance.
- Flexible Expandability: It supports parallel operation of multiple power supplies, and the output power can be flexibly expanded according to actual load requirements; it is compatible with other products in the PHOENIX QUINT series, making it easy to build customized power solutions.
- Convenient Operation and Maintenance: The modular design makes installation and replacement convenient. It supports hot-swappable operation, allowing maintenance without shutdown; the rich status indication and remote monitoring functions greatly improve the efficiency of fault troubleshooting and repair.
- Comprehensive Certifications: It has passed a number of international authoritative certifications such as CE, UL, and CSA, complying with strict safety standards and electromagnetic compatibility specifications, and the product quality and safety are trustworthy.
- Industrial Automation Production Lines: It supplies power to sensors, controllers, small robotic arms, and other equipment on automated production lines, ensuring the stable operation of the production line and improving production efficiency and product quality.
- Intelligent Transportation Systems: It is suitable for traffic signal control, monitoring equipment, intelligent parking systems, etc., ensuring the reliable operation of equipment in complex grid environments.
- Building Automation Systems: It provides stable power for lighting control systems, HVAC equipment, security monitoring, etc., in intelligent buildings, helping to achieve intelligent building management and energy conservation.
-

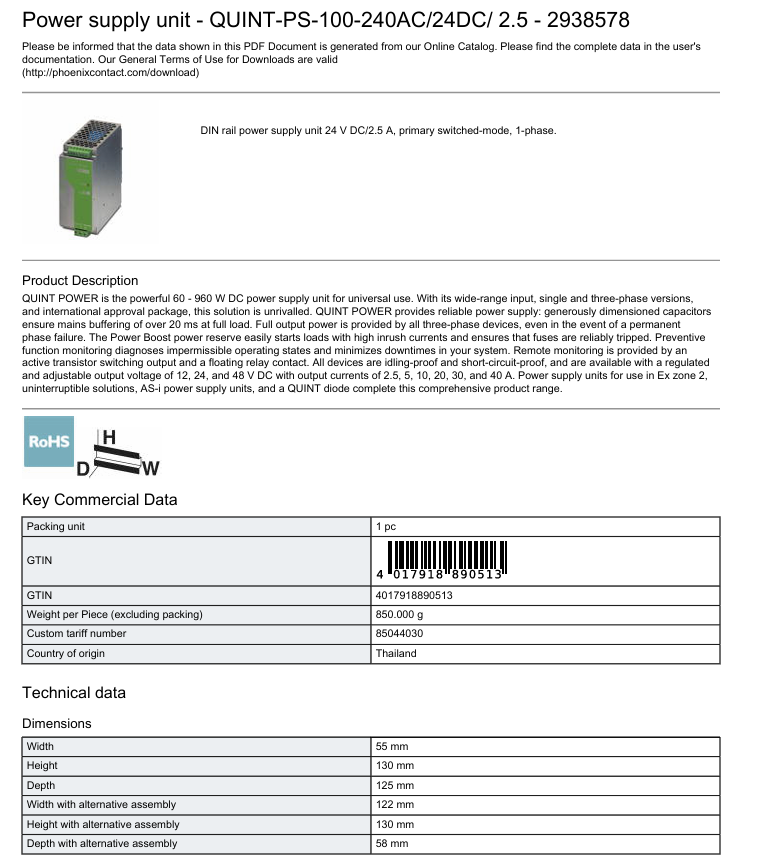

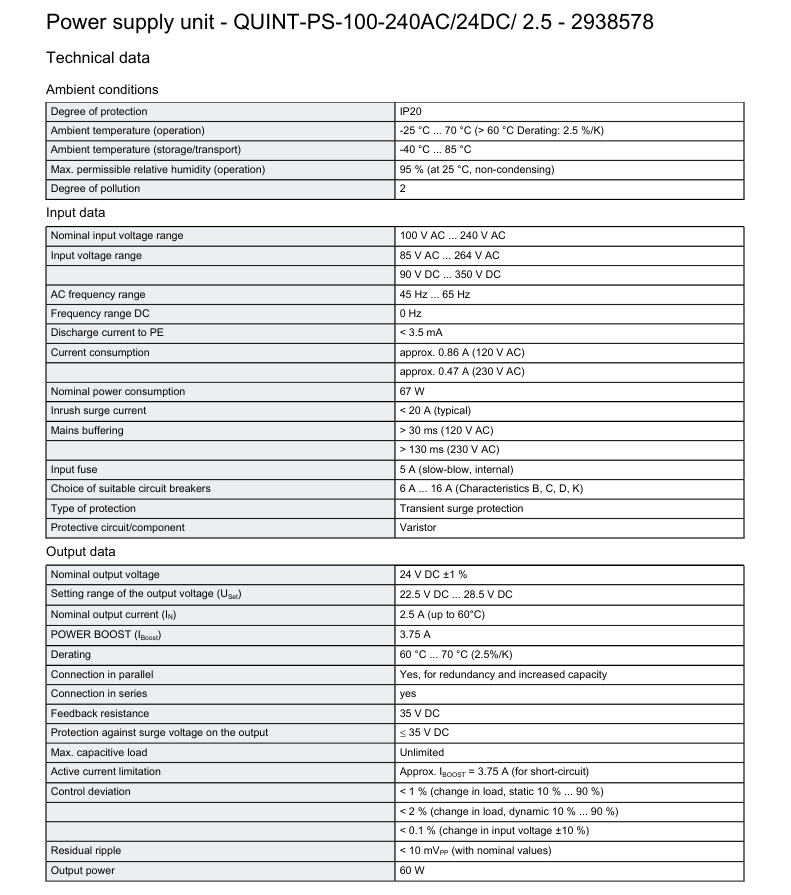

The structure and details of the product：
