PEPPERL+FUCHS NCB20-L2-N0-V1 Inductive Proximity Sensor

NCB20-L2-N0-V1
NCB20-L2-N0-V1

PEPPERL+FUCHS NCB20-L2-N0-V1 Inductive Proximity Sensor

PEPPERL+FUCHS NCB20-L2-N0-V1 Inductive Proximity Sensor

  • Item NO.:

    NCB20-L2-N0-V1

  • Payment:

    T/T

  • Price:

    $295

  • Product Origin:

    CHINA

  • Color:

    NEW

  • Product weight:

    0.02KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                                                  • PEPPERL+FUCHS NCB20-L2-N0-V1 Inductive Proximity Sensor

                                                                                    The PEPPERL+FUCHS NCB20-L2-N0-V1 is a 20 mm flush-mount NAMUR inductive proximity sensor with a normally closed (NC) output. It is designed for reliable metal detection and is suitable for applications requiring hazardous-area certification.

                                                                                    Key Technical Specifications

                                                                                    Specification Details
                                                                                    Brand Pepperl+Fuchs
                                                                                    Model NCB20-L2-N0-V1
                                                                                    Product Type Inductive Proximity Sensor
                                                                                    Sensing Principle Inductive
                                                                                    Rated Operating Distance 20 mm
                                                                                    Installation Flush
                                                                                    Assured Operating Distance 0–16.2 mm
                                                                                    Actual Operating Distance 18–22 mm
                                                                                    Output Type NAMUR
                                                                                    Switching Function Normally Closed (NC)
                                                                                    Nominal Voltage 8.2 VDC
                                                                                    Internal Resistance Approx. 1 kΩ
                                                                                    Switching Frequency 0–300 Hz
                                                                                    Hysteresis Typically 5%
                                                                                    Current – Target Not Detected ≥2.2 mA
                                                                                    Current – Target Detected ≤1 mA
                                                                                    Protection Reverse polarity & short-circuit protected
                                                                                    Indicator Yellow LED
                                                                                    Housing Material Polyamide (PA)
                                                                                    Sensing Face Polyamide (PA)
                                                                                    Connection 4-pin M12 × 1 connector
                                                                                    Protection Rating IP66 / IP69K
                                                                                    Operating Temperature -25 to +100 °C
                                                                                    Dimensions 67 × 40 × 40 mm
                                                                                    Weight Approx. 130 g
                                                                                    Safety Integrity Usable up to SIL 2
                                                                                    Approvals ATEX, IECEx, cULus, CCC, ANZEx, Marine

                                                                                    Technical specifications are from Pepperl+Fuchs documentation.

                                                                                    Advantages & Features

                                                                                    • 20 mm sensing distance with flush installation.
                                                                                    • NAMUR NC output for use with compatible switching amplifiers and intrinsically safe interfaces.
                                                                                    • Sensor head is bidirectional and rotatable, simplifying installation.
                                                                                    • Suitable for applications requiring SIL 2 capability.
                                                                                    • Wide -25 to +100 °C operating temperature range.
                                                                                    • High IP66/IP69K environmental protection.
                                                                                    • Reverse-polarity and short-circuit protection.
                                                                                    • Designed for use in hazardous-area applications with applicable ATEX/IECEx approvals.

                                                                                    Typical Applications

                                                                                    • Industrial automation and machine control
                                                                                    • Position and end-position detection
                                                                                    • Conveyor systems
                                                                                    • Valve and actuator position monitoring
                                                                                    • Process automation
                                                                                    • Hazardous-area equipment
                                                                                    • Rotating and moving machinery monitoring

The structure and details of the product：




Please make an inquiry for more models

AUTOMATION DIRECT Appleton GRC50-A

AutomationDirect EA3-S3ML-R

Automation Direct F2-16TD2P

Automation Direct  F2-08AD-1

AutomationDirect EA7-S6M

AUTOMATION DIRECT C0-08TR

Automation Direct MTR2-P33-3BD18

Automation Direct DVD-2AC4A-120A

Automation Direct    MS25-160

Automation Direct DN-QG12-2-2

Automation Direct 11TDT1W4S

AUTOMATION DIRECT   C0-08TR

AUTOMATION DIRECT  DL260

Automation Direct F0-04RTD

Automation Direct STP-MTRH-34127

Automation Direct  F0-04RTD

Automation Direct   P3-06DAS-1

 Automation Direct    P3-08B

 Automation Direct    P3-11B

 Automation Direct    P3-16TD1

 Automation Direct    P3-FILL

 Automation Direct   ZL-CBL40-2

 Automation Direct    ZL-P3-CBL20-2

 Automation Direct    ZL-RTB40-1

 Automation Direct    EA9-T15CL

Automation Direct   D2-260

AUTOMATION DIRECT   EA9-T15CL-R

AUTOMATION DIRECT EA9-7CL

AUTOMATION DIRECT   P3-550E

AUTOMATION DIRECT   D2-BAT-1

AUTOMATION DIRECT   P3-EX

AUTOMATION DIRECT   P3-SCM

AUTOMATION DIRECT   P3-16AD-1

 AUTOMATION DIRECT   P3-RTB

AUTOMATION DIRECT    P3-16DA-1

AUTOMATION DIRECT   P3-64ND3

Automation Direct ZL-RTB40-1

Automation Direct ZL-CBL40-2

Automation Direct P3-16TD1

Automation Direct P3-11B

Automation Direct P3-08B

Automation Direct P3-16AD-1

Automation Direct P3-RTB

Automation Direct P3-16DA-1

Automation Direct P3-64ND3

AUTOMATION DIRECT    F4-16AD-1

AUTOMATION DIRECT    D4-64TD1

AUTOMATION DIRECT    D4-64ND2

Automation Direct    EZ-220 EZA

AutomationDirect     D0-06DR-D

Automation Direct   P3-16AD1GE

Automation Direct D2-04B-1

Automation Direct F2-16TD2P

Automation Direct P3-SCM

Automation Direct EA9-T15CL



Automation Direct P3-550



Other best-selling products：

  1.
Hot Tags :

PEPPERL+FUCHS

NCB20-L2-N0-V1

PLC Module
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related products

KG30-R/EX-2S
PEPPERL+FUCHS KG30-R/EX-2S Safety Control System

PEPPERL+FUCHS KG30-R/EX-2S Safety Control System

Details
KFU8-UFC-1.D

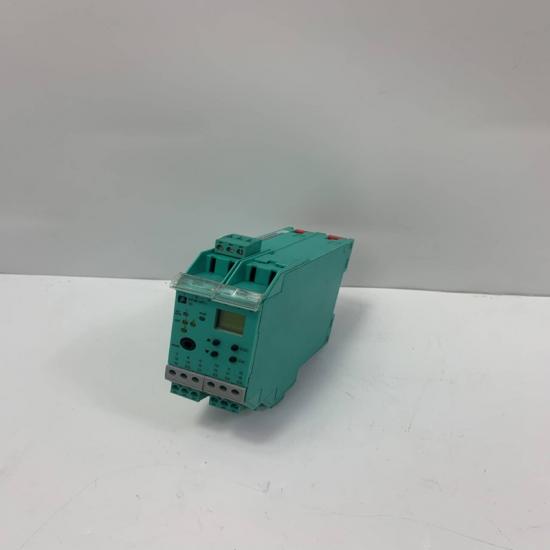

PEPPERL+FUCHS KFU8-UFC-1.D Inverter with trip value
