                                                • GE IC695PSD140 Power Supply Module



                                                  IC695PSD140 Module



                                                  Side View



                                                  Overview

                                                  IC695PSD140 is a 40W multi-purpose DC power supply for Emerson PACSystems RX3i PLC universal backplanes (formerly GE Fanuc). It converts 24VDC cabinet input into multiple regulated internal voltages to power the entire rack’s CPU, I/O and communication modules. It supports load-sharing and redundant parallel configuration for high-availability control systems, and fits the dedicated power slot of IC695 series 7-slot /12-slot backplanesEmerson.

                                                  Specifications

                                                  • Input: 18–30 VDC (nominal 24VDC), total rated power 40W
                                                  • Output rails:
                                                    1. +3.3VDC for RX3i high-speed PCI modules
                                                    2. +5.1VDC logic power for CPU and signal boards
                                                    3. Auxiliary +24VDC relay power for digital output modules
                                                  • Front panel LED indicators: Power OK, Power Fault, Overload, Overtemperature
                                                  • Hot-swappable single-slot plug-in design
                                                  • Environment: Operating 0°C ~ +60°C; storage -40°C ~ +85°C, 5%–95% non-condensing humidity
                                                  • Parallel capability: Up to 4 identical IC695PSD140 units in one rack for load sharing or redundancy
                                                  • Wiring terminal supports 14–22 AWG copper wires

                                                  Key Functions

                                                  1. Rack-wide centralized power conversion

                                                     Stabilizes fluctuating field 24VDC power and distributes clean, low-noise voltage to all backplane modules to avoid signal distortion.
                                                  2. Redundancy & load expansion

                                                     Multiple identical PSD140 supplies can work in parallel to boost total rack power capacity or build redundant power architecture to eliminate single-point power failure.
                                                  3. Full multi-layer protection

                                                     Built-in overload, over-temperature, short-circuit and overvoltage hardware protection; automatically cuts output to prevent damage to CPU and I/O cards under abnormal conditions.
                                                  4. Real-time fault diagnosis

                                                     Sends power status signals to the RX3i CPU; fault logs can be uploaded to HMI/SCADA for maintenance alerts.
                                                  5. Auxiliary relay power supply

                                                     Independent 24VDC output provides power to relay-type digital I/O modules without extra external power wiring.

                                                  Compatible Equipment

                                                  • RX3i universal backplanes: IC695CHS007 (7-slot), IC695CHS012 (12-slot)
                                                  • Full IC695 series CPU, analog/digital I/O, Ethernet and serial communication modules
                                                  • Proficy Machine Edition programming software
                                                  • Turbine auxiliary control racks, MCC and distributed process control panels

                                                  Applications

                                                  Industrial automation & power generation control systems:
                                                  • Gas/steam turbine auxiliary PLC cabinets
                                                  • Petrochemical continuous process control racks
                                                  • Water treatment pump station control panels
                                                  • Factory production line and packaging machine PLC systems
                                                  • Renewable energy plant local monitoring control cubicles

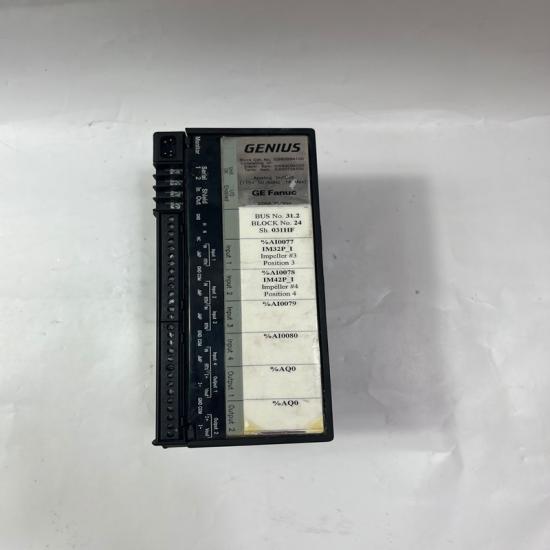

The structure and details of the product：
