GE Fanuc IS420ESWBH1A switch module

Overview
The GE Fanuc IS420ESWBH1A is an industrial Ethernet switch from GE's Mark VIe series, engineered for high-reliability control networks. As a second-generation IONet switch, it integrates into Mark VIe and Mark VIeS distributed control systems (DCS), delivering real-time data communication for turbine control, power generation, and process automation .

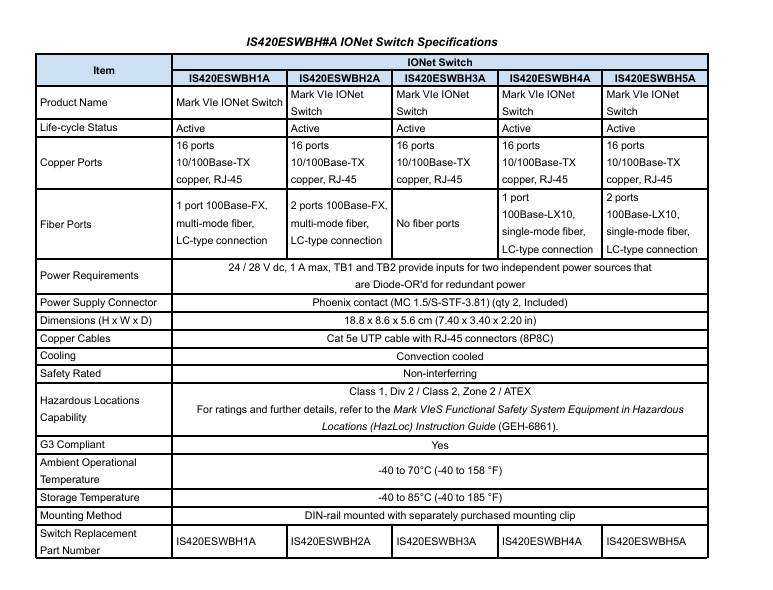

Product Specifications

1. Electrical Parameters

   • Input Voltage: 24/28 VDC (redundant power inputs) .

   • Port Configuration:

     • 16 × 10/100Base-TX RJ45 copper ports (auto-negotiation for full/half duplex)

     • 1 × 100Base-FX multimode fiber port (LC connector) .

   • Protocols: Compliant with IEEE 802.3/802.3u/802.3x standards for industrial Ethernet .

2. Physical Attributes

   • Dimensions: 7.40 in (H) × 3.40 in (W) × 2.20 in (D) .

   • Weight: Approx. 0.72kg  .

   • Mounting: DIN rail or panel mount; vertical/horizontal orientation (clip: 259B2451BVP4) .

3. Environmental Tolerance

   • Operating Temperature: -40°C to +70°C (-40°F to +158°F)

   • Protection: Sealed enclosure, resistant to 100% humidity (non-submerged) and 100g shock .

4. Origin

   • Imported original equipment, manufactured by General Electric (GE), USA .

Key Features

• Redundant Network Support: Compatible with simplex, duplex, or TMR controller configurations for critical redundancy .

• Real-Time Industrial Connectivity:

  • Fiber port enables long-distance noise-immune links; copper ports feature HP-MDIX auto-sensing for simplified cabling.

  • 256 KB buffer and 4K MAC address table optimize data throughput .

• High Reliability:

  • Diode-OR'd redundant power inputs ensure continuous operation.

  • LED indicators (link/activity/duplex/speed) enable rapid fault diagnostics .

• Multi-Industry Applications:

  • Power generation (turbine control), petrochemicals, water treatment, and advanced manufacturing DCS .

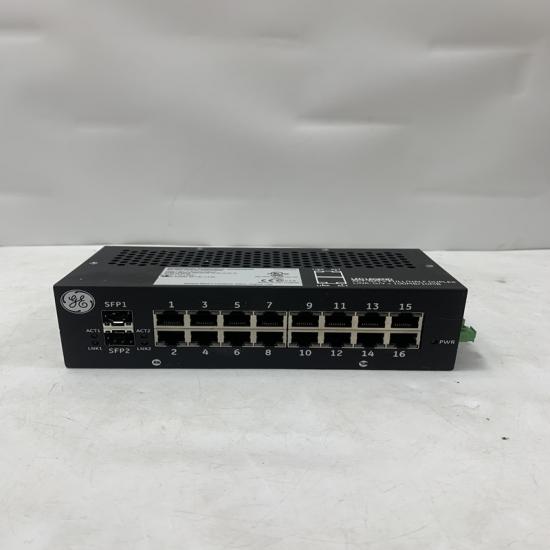

The structure and details of the product：
