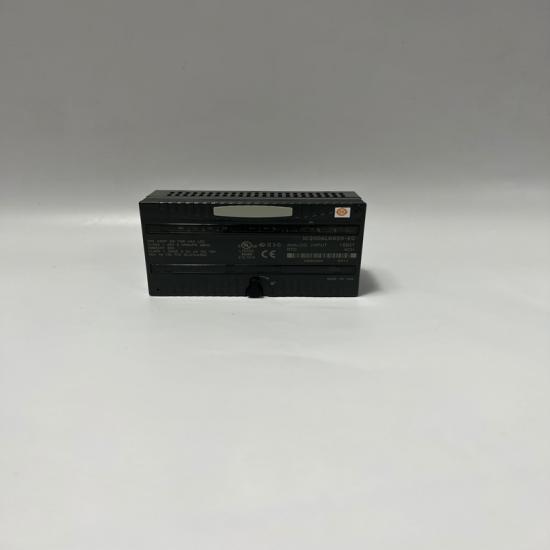

GE Fanuc IC200ALG620-EC Resistance Input Module

• Multi-channel Temperature Collection: It has 4 independent RTD input channels, which can connect 4 RTD sensors simultaneously, enabling synchronous collection of multi-point temperature data. It is suitable for industrial scenarios where centralized monitoring of multiple temperature monitoring points is required, such as large-scale production lines, reactors, and boiler rooms.​

• High-precision Measurement: It supports various types of RTD sensors, including Pt100, Pt200, Pt500, and Pt1000. The measurement accuracy is as high as ±0.1℃ (at 25℃), which can accurately capture temperature changes and provide an accurate data basis for temperature control.​

• Signal Processing and Conversion: It is equipped with a high-performance signal processing circuit, which can quickly and accurately convert the resistance signals of RTD sensors into digital temperature values and perform linearization processing to eliminate non-linear errors, ensuring the reliability and stability of the output data.​

• Input Characteristics: Each channel supports 2-wire, 3-wire, or 4-wire RTD connection methods, which can be flexibly selected according to actual application requirements, effectively reducing the impact of line resistance on the measurement results and improving the measurement accuracy.​

• Output Form: It communicates with the controller through the VersaMax I/O bus and outputs temperature data in digital form, which is convenient for integration with control systems such as PLCs and DCSs, enabling real-time transmission and remote monitoring of temperature data.​

• Resolution and Update Rate: The temperature data resolution can reach 0.1℃, which can finely reflect temperature changes. The data update rate is fast, and it can complete one-time collection and update of 4-channel data within 100ms, meeting the requirements of industrial application scenarios with high real-time requirements.​

• Anti-interference Ability: It adopts an isolated design, and the isolation voltage between channels reaches 500V AC, effectively isolating external electromagnetic interference and electrical noise and preventing signal crosstalk. It ensures stable and accurate temperature data collection in complex electromagnetic environments.​

• Fault Diagnosis: It has a complete self-diagnosis function, which can monitor the working status of the module and the connection of RTD sensors in real-time. When sensor disconnection, short circuit, or module failure occurs, it will promptly issue an alarm signal through LED indicators and diagnostic codes, facilitating maintenance personnel to quickly locate and troubleshoot faults.​

• Wide Operating Range: The operating temperature range is - 40℃ to 70℃, and the relative humidity is 5% - 95% (non-condensing). It can adapt to various harsh industrial environments such as high temperature, low temperature, and humidity, ensuring the reliable operation of the module under different working conditions.​

• Installation Method: It adopts a standard 35mm DIN rail installation, and the installation process is simple and quick. It can be easily integrated into the existing VersaMax I/O system, saving installation space and facilitating system expansion and maintenance.​

• Compatibility: It is fully compatible with GE Fanuc VersaMax series controllers and can also be seamlessly docked with other control systems that support the VersaMax I/O bus protocol, with good versatility and expandability.​

• Manufacturing Industry: In the automated production lines of industries such as automotive manufacturing and electronics production, it is used to monitor the temperature of key equipment, such as motors, heating furnaces, and cooling systems, to ensure that the equipment operates within the normal temperature range and prevent equipment damage or product quality problems caused by abnormal temperatures.​

• Energy Industry: In power plants, substations, and other places, it monitors the temperature of equipment such as generators, transformers, and cable joints in real-time, promptly discovers overheating hazards, prevents electrical fires and other accidents, and ensures the safe and stable operation of the power system.

The structure and details of the product：
