• • • • • • • • • • • • • • • • • • • • • • • • • • GE IC695ACC400 Battery Energy Pack Module

                                                    Overview

                                                    IC695ACC400 is a capacitor-based CPU backup energy pack for Emerson PACSystems RX3i PLC platform (former GE Fanuc). It delivers temporary power to compatible RX3i CPUs during full rack power loss, giving the controller sufficient time to copy all volatile RAM data to onboard non-volatile flash memory to avoid program, parameter and runtime data loss. Unlike traditional lithium battery packs, it uses long-life supercapacitors without frequent battery replacement. It mounts beside the CPU module instead of occupying rack backplane slots, saving valuable rack space.



                                                    IC695ACC400 Module

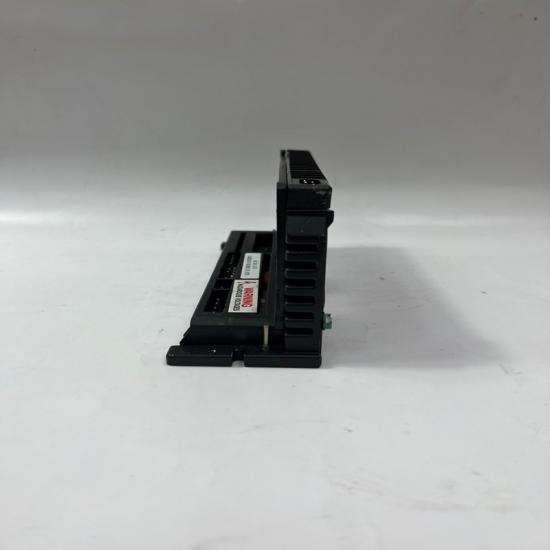

                                                    Module Side View



                                                    Specifications

                                                    • Power charging source: 18–30 VDC from RX3i CPU via IC695CBL001 connection cable
                                                    • Backup trigger threshold: 16.7 VDC nominal; automatically activates backup once input voltage drops below threshold
                                                    • Service lifespan: Over 10 years at 0°C ~ 50°C; approx. 4.5 years under continuous 60°C cabinet temperature
                                                    • Physical dimension: 140 mm H × 124 mm D × 25.4 mm W; weight ~0.29 kg
                                                    • Operating temperature: 0°C ~ +60°C, indoor cabinet installation only
                                                    • Connection cable: IC695CBL001 (0.91m standard cable) with Samtec industrial connector
                                                    • No consumable lithium cells; maintenance-free capacitive energy storage design

                                                    Key Functions

                                                    1. Emergency data backup power supply

                                                       When the rack main power cuts off, it instantly supplies stable auxiliary power to the CPU to complete full RAM-to-flash data writing, retaining process recipes, runtime tags and fault event records.
                                                    2. Automatic passive charging

                                                       Charges continuously from CPU 24VDC rail while the PLC system runs normally; no separate external charging circuit required.
                                                    3. Zero rack slot occupation

                                                       Side-mounted structure attaches directly to the CPU module’s left side, leaving all backplane slots available for I/O and communication modules.
                                                    4. Long-term maintenance reduction

                                                       Capacitor energy storage eliminates periodic battery replacement work, cutting down site maintenance costs and downtime.
                                                    5. Power loss fault logging support

                                                       Sustains CPU operation long enough to record power-fault timestamps and event logs before full shutdown for post-fault analysis.

                                                    Compatible Equipment

                                                    • RX3i CPU modules: CPE302, CPE305, CPE310
                                                    • IC695CHS007 / IC695CHS012 RX3i universal backplanes
                                                    • IC695CBL001 dedicated connecting cable
                                                    • IC695PSD140 rack power supply modules
                                                    • Proficy Machine Edition programming & monitoring software

                                                    Applications

                                                    Industrial automation control systems requiring high data integrity:
                                                    • Gas & steam turbine auxiliary PLC control racks
                                                    • Petrochemical continuous process control panels
                                                    • Water treatment pump station PLC cabinets
                                                    • Manufacturing production line and packaging machine control systems
                                                    • Renewable energy plant local monitoring control cubicles
