                                                    • GE IC695CPE305 CPU Module

                                                      Overview

                                                      IC695CPE305 is a mid-range central processing unit for Emerson PACSystems RX3i PLC platform (formerly GE Fanuc). As the core controller of the whole automation system, it executes user control logic, coordinates all I/O modules, and processes multi-channel communication data. It adopts dual-bus backplane compatibility design, supporting both new PCI high-speed modules and legacy Series 90-30 I/O cards, suitable for medium-scale process and machinery control projects.

                                                      Specifications

                                                      • Processor: 1.1 GHz high-speed CPU, scan rate 0.72ms per 1000 Boolean instructions
                                                      • Memory: 5MB user RAM + 5MB non-volatile flash memory, battery-free normal data retention
                                                      • Physical: Single-slot hot-swappable module, standard rack mounting
                                                      • Built-in Interfaces
                                                        1. 1×10/100Mbps Ethernet port (Modbus TCP, SRTP, OPC UA, EGD)
                                                        2. Dual serial ports: RS232 + RS485 (Modbus RTU, SNP)
                                                        3. USB 2.0 master port for program upload/download via flash drive
                                                      • I/O capacity: Max 32K discrete I/O bits, max 32K analog input/output words
                                                      • Program support: Up to 512 logic blocks, single block max 128KB; supports LD, ST, FBD, C language programming
                                                      • Environment: Operating temperature 0°C ~ +60°C, indoor cabinet installation
                                                      • Power consumption: +5VDC 1A, +3.3VDC 1A, 24VDC auxiliary power supply

                                                      Key Functions

                                                      1. Real-time control logic execution

                                                         Runs interlock, PID regulation, sequence control and motor protection programs to realize automatic field equipment control.
                                                      2. Dual-bus I/O scheduling

                                                         Communicates with analog/digital I/O modules through PCI and serial backplane simultaneously, collecting field sensor signals and outputting control commands.
                                                      3. Multi-protocol communication gateway

                                                         Exchanges data with HMI, SCADA, third-party PLC and instruments via Ethernet or serial ports; supports SNTP time synchronization for unified system clock.
                                                      4. Offline data backup matching

                                                         Works with IC695ACC400 supercapacitor energy pack; when power fails, the energy pack provides temporary power to save all runtime data to flash memory to avoid loss.
                                                      5. System self-diagnosis & fault logging

                                                         Real-time monitoring of CPU, backplane, communication and I/O status; records time-stamped fault alarms for post-failure troubleshooting.
                                                      6. Flexible rack expansion

                                                         Supports up to 8 racks through serial expansion modules to expand system I/O scale for large control sites.

                                                      Compatible Equipment

                                                      • RX3i universal backplanes: IC695CHS007 (7-slot), IC695CHS012 (12-slot)
                                                      • IC695PSD140 rack power supply module
                                                      • IC695ACC400 capacitor backup energy pack
                                                      • Full series IC695 analog/digital I/O, Ethernet, serial communication modules
                                                      • Legacy GE Series 90-30 I/O cards
                                                      • Proficy Machine Edition programming software
                                                      • Turbine auxiliary control panels, MCC and process monitoring HMI

                                                      Applications

                                                      Medium-scale industrial automatic control systems:

                                                      • Thermal power plant turbine auxiliary monitoring & control racks
                                                      • Petrochemical continuous production process PLC cabinets
                                                      • Water treatment pump station and sewage automation systems
                                                      • Packaging machinery, metallurgy and mining equipment control panels
                                                      • Small renewable energy station monitoring control cubicles

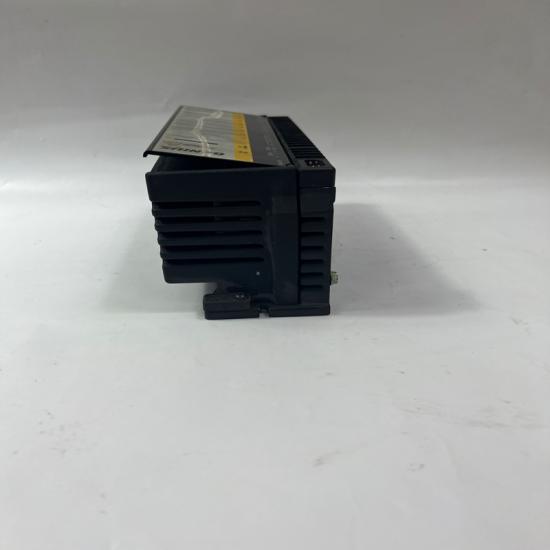

The structure and details of the product：
