• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • GE IC695LRE001 Serial Bus Transmitter / Local Expansion Module

                                                                        Correction Note

                                                                        This module is NOT a PROFINET controller. It is a dedicated serial bus expansion transmitter for Emerson PACSystems RX3i PLC (formerly GE Fanuc), used to expand multi-rack I/O systems for legacy Series 90-30 racks.


                                                                        IC695LRE001 Module



                                                                        Overview

                                                                        IC695LRE001 is a serial expansion bus bridge module specially designed for RX3i universal backplanes. It converts the internal PCI dual-bus signal of the main RX3i rack into differential serial bus signals, connecting multiple IC694 / IC693 Series 90-30 remote expansion backplanes. It solves the I/O capacity limitation of a single rack and supports mixed deployment of new RX3i modules and legacy 90-30 I/O hardware, widely used for retrofitting old automation control systems.

                                                                        Specifications

                                                                        • Installation position: Must be inserted into the dedicated expansion port at the far right of IC695CHS007 / IC695CHS012 backplanes, does not occupy standard logic slots
                                                                        • Backplane power consumption: 132mA @ 5VDC
                                                                        • Expansion bus rate: 500 kbps differential serial communication
                                                                        • Max expandable racks: Up to 7 additional remote backplanes (total 8 racks including main rack)
                                                                        • Cable length limit: Local expansion racks ≤15m (50ft); remote distributed racks ≤213m (700ft)
                                                                        • Front interface: 25-pin D-SUB expansion cable connector; built-in RS232 DCE maintenance port (1200–115200bps)
                                                                        • Status indicators:
                                                                          1. EXP OK: Lights when module receives normal 5V backplane power
                                                                          2. Expansion Active: Lights when stable communication is established with remote racks
                                                                        • Operating temperature: 0°C ~ +60°C indoor cabinet use
                                                                        • Non-isolated differential serial bus design

                                                                        Core Functions

                                                                        1. Backplane signal conversion bridge

                                                                           Converts RX3i universal dual-bus electrical signals into serial bus levels compatible with Series 90-30 racks, realizing seamless data interaction between new RX3i CPU and legacy IC693/IC694 I/O modules.
                                                                        2. System I/O capacity expansion

                                                                           One main rack equipped with LRE001 can connect up to 7 expansion racks, greatly increasing the total discrete and analog I/O points for large-scale control projects.
                                                                        3. Distributed remote rack layout support

                                                                           Long-distance serial cables allow remote I/O racks to be placed near field equipment, reducing lengthy field sensor wiring and lowering cable engineering costs.
                                                                        4. Compatibility for old system renovation

                                                                           Retains all original Series 90-30 wiring and I/O modules during PLC upgrade, avoiding full cabinet reconstruction and cutting renovation investment.
                                                                        5. Built-in maintenance debugging port

                                                                           RS232 serial port supports SNP communication, for offline program upload, rack status diagnosis and fault troubleshooting via handheld tools.
                                                                        6. Real-time expansion link diagnosis

                                                                           Continuous monitoring of serial bus communication status; uploads link disconnection and communication failure fault codes to RX3i CPU for HMI alarm display.

                                                                        Compatible Equipment

                                                                        • RX3i universal backplanes: IC695CHS007 (7-slot), IC695CHS012 (12-slot)
                                                                        • RX3i CPU series: IC695CPE305, IC695CPE305BGAE
                                                                        • IC695PSD140 rack power supply, IC695ACC400 capacitor backup module
                                                                        • Legacy Series 90-30 backplanes + IC693/IC694 analog/digital I/O modules (IC694ALG221, IC694MDL655, IC694MDL754 etc.)
                                                                        • Proficy Machine Edition programming software
                                                                        • D-SUB dedicated serial expansion cables for multi-rack connection

                                                                        Applications

                                                                        Industrial control systems requiring large-scale or distributed I/O:
                                                                        • Thermal power plant turbine auxiliary multi-rack PLC control systems
                                                                        • Petrochemical continuous process distributed I/O monitoring cabinets
                                                                        • Large water treatment pump station multi-area equipment control racks
                                                                        • Factory assembly line, metallurgy and mining machinery multi-station control panels
                                                                        • Old Series 90-30 PLC system upgrade and reconstruction projects

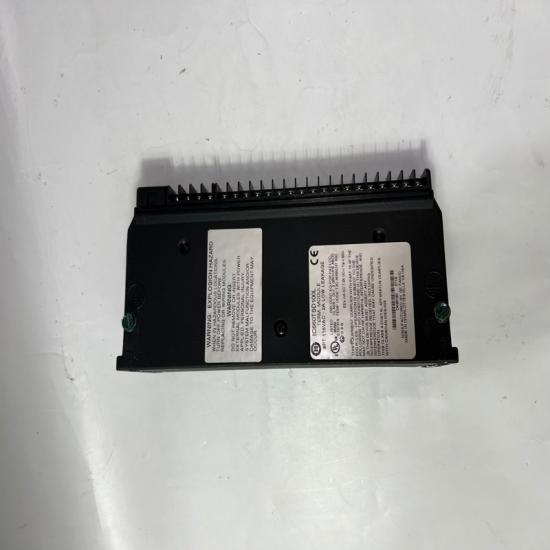

The structure and details of the product：
