                                                                    • GE IC694MDL740 Digital Output Module

                                                                      Overview

                                                                      IC694MDL740 is a 16-point transistor digital output module of GE Series 90-30 PLC. It can be mixed-mounted on PACSystems RX3i dual-bus backplanes to reuse original 90-30 field wiring during system upgrade. It receives control instructions from the CPU and outputs 24VDC switching signals to drive field small loads such as indicator lights, auxiliary relays and solenoid valves.

                                                                      Specifications

                                                                      • Output points: 16 channels in one single group
                                                                      • Output type: Sinking transistor, rated voltage 24VDC
                                                                      • Max load per channel: 0.5A
                                                                      • Built-in per-channel short-circuit and overcurrent protection
                                                                      • Single-slot rack-mounted module, hot-swappable on RX3i backplanes
                                                                      • Independent LED status indicator for each output channel
                                                                      • Operating temperature: 0°C ~ +60°C for indoor industrial cabinets
                                                                      • Low backplane power consumption

                                                                      Key Functions

                                                                      1. Drive field low-power actuators

                                                                         Convert PLC logic signals into 24VDC switching outputs to control cabinet signal lamps, alarm buzzers, small solenoid valves and intermediate relays.
                                                                      2. Hardware overload self-protection

                                                                         Each channel equips with current limiting circuit; automatically cut off output in case of short circuit or overload to prevent module burnout.
                                                                      3. Visual on-site inspection

                                                                         Channel LED directly displays output on/off state, convenient for wiring verification, commissioning and fault location.
                                                                      4. Compatibility for system renovation

                                                                         Supports mixed use with IC695 CPU and I/O modules on RX3i racks, saving the cost of replacing all field cables for old equipment reconstruction.
                                                                      5. Transient surge suppression

                                                                         Internal absorption circuit restrains instantaneous voltage impact from field loads to protect rack backplane and CPU.

                                                                      Compatible Equipment

                                                                      • RX3i universal backplanes: IC695CHS007, IC695CHS012
                                                                      • RX3i CPU modules: IC695CPE305, IC695CPE305BGAE
                                                                      • IC695PSD140 rack power supply
                                                                      • Proficy Machine Edition programming software
                                                                      • 24VDC indicator lights, auxiliary control relays, small solenoid valves

                                                                      Applications

                                                                      General industrial discrete control systems:
                                                                      • Auxiliary equipment status indication & valve control in thermal power plants
                                                                      • Solenoid valve interlock control for petrochemical production processes
                                                                      • Pump, valve and alarm circuit control in water treatment stations
                                                                      • Equipment status signal output for factory assembly lines

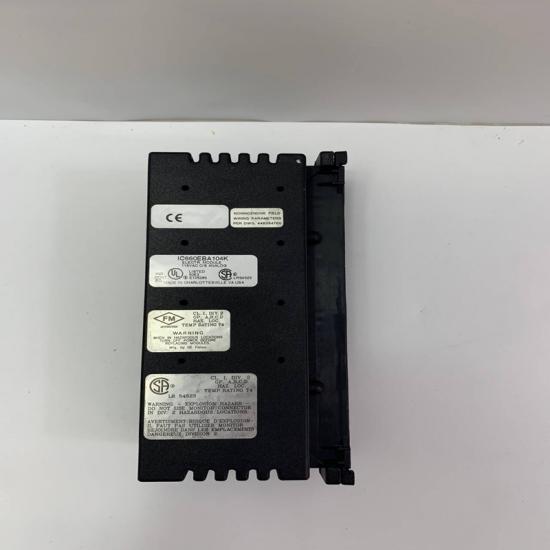

The structure and details of the product：
