                                            • GE IC695CHS012 RX3i Universal Backplane

                                              Overview

                                              IC695CHS012 is a 12-slot dual-bus universal backplane for GE PACSystems RX3i PLC control systems. It acts as the core rack carrier and internal communication backbone, compatible with multiple generations of GE control modules. It supports hot-swappable module replacement and mixed deployment of new PCI high-speed modules and legacy serial I/O boards, widely applied in industrial automation and power generation turbine control systems.

                                              Specifications

                                              • Total slots: 12 standard slots; the rightmost slot reserves a serial expansion port for remote rack extension modules only
                                              • Dual bus architecture: High-speed PCI bus for IC695 series modules + serial bus for IC693/IC694 & Series 90-30 legacy I/O
                                              • Power requirement: Isolated 24VDC external power supply terminal strip on the left side
                                              • Internal power load: 600mA @ 3.3VDC, 240mA @ 5VDC
                                              • Mounting: Horizontal DIN rack mounting; NEMA Type 1 cabinet enclosure required
                                              • Dimensions: 457.2 × 141.4 × 147.3 mm
                                              • Operating temperature: 0°C ~ +60°C; storage: -40°C ~ +70°C
                                              • Built-in integrated grounding bar for module shield wire connection, standard grounding terminals
                                              • Serial expansion connector for linking extra remote backplanes via IC695LRE001 expansion module

                                              Key Functions

                                              1. Centralized carrier platform

                                                 Accommodates RX3i CPU, analog/digital I/O, communication modules and power supply modules, providing unified mechanical installation slots for the whole control system.
                                              2. Dual-bus signal transmission

                                                 Transmits high-speed control data via PCI bus for new-generation IC695 modules; retains serial bus compatibility to reuse old Series 90-30 I/O cards, reducing system upgrade costs.
                                              3. Integrated power distribution

                                                 Distributes converted stable internal power to all inserted modules from external 24VDC input through backplane traces.
                                              4. Hot-swap support

                                                 Allows single module plug-and-replace without shutting down the entire rack, lowering equipment maintenance downtime.
                                              5. System expandability

                                                 The dedicated expansion port connects serial expansion racks to expand total I/O capacity for large-scale control projects.
                                              6. Standardized grounding design

                                                 Unified grounding bar suppresses electromagnetic interference and ensures stable signal transmission in industrial cabinets.

                                              Compatible Equipment

                                              • RX3i CPU modules, IC695 series analog/digital I/O, Ethernet & serial communication modules
                                              • Legacy IC693, IC694 and GE Series 90-30 I/O and option modules
                                              • IC695LRE001 serial expansion module for multi-rack extension
                                              • RX3i redundant power supply units, Proficy Machine Edition programming software
                                              • GE Speedtronic Mark VIe gas/steam turbine control peripherals

                                              Applications

                                              Industrial automation & power generation control scenarios:

                                              • Gas turbine and steam turbine control systems in thermal power plants
                                              • Petrochemical process PLC control cabinets
                                              • Water treatment, mining and manufacturing factory automation
                                              • Combined cycle power station auxiliary control racks
                                              •

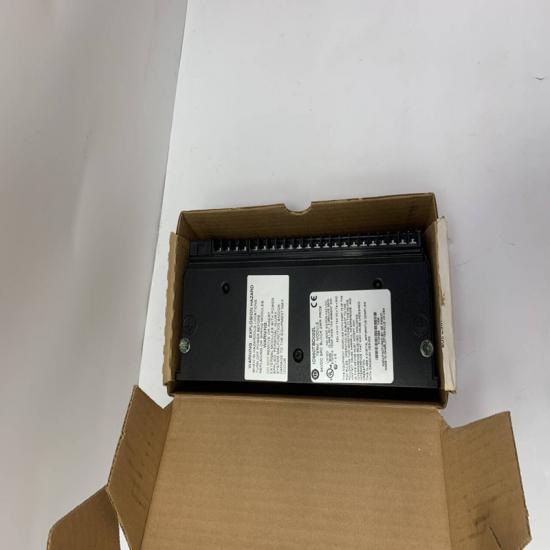

The structure and details of the product：
