                                                • Beckhoff EL4004 Analog Output Terminal

                                                  Product Type: EtherCAT Analog Output Terminal
                                                  Model: EL4004
                                                  Function: 4-Channel Analog Voltage Output
                                                  Manufacturer: Beckhoff Automation

                                                  The Beckhoff EL4004 is a 4-channel EtherCAT analog output terminal that provides 0–10 V voltage signals with 12-bit resolution. It features 500 V electrical isolation, short-circuit-proof outputs and EtherCAT Distributed Clocks, making it suitable for precise analog control in industrial automation systems.

                                                  Technical Specifications

                                                  Parameter	Specification
                                                  Model	EL4004
                                                  Product Type	EtherCAT Analog Output Terminal
                                                  Number of Outputs	4
                                                  Output Signal	0–10 V DC
                                                  Resolution	12 bit
                                                  Connection	2-wire, single-ended
                                                  Power Supply	24 V DC via power contacts
                                                  Load	>5 kΩ
                                                  Output Error	<0.1% of full scale
                                                  Conversion Time	Approx. 250 µs
                                                  Distributed Clocks	Yes
                                                  DC Accuracy	<1 µs
                                                  Electrical Isolation	500 V
                                                  E-bus Current	Approx. 140 mA
                                                  Power Contact Current	Approx. 40 mA
                                                  Process Image	4 × 16-bit AO
                                                  Protection Rating	IP20
                                                  Mounting	35 mm DIN rail
                                                  Operating Temperature	-25°C to +60°C
                                                  Dimensions	12 × 100 × 68 mm
                                                  Weight	Approx. 85 g

                                                  The EL4004 has four independent analog outputs with a common ground potential. Beckhoff specifies 12-bit resolution, 0–10 V output, >5 kΩ load and approximately 250 µs conversion time.

                                                  Advantages & Features

                                                  • 4-Channel Analog Output: Provides four independent 0–10 V control signals.
                                                  • 12-Bit Resolution: Enables precise analog signal generation.
                                                  • Fast Conversion: Approx. 250 µs conversion time.
                                                  • Short-Circuit Proof: Outputs are designed for reliable industrial operation.
                                                  • 500 V Electrical Isolation: Isolates the E-bus from the signal voltage.
                                                  • Distributed Clocks: Supports highly accurate synchronization with other EtherCAT devices.
                                                  • LED Status Indication: Provides convenient visual monitoring.
                                                  • Compact Design: Only 12 mm wide, saving valuable cabinet space.
                                                  • Optional Watchdog: Can provide a user-defined output value with ramp behavior in specified conditions.

                                                  Typical Applications

                                                  • Industrial automation
                                                  • PLC control systems
                                                  • Process control
                                                  • Machine automation
                                                  • Motor and drive control
                                                  • Valve and actuator control
                                                  • HVAC systems
                                                  • Factory automation
                                                  • Robotics
                                                  • Distributed EtherCAT I/O systems
                                                •

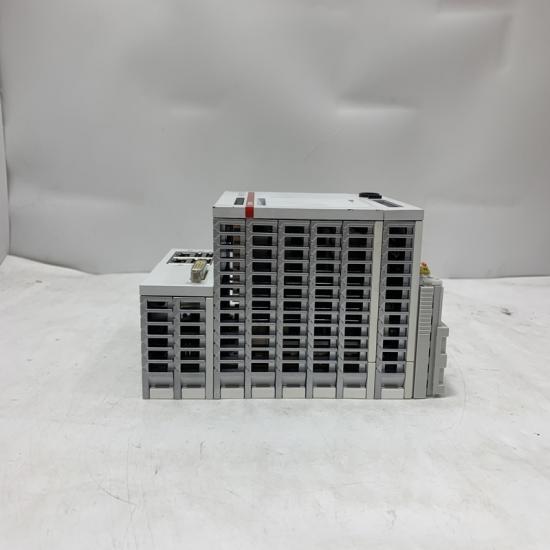

The structure and details of the product：
