                                    • Beckhoff EK1122 EtherCAT Junction

                                      Product Type: 2-Port EtherCAT Junction
                                      Model: EK1122
                                      Manufacturer: Beckhoff Automation
                                      Function: EtherCAT Network Junction / Star Topology

                                      The Beckhoff EK1122 is a compact 2-port EtherCAT junction that allows EtherCAT networks to be expanded into star or tree topologies. It provides two RJ45 ports for connecting additional EtherCAT segments or individual EtherCAT devices and supports Hot Connect for connecting or disconnecting EtherCAT segments during operation.

                                      Technical Specifications

                                      Parameter	Specification
                                      Model	EK1122
                                      Product Type	2-Port EtherCAT Junction
                                      Protocol	EtherCAT
                                      Ethernet Ports	2 × RJ45
                                      Transmission Rate	100 Mbit/s
                                      Cable Type	Shielded Ethernet/EtherCAT, min. Cat.5
                                      Maximum Distance	100 m between stations
                                      Propagation Delay	Approx. 1 µs
                                      Configuration	Not required
                                      Power Supply	Via E-bus
                                      E-bus Current	Typ. 220 mA
                                      Power Contacts	None
                                      Mounting	35 mm DIN rail
                                      Protection Rating	IP20
                                      Operating Temperature	-25°C to +60°C
                                      Storage Temperature	-40°C to +85°C
                                      Dimensions	Approx. 24 × 100 × 52 mm
                                      Weight	Approx. 75 g
                                      Diagnostics	RUN / LINK / ACT LEDs

                                      Specifications are based on Beckhoff's official product documentation.

                                      Advantages & Features

                                      • 2-Port EtherCAT Junction: Provides two additional RJ45 EtherCAT connections.
                                      • Star Topology: Allows EtherCAT systems to be configured in star and tree structures.
                                      • Hot Connect Support: EtherCAT segments can be connected or disconnected during operation when supported by the controller.
                                      • 100 Mbit/s Communication: Provides reliable EtherCAT data transmission.
                                      • Low Propagation Delay: Approx. 1 µs.
                                      • No Configuration Required: Simple plug-and-play network integration.
                                      • LED Diagnostics: RUN, Link and Activity indicators simplify troubleshooting.
                                      • Compact Design: 24 mm-wide housing saves control cabinet space.
                                      • Flexible Expansion: Multiple EK1122 units can be combined to create modular EtherCAT star hubs.

                                      Typical Applications

                                      • Industrial automation
                                      • EtherCAT control systems
                                      • PLC systems
                                      • Distributed I/O
                                      • Machine automation
                                      • Factory automation
                                      • Motion control
                                      • Robotics
                                      • Production lines
                                      • Modular machine systems
                                      • Industrial control cabinets

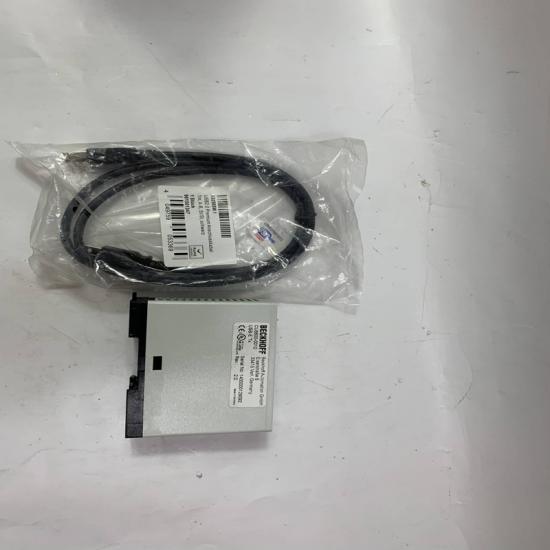

The structure and details of the product：
