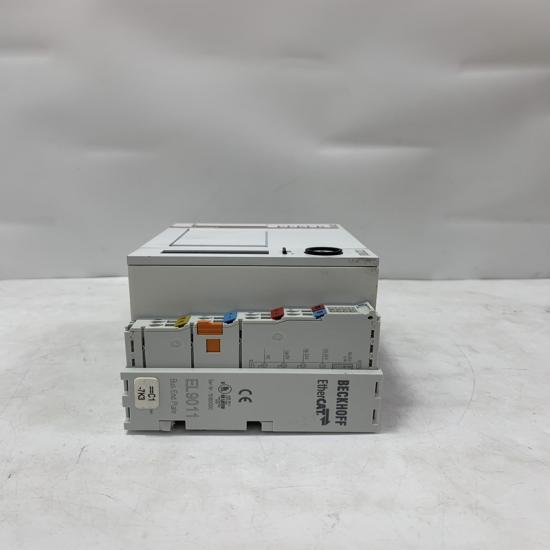

Beckhoff AX8810-0000-0000 Multi-Axis Servo Drive

Beckhoff AX8810-0000-0000 Multi-Axis Servo Drive

Product Description

The Beckhoff AX8810-0000-0000 is an AX8000 Multi-Axis Servo System capacitor module. It is used to increase the DC link capacitance of the servo system, storing regenerative energy generated during motor braking and helping stabilize the DC bus voltage. It is an option module for Beckhoff AX8000 servo systems, improving energy efficiency and system performance.

Technical Specifications

• Brand: Beckhoff
• Model: AX8810-0000-0000
• Product Type: DC Link Capacitor Module
• Series: AX8000 Multi-Axis Servo System
• Function: Energy storage / DC bus stabilization
• DC Link Voltage: Max. 848 V DC
• Capacitance: 1755 µF
• Mounting: AX8000 system module mounting
• Cooling: Natural convection
• Protection Rating: IP20
• Width: Approx. 60 mm
• Height: Approx. 230 mm
• Depth: Approx. 192 mm
• Weight: Approx. 1.95 kg

Advantages & Features

• Increases DC link energy storage capacity
• Absorbs regenerative energy during deceleration
• Reduces voltage fluctuations in servo systems
• Helps improve motion system efficiency
• Compact AX8000 modular design
• Easy integration with existing Beckhoff servo systems
• Improves stability for high-dynamic motion applications

Applications

• CNC machine tools
• Robotics systems
• Packaging machinery
• Semiconductor equipment
• High-speed automation systems
• Multi-axis motion control applications
• Precision industrial automation

Notes / Precautions

• Confirm compatibility with Beckhoff AX8000 servo system before installation
• Ensure correct DC link connection
• Do not exceed maximum DC voltage rating
• Disconnect power before installation or maintenance
• Allow sufficient discharge time before handling
• Installation should be performed by qualified technicians
