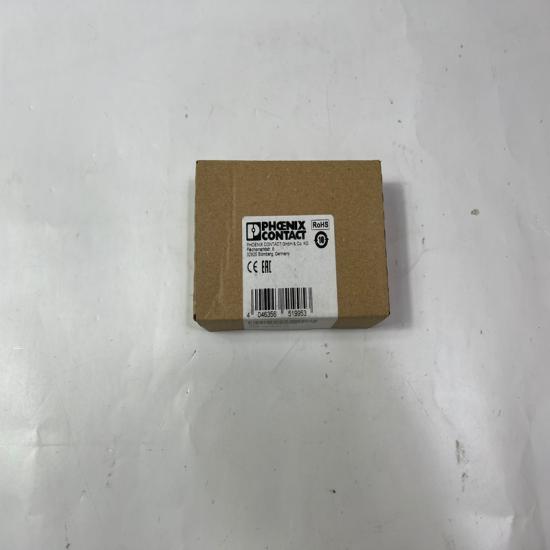

PHOENIX CONTACT QUINT-PS/1AC/24DC/10 DIN Rail Power Supply

Product Overview

Key Technical Specifications

• Single-phase 85–264 VAC input

• 24 V DC / 10 A nominal output

• Adjustable output voltage from 18 to 29.5 V DC

• POWER BOOST up to 15 A

• Selective Fuse Breaking (SFB) up to 60 A for 12 ms

• DIN-rail mounting

• Integrated surge protection and electronic protection functions

• Parallel connection supported for redundancy and increased capacity

• Series connection supported

• DC OK monitoring output

• Suitable for industrial automation and control systems

Advantages & Features

• High-performance QUINT POWER technology

• Reliable starting of heavy loads with POWER BOOST

• Fast magnetic circuit breaker tripping with SFB technology

• Adjustable output voltage

• High efficiency and long service life

• Compact DIN-rail installation

• Preventive function monitoring for improved system availability

Applications

• PLC and I/O systems

• Industrial automation

• Control cabinets

• Sensors and actuators

• Industrial control systems

• Machine control and instrumentation

• 24 V DC control circuits

Precautions

• Verify the AC input voltage before installation.

• The unit is IP20 and should be installed inside a suitable control cabinet or enclosure.

• Observe the specified clearance around the power supply for cooling.

• Output current above 10 A is available only under the specified boost conditions.

• Phoenix Contact recommends QUINT4-PS/1AC/24DC/10 (2904601) for new projects; QUINT-PS/1AC/24DC/10 is the older model.
