PEPPERL+FUCHS KFD2-STC5-Ex1 Signal Conditioner

KFD2-STC5-Ex1
KFD2-STC5-Ex1

PEPPERL+FUCHS KFD2-STC5-Ex1 Signal Conditioner

PEPPERL+FUCHS KFD2-STC5-Ex1 Signal Conditioner

  • Item NO.:

    KFD2-STC5-Ex1

  • Payment:

    T/T

  • Price:

    $295

  • Product Origin:

    CHINA

  • Color:

    NEW

  • Product weight:

    0.02KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                                          • https://images.openai.com/static-rsc-4/Pq1cg4yM7d6Kn6PG_jHLx8S0ILLDFslVxlaAT1tnl7OwMjsR1qMCIPbfI47an9ZeFL_27DLOfuVZmzsKjRtkVPiQ7HuZ1OwOWeSvZDCRkMHfw2qp61Oy0Qz4YwVv_EdWaSY24fll0_2-pEAM3wsnz3HFZ3B1_t2OHhloPzANjhMzrKze_-ThxMculObKYVc3?purpose=fullsize

                                                                          • Product Overview

                                                                            The PEPPERL+FUCHS KFD2-STC5-Ex1 is a 1-channel isolated barrier / SMART transmitter power supply for intrinsic-safety applications. It supplies 2-wire and 3-wire SMART transmitters and transfers 4–20 mA analog signals between hazardous and safe areas. It also supports bidirectional HART communication.

                                                                            Key Technical Specifications

                                                                            Parameter Specification
                                                                            Brand Pepperl+Fuchs
                                                                            Model KFD2-STC5-Ex1
                                                                            Product Type SMART Transmitter Power Supply / Isolated Barrier
                                                                            Channels 1
                                                                            Input Signal 4–20 mA
                                                                            Output Signal 4–20 mA
                                                                            Input 2-wire / 3-wire SMART transmitters
                                                                            Output Mode Current Sink / Current Source
                                                                            Supply Voltage 18–30 VDC
                                                                            Output Load 0–800 Ω
                                                                            HART Communication Supported
                                                                            Galvanic Isolation Yes
                                                                            Safety Integrity Level SIL 2
                                                                            Mounting DIN Rail / K-System Power Rail
                                                                            Operating Temperature -20 to +60°C
                                                                            Hazardous Area Intrinsically Safe
                                                                            Field Connection Terminals 1+, 2-, 3
                                                                            Control Connection Terminals 7, 8, 9
                                                                            Supply Connection Power Rail or terminals 14+, 15-

                                                                            The device provides up to 16 V at 20 mA on the transmitter side and has a typical signal settling time of 200 µs.

                                                                            Advantages & Features

                                                                            • 1-channel intrinsically safe isolated barrier
                                                                            • Supports 2-wire and 3-wire SMART transmitters
                                                                            • 4–20 mA signal transmission
                                                                            • HART communication support
                                                                            • Selectable current-source/current-sink output
                                                                            • Galvanic isolation between field and control sides
                                                                            • Built-in test points for HART communicators
                                                                            • SIL 2 functional safety capability
                                                                            • Compact DIN-rail installation

                                                                            Typical Applications

                                                                            • Process instrumentation
                                                                            • Oil & gas systems
                                                                            • Chemical plants
                                                                            • Petrochemical facilities
                                                                            • Tank and level monitoring
                                                                            • Pressure and flow measurement
                                                                            • Industrial process control
                                                                            • Hazardous-area signal isolation

                                                                            Important Notes

                                                                            • Verify the Ex certification and hazardous-area classification before installation.
                                                                            • Observe the specified 18–30 VDC supply range and 4–20 mA signal limits.
                                                                            • Check transmitter wiring and loop resistance before commissioning.
                                                                            • Follow Pepperl+Fuchs installation instructions for intrinsically safe circuits.
                                                                            • Do not confuse KFD2-STC5-Ex1 with the newer KFD2-STC5-Ex1.H, which has different field-voltage specifications.

The structure and details of the product：




Please make an inquiry for more models

AUTOMATION DIRECT Appleton GRC50-A

AutomationDirect EA3-S3ML-R

Automation Direct F2-16TD2P

Automation Direct  F2-08AD-1

AutomationDirect EA7-S6M

AUTOMATION DIRECT C0-08TR

Automation Direct MTR2-P33-3BD18

Automation Direct DVD-2AC4A-120A

Automation Direct    MS25-160

Automation Direct DN-QG12-2-2

Automation Direct 11TDT1W4S

AUTOMATION DIRECT   C0-08TR

AUTOMATION DIRECT  DL260

Automation Direct F0-04RTD

Automation Direct STP-MTRH-34127

Automation Direct  F0-04RTD

Automation Direct   P3-06DAS-1

 Automation Direct    P3-08B

 Automation Direct    P3-11B

 Automation Direct    P3-16TD1

 Automation Direct    P3-FILL

 Automation Direct   ZL-CBL40-2

 Automation Direct    ZL-P3-CBL20-2

 Automation Direct    ZL-RTB40-1

 Automation Direct    EA9-T15CL

Automation Direct   D2-260

AUTOMATION DIRECT   EA9-T15CL-R

AUTOMATION DIRECT EA9-7CL

AUTOMATION DIRECT   P3-550E

AUTOMATION DIRECT   D2-BAT-1

AUTOMATION DIRECT   P3-EX

AUTOMATION DIRECT   P3-SCM

AUTOMATION DIRECT   P3-16AD-1

 AUTOMATION DIRECT   P3-RTB

AUTOMATION DIRECT    P3-16DA-1

AUTOMATION DIRECT   P3-64ND3

Automation Direct ZL-RTB40-1

Automation Direct ZL-CBL40-2

Automation Direct P3-16TD1

Automation Direct P3-11B

Automation Direct P3-08B

Automation Direct P3-16AD-1

Automation Direct P3-RTB

Automation Direct P3-16DA-1

Automation Direct P3-64ND3

AUTOMATION DIRECT    F4-16AD-1

AUTOMATION DIRECT    D4-64TD1

AUTOMATION DIRECT    D4-64ND2

Automation Direct    EZ-220 EZA

AutomationDirect     D0-06DR-D

Automation Direct   P3-16AD1GE

Automation Direct D2-04B-1

Automation Direct F2-16TD2P

Automation Direct P3-SCM

Automation Direct EA9-T15CL



Automation Direct P3-550



Other best-selling products：

  1.
Hot Tags :

AUTOMATION DIRECT

KFD2-STC5-Ex1

PLC Module
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Related products

KG30-R/EX-2S
PEPPERL+FUCHS KG30-R/EX-2S Safety Control System

PEPPERL+FUCHS KG30-R/EX-2S Safety Control System

Details
KFU8-UFC-1.D
PEPPERL+FUCHS KFU8-UFC-1.D Inverter with trip value

PEPPERL+FUCHS KFU8-UFC-1.D Inverter with trip value

Details
RL23-8-H-500-RT/47/92 (419472)

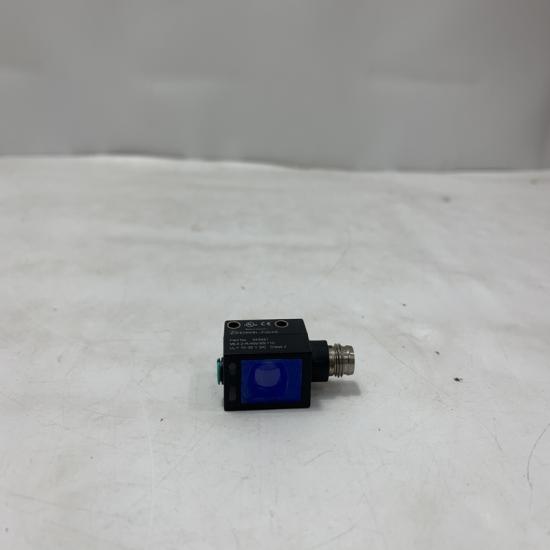

PEPPERL+FUCHS RL23-8-H-500-RT/47/92 (419472) Background Suppression Sensor
