PEPPERL+FUCHS KFA6-STR-1.24.500 Signal Conditioner

KFA6-STR-1.24.500
KFA6-STR-1.24.500

PEPPERL+FUCHS KFA6-STR-1.24.500 Signal Conditioner

PEPPERL+FUCHS KFA6-STR-1.24.500 Signal Conditioner

  • Item NO.:

    KFA6-STR-1.24.500

  • Payment:

    T/T

  • Price:

    $295

  • Product Origin:

    CHINA

  • Color:

    NEW

  • Product weight:

    0.02KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                                        • Product Overview

                                                                          The PEPPERL+FUCHS KFA6-STR-1.24.500 is a regulated DIN-rail power supply with 115/230 VAC input and 24 VDC / 500 mA output. It can be used as a standalone power supply or connected directly to the K-System Power Rail.

                                                                          Key Technical Specifications

                                                                          Parameter Specification
                                                                          Brand Pepperl+Fuchs
                                                                          Model KFA6-STR-1.24.500
                                                                          Product Type Power Supply
                                                                          Series K-System
                                                                          Input Voltage 90–253 VAC
                                                                          Input Frequency 48–63 Hz
                                                                          Output Voltage 24 VDC ±0.5 V
                                                                          Output Current 500 mA max.
                                                                          Output Power Approx. 12 W
                                                                          Protection Electronic short-circuit protection
                                                                          Connection Power Rail / Screw Terminals
                                                                          Mounting 35 mm DIN Rail
                                                                          Protection Rating IP20
                                                                          Operating Temperature -20 to +60°C
                                                                          Dimensions 20 × 119 × 115 mm
                                                                          Weight Approx. 140 g



                                                                          Advantages & Features

                                                                          • 24 VDC regulated output
                                                                          • 500 mA continuous output current
                                                                          • Universal 115/230 VAC input
                                                                          • Electronic short-circuit protection
                                                                          • Direct K-System Power Rail connection
                                                                          • Removable screw terminals
                                                                          • Compact DIN-rail mounting design
                                                                          • Green LED power indication
                                                                          • Suitable for powering K-System modules and field devices

                                                                          Typical Applications

                                                                          • Industrial automation
                                                                          • Process control systems
                                                                          • K-System signal conditioning installations
                                                                          • Intrinsically safe interface systems
                                                                          • Control cabinets
                                                                          • Field-device power supply
                                                                          • DIN-rail instrumentation systems

                                                                          Important Notes

                                                                          • Verify the 90–253 VAC input range before connecting power.
                                                                          • Maximum output current is 500 mA.
                                                                          • Use the correct terminals for AC input and 24 VDC output.
                                                                          • Do not exceed the rated output current.
                                                                          • The unit is IP20, so it should be installed inside a suitable control cabinet.
                                                                          • Follow proper DIN-rail installation and electrical safety procedures.

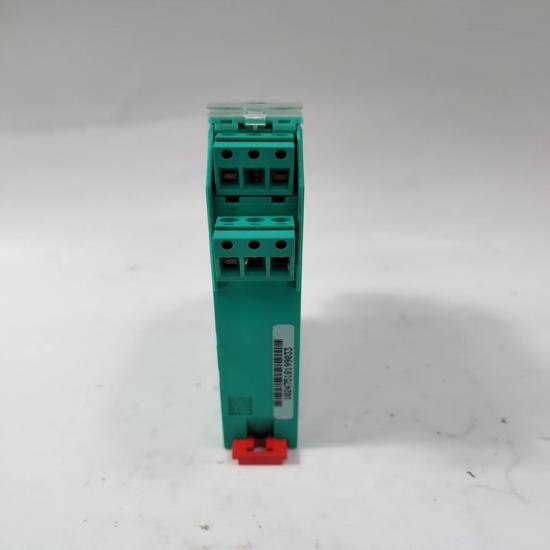

The structure and details of the product：
