Pepperl Fuchs 130713 R-SP-E12 Sensor

Pepperl+Fuchs 130713 R-SP-E12 Sensor (IMPORTANT: this is NOT a normal proximity sensor)

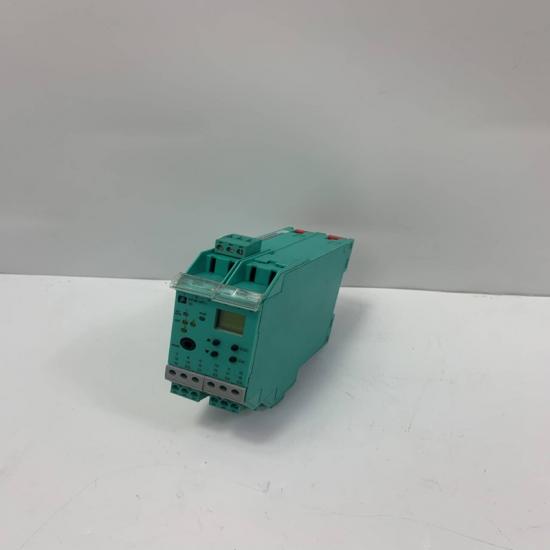

The Pepperl+Fuchs 130713 (R-SP-E12) is not a sensor at all in the normal industrial “proximity sensor” sense.

Product Information

• Brand: Pepperl+Fuchs (Germany)
• Model: R-SP-E12
• Order code: 130713
• Type: Fieldbus segment protector (not sensor)
• Channels: Up to 12 spurs (field device connections)
• Function: Connects multiple field instruments to a single fieldbus segment
• System: FieldConnex® series

What it actually is

This device is used in process automation networks, meaning:

• Connects multiple field instruments (transmitters, valves, etc.)
• Provides short-circuit protection per branch (spur)
• Distributes fieldbus power safely
• Ensures stable communication on PROFIBUS PA / FOUNDATION Fieldbus

It is basically a “smart fieldbus distribution hub with protection.”

System Role (Simple)

PLC / DCS system (Honeywell / Siemens / Foxboro)
→ Fieldbus trunk line
→ R-SP-E12 segment protector (this unit)
→ multiple field devices (pressure / flow / level transmitters)

So it acts like a “protected distribution node for process instrumentation networks.”

Key Features

• Supports FOUNDATION Fieldbus H1 / PROFIBUS PA
• Up to 12 instrument connections (spurs)
• Built-in short-circuit protection per channel
• Zone 1 / Div. 2 hazardous area suitability (depending installation)
• Integrated fieldbus termination option
• Industrial DIN rail mounting

Typical Applications

• Oil & gas plants
• Chemical plants
• Refinery instrumentation systems
• Power plants
• Process automation (DCS systems like Honeywell / Foxboro)
• Large-scale field instrument networks

Advantages

• Protects fieldbus network from single-point failure
• Allows safe connection of many instruments
• Reduces wiring complexity in process plants
• Improves system uptime (fault isolation per spur)
• Industrial Ex-rated design for hazardous areas

Important Notes

• Not proximity sensor ❌
• Not PLC module ❌
• Not I/O module ❌
• Not controller ❌
• Not Ethernet switch ❌
• It is a fieldbus segment protector / distribution & protection module ✔

Common confusion (very important for your listings)

Many sellers mislabel it as:

• “sensor module” ❌
• “interface module” ❌
• “I/O block” ❌

Correct classification:
✔ Fieldbus infrastructure / segment protector (process control network component)

Precautions

• Must be used in correct Fieldbus H1 / PA system
• Requires proper trunk/spur wiring design
• Incorrect termination can break entire segment
• Hazardous area installation rules must be followed (Ex compliance)
• Not interchangeable with standard PLC I/O systems
