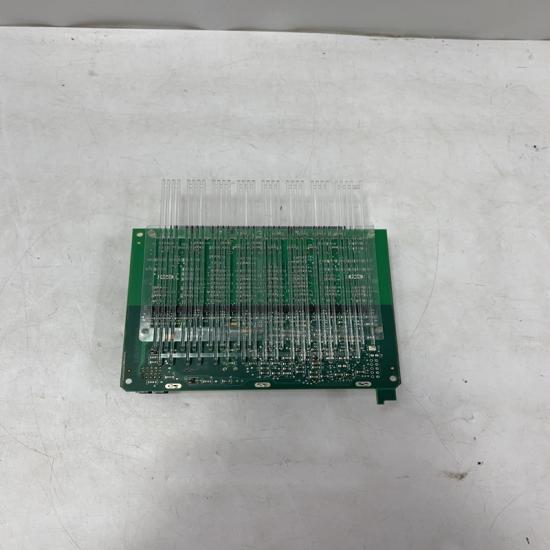

Honeywell 8C-PDODA1 Digital Output Module

Basic Overview

• Model: 8C-PDODA1, factory part number 51454472-175
• Series: Honeywell Experion PKS / C300 Controller Series 8 high-density I/O module
• Type: 32-channel isolated 24VDC sinking digital output card, conformal coated industrial version
• Matching system: C300 process controller rack, paired with dedicated FTA terminal assembly for field wiring

Core Technical Parameters

1. Channel & Electrical Specs

• Total output channels: 32 independent discrete digital outputs
• Output signal: 24VDC sinking type, each channel max load 0.5A
• Galvanic isolation: 1000VAC channel-to-backplane isolation, eliminates ground loop interference
• Full circuit protection: Per-channel overcurrent, short-circuit, overvoltage auto-protection
• External power: 24VDC field bus power supply for output loads
• Board conformal coating: Anti-moisture, dust, chemical corrosion for harsh industrial cabinets

2. Hardware & Mechanical

• Form factor: Single-slot vertical rack plug-in module
• Dimension: 61 × 153 × 144 mm, net weight ~0.3–0.4kg
• Hot-swap support: Replace module online without rack power shutdown
• Front panel indicators: PWR power LED, STATUS run/fault LED, red reset button
• Backplane gold finger interface for C300 rack bus communication
• Must match FTA terminal base for field cable connection (no direct wiring on module)

3. Diagnostic & Control Performance

• Per-channel open/short circuit self-diagnosis, fault codes uploaded to Experion station
• Deterministic output refresh synchronized with C300 control execution cycle
• Supports redundant I/O rack deployment for critical process safety loops
• Full compatibility with Honeywell Control Builder configuration software

Main Functions

1. Convert DCS control logic into 24VDC switching signals to drive field discrete equipment:
   • Solenoid valves, pneumatic valve actuators
   • Small auxiliary relays, motor starter coils
   • On-site alarm lights, audible buzzers, local interlock switches
2. Execute binary interlock, emergency trip, sequence control logic for continuous production processes
3. Transmit channel fault diagnostic data to operator station for real-time equipment troubleshooting

Key Advantages

1. 32-channel high-density layout, greatly reduces total rack slot occupation for multi-point discrete control
2. Conformal coated circuit board, suitable for chemical, refinery, coastal high-humidity corrosive environments
3. Channel independent isolation design, signal stable under strong EMI from inverters and large motors
4. Hot-swap maintenance minimizes plant downtime during module replacement
5. Comprehensive per-channel fault diagnosis, quickly locate broken wire or short-circuit field faults
6. SIL2 compliant for non-SIS general process control loops, CE/UL industrial safety certified

Typical Application Scenarios

• Oil refinery, natural gas processing plant pipeline valve on/off control
• Thermal power plant boiler auxiliary equipment interlock logic
• Chemical reaction tank, batch production sequence control
• Water treatment & sewage plant pump, fan, dosing valve switching
• Pharmaceutical continuous production line discrete equipment control
• Large factory central DCS distributed control cabinet standard I/O expansion
