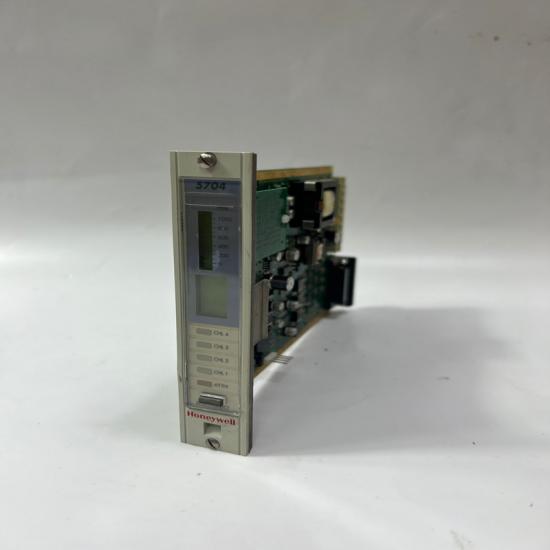

HONEYWELL 05704-A-0145 Four-channel control card

• Multi-channel Precise Control: It has four independent control channels, and each channel can be independently configured with control strategies. It supports multiple algorithms such as PID and fuzzy control, and can perform high-precision adjustment of different industrial parameters with a control accuracy of ±0.3%. This ensures that each loop operates stably within the set parameter range, meeting the needs of multi-task parallel processing in complex industrial control scenarios.​

• Rich Signal Compatibility: It supports a variety of standard analog and digital signal inputs and outputs, and is compatible with analog signals such as 4 - 20mA and 0 - 10V, as well as digital signals of dry contacts and TTL levels. It can be adapted to various industrial sensors, actuators, and controllers, enabling flexible and diverse system integration.​

• Intelligent Diagnosis and Maintenance: It has a built-in comprehensive fault diagnosis system that monitors the operating status of each channel, signal transmission quality, and hardware health in real-time. When abnormalities such as parameter overrun, signal interruption, and hardware failure occur, it can quickly locate the fault point and feedback information to the host computer through LED indicator lights, alarm codes, and communication interfaces. This facilitates technicians to troubleshoot and repair faults in a timely manner, effectively reducing downtime.​

• Input/Output Specifications: The analog input supports 4 independent channels, with an input range covering standard signals such as 4 - 20mA and 0 - 10V, and an input impedance ≥ 10MΩ. The analog output also has 4 channels, with output signals of 4 - 20mA or 0 - 10V. There are 4 digital input and output channels each, supporting dry contact and TTL level signals, meeting the diverse needs of industrial signal interaction.​

• Communication Interfaces: It is equipped with an Ethernet interface and an RS-485 interface. The Ethernet interface supports protocols such as Modbus TCP and Profinet, with a transmission rate of up to 10/100Mbps. The RS-485 interface supports the Modbus RTU protocol, facilitating high-speed and stable data interaction and remote control with PLCs, DCS systems, host computers, etc.​

• Processing Performance: Equipped with a high-performance processor, it has a fast data processing speed, and the shortest control cycle can reach 10ms. It can quickly respond to external signal changes and execute control commands, ensuring the real-time and accuracy of control.​

• Working Environment: The operating temperature range is -25°C to 70°C, and the relative humidity is 5% - 95% (non-condensing). Having passed strict EMC electromagnetic compatibility tests and industrial-grade environmental tests, it has excellent anti-electromagnetic interference, anti-vibration, and anti-shock capabilities and can operate stably in harsh industrial fields.​

• High Reliability and Stability: Using industrial-grade components and redundant design, key circuits have a fault self-recovery function. It can maintain basic control functions even when some hardware fails, with a Mean Time Between Failures (MTBF) of more than 100,000 hours, ensuring long-term stable operation of the system.​

• Flexible and Scalable: The modular design allows users to flexibly configure channel functions, adjust control parameters according to actual needs, and can also be extended and connected with other devices or modules through communication interfaces, easily adapting to industrial automation projects of different scales and complexities.​

• Convenient Operation and Management: It supports parameter configuration, program downloading, and online debugging through dedicated software. The intuitive operation interface reduces the threshold of use. At the same time, it provides remote monitoring and management functions. Operators can view the operating status of the control card in real-time and adjust parameters, improving equipment management efficiency.​

• Chemical Production Process Control: In the coordinated temperature control of chemical reactors, precise regulation of multi-pipeline flow, and stable pressure control of distillation columns, it realizes precise control of multiple key process parameters, ensuring the stability of the chemical production process and product quality.​

• Energy Management Systems: Applied in scenarios such as multi-loop temperature and pressure control of boilers in power plants, multi-zone temperature regulation of heating systems, and monitoring and control of electrical parameters in smart grids, it improves energy utilization efficiency and helps with the intelligent management and energy conservation and emission reduction of energy systems.​

• Metallurgical Industry Automation: It plays an important role in the multi-parameter control of temperature and composition of metallurgical furnaces, the coordinated control of multiple links in continuous casting machines, and the precise control of speed and tension in rolling production lines, improving the automation level and product quality of the metallurgical production process.​
•
•

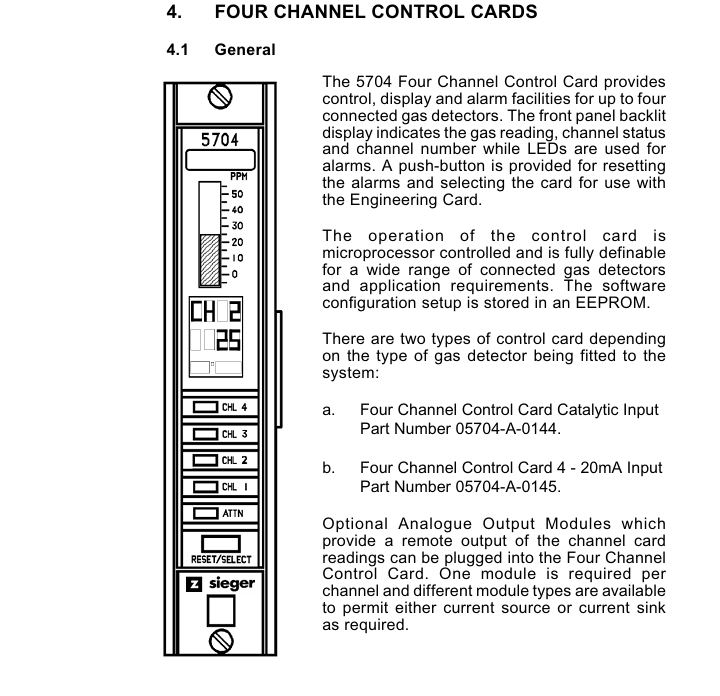

• The structure and details of the product：
•
• Please make an inquiry for more models
