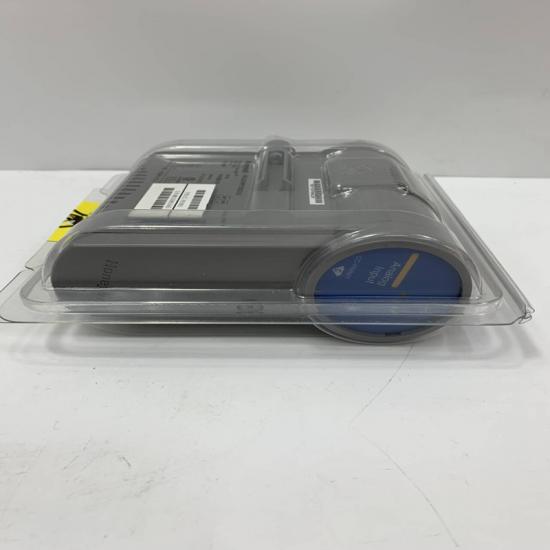

HONEYWELL CC-PAIN01 Analog Input Module

• High-precision Signal Acquisition: Equipped with 8 independent analog input channels, it supports a variety of standard analog signal inputs, including 4 - 20mA, 0 - 10V, ±10V, etc., and can be adapted to various industrial sensors. Using a 24-bit high-precision A/D converter, the conversion accuracy reaches ±0.1%, which can precisely capture subtle changes in analog signals and ensure the accuracy of collected data.​

• Signal Conditioning and Processing: It has a built-in signal conditioning circuit that can filter, amplify, linearize, and process input signals, effectively suppressing noise interference and improving signal quality. It also supports signal disconnection detection and over-limit alarm functions. When abnormal signals are detected, it can issue alarms in a timely manner to ensure the safe operation of the system.​

• Flexible Configuration and Communication: It supports parameter configuration through software tools. Users can flexibly set input signal types, range limits, filter time constants, and other parameters according to actual needs. The module is equipped with standard industrial communication interfaces and supports communication protocols such as Modbus TCP and Profinet, enabling high-speed and stable data communication with PLCs, DCS systems, host computers, etc., and realizing remote monitoring and data transmission.​

• Input Specifications: The analog input channels support isolated input, and the isolation voltage between channels is up to 500V AC. The input signal types cover 4 - 20mA, 0 - 10V, ±10V, etc., and the input impedance is ≥10MΩ, ensuring the stability of signal acquisition.​

• Conversion Performance: The A/D conversion resolution is 24 bits, the conversion time is less than 5ms, and the sampling frequency can reach up to 1000Hz, which can quickly and accurately convert analog signals into digital signals, meeting the requirements of industrial application scenarios with high real-time performance.​

• Communication Interfaces: It is equipped with Ethernet and RS-485 interfaces. The Ethernet interface supports protocols such as Modbus TCP and Profinet, with a transmission rate of up to 10/100Mbps. The RS-485 interface supports the Modbus RTU protocol, making it convenient to communicate and connect with different devices.​

• Working Environment: The operating temperature range is -40°C to 70°C, and the relative humidity is 5% - 95% (non-condensing). Having passed strict EMC electromagnetic compatibility tests and industrial-grade environmental tests, it has excellent anti-electromagnetic interference, anti-vibration, and anti-shock capabilities and can operate stably in harsh industrial fields.​

• High Reliability and Stability: Using industrial-grade components and redundant design, the key circuits have a fault self-diagnosis function, which can monitor the operating status of the module in real-time. When a fault occurs, it can quickly locate the problem and issue an alarm through indicator lights and diagnostic codes, ensuring the continuous and stable operation of the system and reducing downtime.​

• Easy Installation and Maintenance: It adopts a standard 35mm DIN rail installation method, and the installation process is simple and quick. The modular design makes it easy to disassemble and replace. With intuitive status indicator lights and detailed diagnostic information, it is convenient for operators to carry out daily maintenance and troubleshooting, reducing maintenance costs.​

• High Cost-effectiveness: While providing high-precision analog signal acquisition, this module optimizes the hardware design and production process, with high cost-performance. It is suitable for various industrial automation projects, helping enterprises effectively control costs while ensuring the quality of data acquisition.​

• Chemical Production Process Control: In the temperature monitoring of chemical reactors, pipeline pressure regulation, liquid flow measurement, and other aspects, it accurately collects analog data, providing reliable data support for the automated control and optimization of chemical production processes and ensuring production safety and product quality.​

• Power System Monitoring: Applied in power facilities such as power plants and substations, it collects real-time data of generator voltage, current, power, and other parameters, contributing to the stable operation and intelligent management of the power system and realizing precise monitoring and fault warning of power parameters.​

• Metallurgical Industry Automation: In scenarios such as temperature control of metallurgical furnaces, rolling force monitoring, and liquid level detection, it collects key analog data, providing accurate information for the automated control and quality monitoring of the metallurgical production process and improving production efficiency and product quality.​

The structure and details of the product：
